Bar-end mirrors have become one of the most popular motorcycle mirror upgrades in recent years. Riders often choose them for their clean appearance and improved visibility—but when installed incorrectly, bar-end mirrors can introduce safety risks, excessive vibration, or even handlebar damage.
This guide explains what bar-end mirrors are, how to check rear visibility, how different mounting systems function, and how to install them safely. It also compares upward and downward mounting, explains tank and control clearance checks, and links to KiWAV mirrors with different mounting requirements.
Quick Answer: How Do You Install Bar-End Mirrors?
Installing bar-end mirrors typically involves three steps:
- Remove the factory bar-end weight or plug
- Install the mirror using a clamp, threaded mount, or expansion adapter
- Adjust mirror angle and tighten to the correct torque
Always ensure:
- The throttle rotates freely
- Mirrors clear the fuel tank at full steering lock
- Mounting hardware matches the handlebar diameter
Can You See with Bar-End Mirrors Mounted Downward? Visibility, Tank Clearance and Fitment
Downward-mounted bar-end mirrors can provide a usable rear view, but they are not automatically clearer than upward-mounted mirrors. Mirror shape, handlebar width and height, your build, and your riding position all affect what you can see. Even when a mirror supports downward mounting, you need to check visibility and clearance on your own motorcycle.
With the motorcycle stationary and securely supported, wear your usual riding gear and adjust both mirrors from your normal riding position. Compare whether your arms, gloves or knees block the rear view, and whether you can check behind without substantially shifting your body.
Upward vs. Downward Mounting
| Check | Upward | Downward |
|---|---|---|
| Rear view | Check how much of your shoulders and arms appear in the mirror. Adjust height and outward position. | You may see beneath your arms, but forearms, gloves or knees can also obstruct the view. |
| Eye movement | Check how naturally you can move your gaze from the road ahead to the mirror. | The lower mirror position may require looking further down. Avoid a position that requires an awkward head movement to see behind. |
| Bodywork clearance | Check the windshield, handguards and lever area. | Pay particular attention to the tank, fairings and your knees. Check throughout the steering movement as well as at full lock. |
| Control space | Both arrangements must leave room to operate the brake, clutch and throttle with gloves on. | |
| Overall width | Direction alone does not determine width. Check the actual projection of the arms and mirror housings. | |
See the upward and downward mounting examples. These images illustrate mounting direction; they are not a rider-eye visibility comparison or proof of fitment on a particular motorcycle.
Five Checks Before Mounting Mirrors Downward
- Mirror and hardware: Confirm that the mirror supports downward installation. For expansion mounts, check the internal diameter and insertion space. For threaded mounts, check thread diameter, pitch and usable depth. For clamp-on mounts, check the outside diameter and width of the mounting surface.
- Both rear views: With the motorcycle stationary and securely supported, sit normally with both hands on the grips. Check both mirrors; a clear view on one side does not compensate for an obstructed view on the other.
- Tank and bodywork: Slowly turn the handlebars left and right. Check the housing, arm and hardware throughout the movement and at full lock. Stop before any part touches the tank or bodywork, then revise the position.
- Hands, knees and controls: Wear gloves and operate the levers, checking for trapped fingers or restricted hand movement. Check knee clearance. With the engine off, confirm that the throttle moves and returns freely at different steering positions.
- Final tightening: Follow the mirror and motorcycle installation instructions, then repeat the visibility, control and full-lock checks. If a spacer is needed, confirm its suitability and the bolt engagement. Do not leave bolts loose to create clearance.
When Is Downward Mounting Unsuitable?
- Your arms, hands or knees still obstruct the rear view after adjustment.
- You need to move your torso substantially or lower your head awkwardly every time you check behind.
- You cannot use the full steering range without contacting the tank or bodywork.
- The mirror restricts lever operation or throttle movement and return.
- Secure installation would require unsuitable hardware or inadequate thread engagement.
In these situations, try upward mounting or a different arm shape or mounting system. Preserve the motorcycle's required control movement when choosing a mirror position.
KiWAV Mirrors with Downward Mounting Support
The product descriptions below confirm support for upward and downward installation. This does not mean that rear visibility and tank clearance have been measured on your particular motorcycle. Check the linked product's mounting requirements and dimensions before ordering.
| Product | Mounting requirements | Check before ordering |
|---|---|---|
| Bob Black — 7/8-Inch Hollow Handlebar Version | For hollow handlebars with a 7/8-inch outside diameter. Supported internal diameters: 14.5–15.7 mm or 17.5–20.4 mm. The product description supports both mounting directions. | These are two separate ranges, not one continuous range. Contact KiWAV if your measurement falls outside them. This version is not suitable for electronic throttle control (ETC). Grip-clearance spacers may be needed and are not included. |
| Leap Black — M8 Threaded Handlebar Pair | For handlebars with an M8 internal thread at the bar end. Supports upward and downward installation. Its movable joints make it easy to adjust the mirror angle to your riding position. | Check pitch, bolt length and the mounting face as well as the M8 diameter. Check tank clearance when mounted downward and confirm any spacer requirements. Assess mirror size and certification separately from the actual rear view. |
| Orbii Bar-End Mirror Series | The series description supports upward and downward installation. Multiple mounting versions are available. | Select the appropriate Fitment option, then inspect that version's hardware, dimensions and use conditions. A series name or motorcycle model alone does not establish fitment. |
How to narrow the choice: Check the Bob version above if you have a 7/8-inch hollow bar within its stated internal-diameter ranges. For M8 threaded bar ends and convenient angle adjustment, compare Leap. For another mounting version or design, explore the Orbii options. In every case, assess the available rear view and control space on your motorcycle before purchase.
Mirror size, certification and visibility are separate checks. A compact mirror can offer a useful rear view when its adjustment range lets you position it well. A clear view alone does not establish road-use or inspection compliance. Check the product's stated use conditions and the requirements applicable to your motorcycle and location.
If you are unsure about the mounting system, use the bar-end mirror fitment guide. When asking for help, include the motorcycle model and year, whether the handlebars are original or aftermarket, photos of both bar ends with the end weights removed, your measurements, and your preferred mounting direction.
What Is a Bar-End Mirror?
A bar-end mirror is mounted at the outer end of the handlebar, rather than on the mirror seat or control perch. This change in position alters both the mechanical behavior of the mirror and the rider's rearward field of view.
Advantages of Bar-End Mirrors
- Wider rearward visibility: An outboard position can reduce shoulder and arm obstruction. The actual view depends on mirror shape, position and riding posture.
- Clean appearance: Creates a lower, more aggressive silhouette by clearing the cockpit of upright mirrors.
- Flexible mounting position: Most mirrors allow for four-way positioning (Up, Down, Inward, Outward) to match the bike's specific geometry and style.
Limitations and Trade-Offs
- Installation Precision: Improper mounting can lead to mirror rotation or throttle binding.
- Handlebar Compatibility: Must be matched to the specific internal or external diameter of your bars.
- Increased Total Width: Can impact "lane splitting" or storage in tight spaces unless foldable designs are used.
- Tank Interference: Downward-mounted mirrors may contact the fuel tank at full steering lock on some models.
- Ergonomic Clearance: Sufficient space must be maintained for gloved hands to operate controls without interference.
Bar-End Mounting Systems: Complete Classification
Not every motorcycle is ready for a "plug-and-play" bar-end installation. Bikes equipped with heated grips, electronic throttles (Ride-by-Wire), or handguards may require specific adapters or modifications. Compare the selected mounting hardware with your actual handlebar construction before buying.
Understanding your specific mounting system is the key to long-term stability and safety.

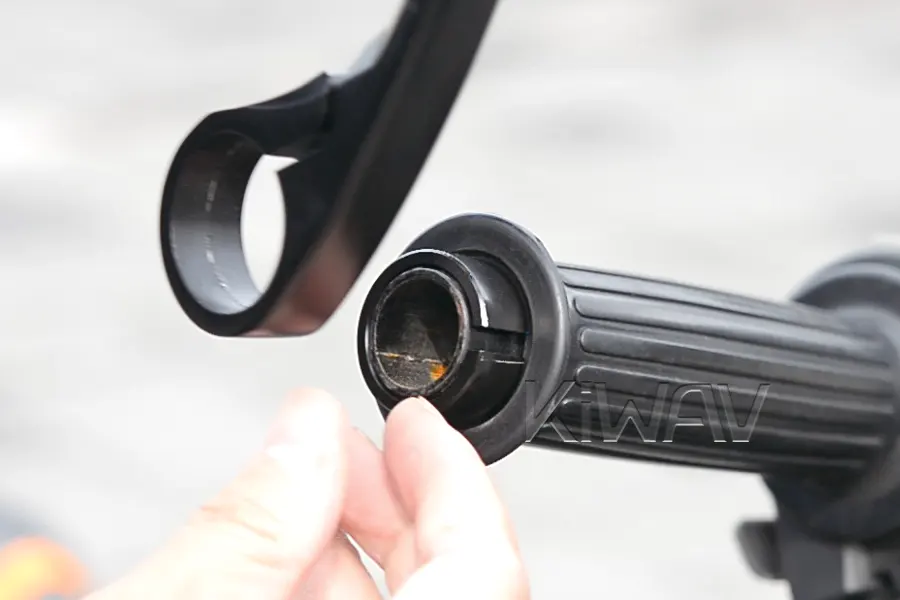

A. Clamp-On Mounting
This system attaches externally to the handlebar end using a reduction ring or sleeve.
Characteristics:
- No need to remove internal components.
- Ideal for bikes with solid bars or those where internal access is restricted.
- Requires precise fitment of the reduction ring to prevent slipping.
B. Threaded Mounting
This system screws directly into the internal threads already present in many OEM (factory) handlebars.
Characteristics:
- Requires factory-threaded bars or adapters.
- OEM weights may need removal or replacement.
- Some models require dedicated adapters.
- Improper removal can damage internal threads.

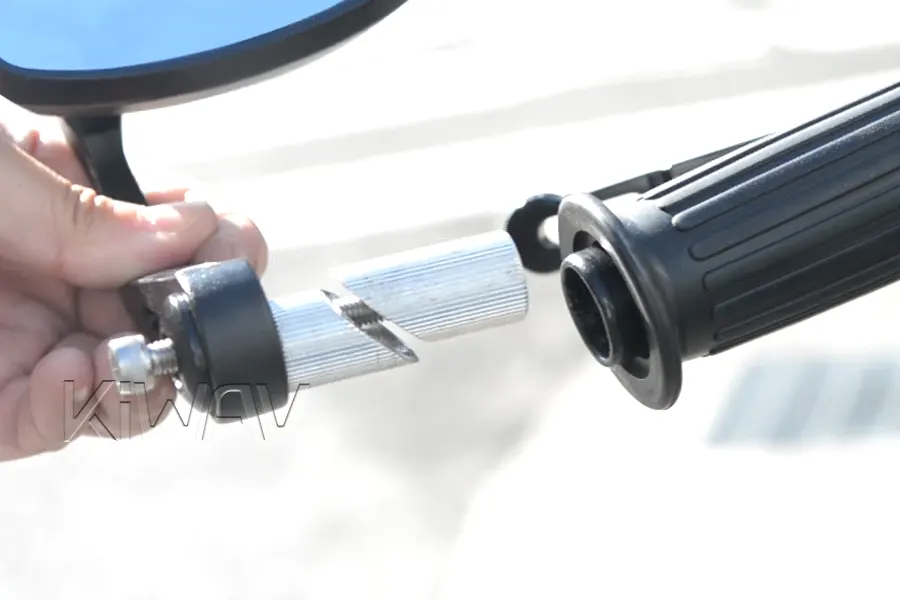

C. Expansion Components Systems
The most versatile and common universal mounting method for hollow handlebars.
Characteristics:
- Only work on hollow-core bars (7/8" or 1").
- Wide compatibility.
- Strong resistance to rotation when properly installed.
Compatibility Checklist
Before purchasing bar-end mirrors, check these factors:
1. Handlebar Inner Diameter
The supported internal diameter varies by product and expansion hardware. Compare the measured internal diameter at the mounting area with the specific product ranges; outside diameter alone is not enough.
2. Factory Bar-End Weights
Some motorcycles use threaded inserts that require specific mirror adapters.
Before removing or replacing the original weights, see what motorcycle bar-end weights do and why a different weight can change vibration at the grips.
3. Ride-By-Wire Throttle Tubes
Modern electronic throttles often extend to the end of the handlebar, leaving very little installation space.
4. Heated Grips
Heated grip wiring can block internal expansion mounts.
5. Handguards
Adventure bikes may require handguard-compatible mirrors or offset mounts.
Working through this checklist is easier with concrete examples in front of you. This comparison of 2026 bar-end mirrors by bike type includes a quick-reference table showing which models use threaded, bolt-on, or clamp-on mounting and the bar sizes they fit, along with heavier options to compare. Vibration performance depends on the complete handlebar and mounting setup.

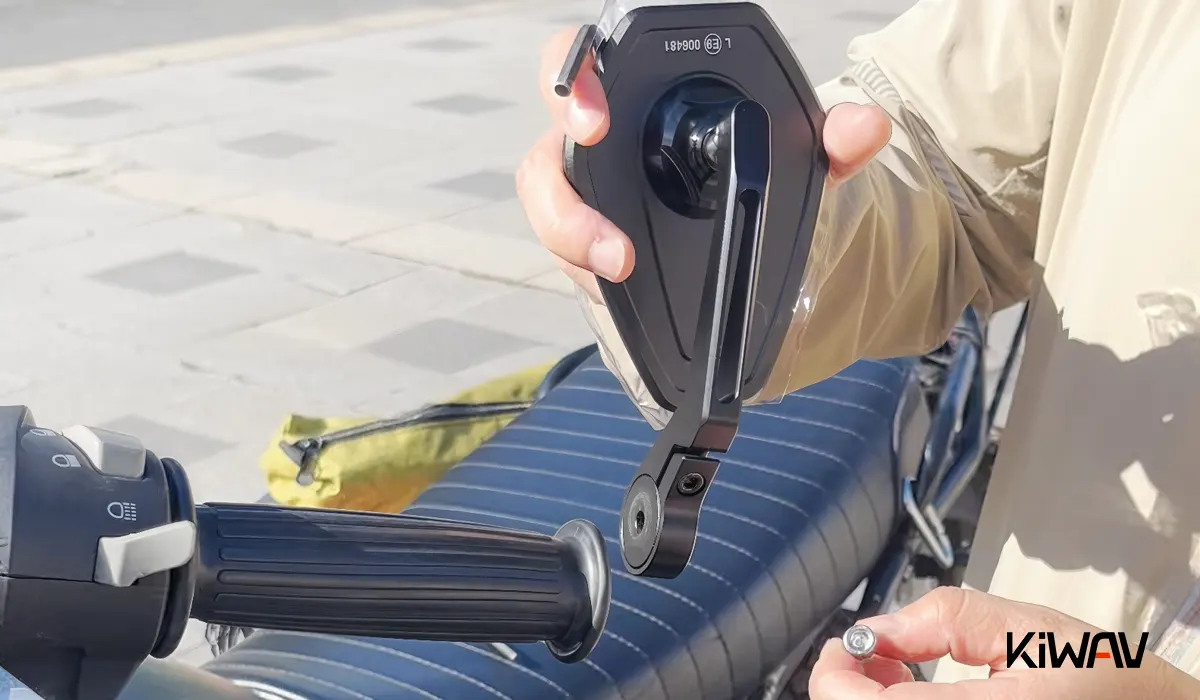

How to Install Bar-End Mirrors
Pre-Installation Checklist:
- Measure Your Bars: Confirm the outer and inner diameters to select the correct mounting hardware.
- Check Clearances: Determine if the mirror should be mounted Upward or Downward. Downward mounting may bring the mirror closer to the tank or your knees. Review the visibility and clearance checks before choosing a position.

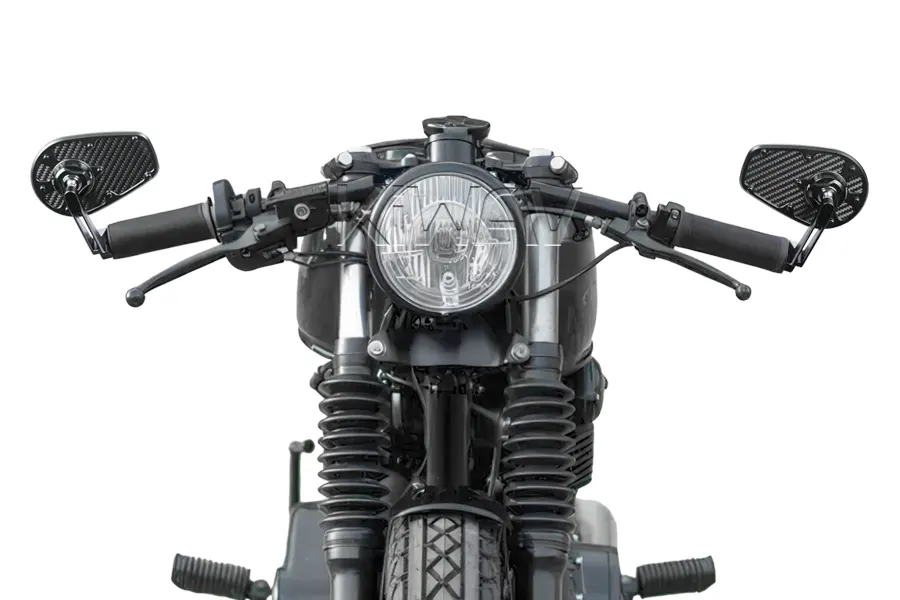

Upward
Downward
A. Installing Clamp-On Mirrors
Tool Needed: Allen key (Hex wrench), rubber mallet, thick cloth (rag).
Installation Steps:

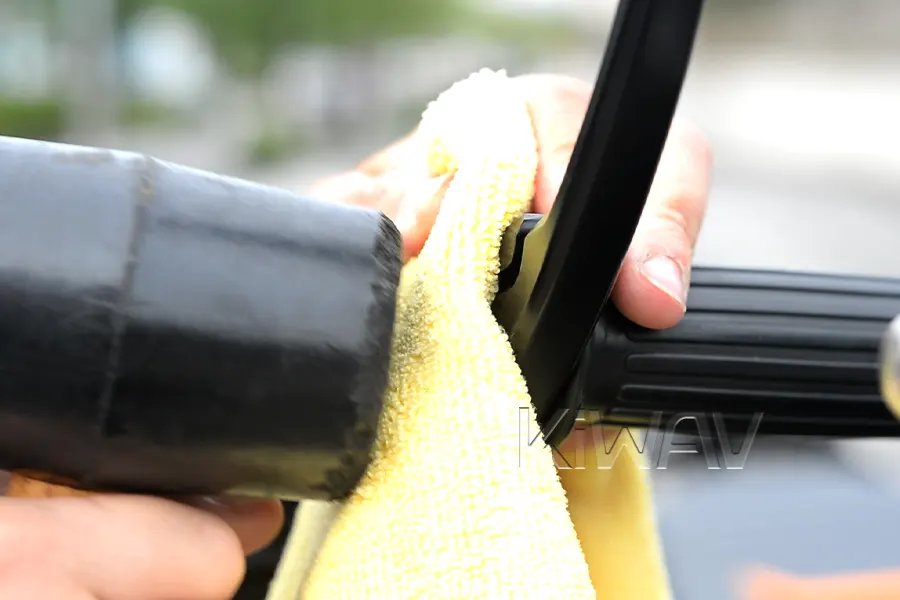

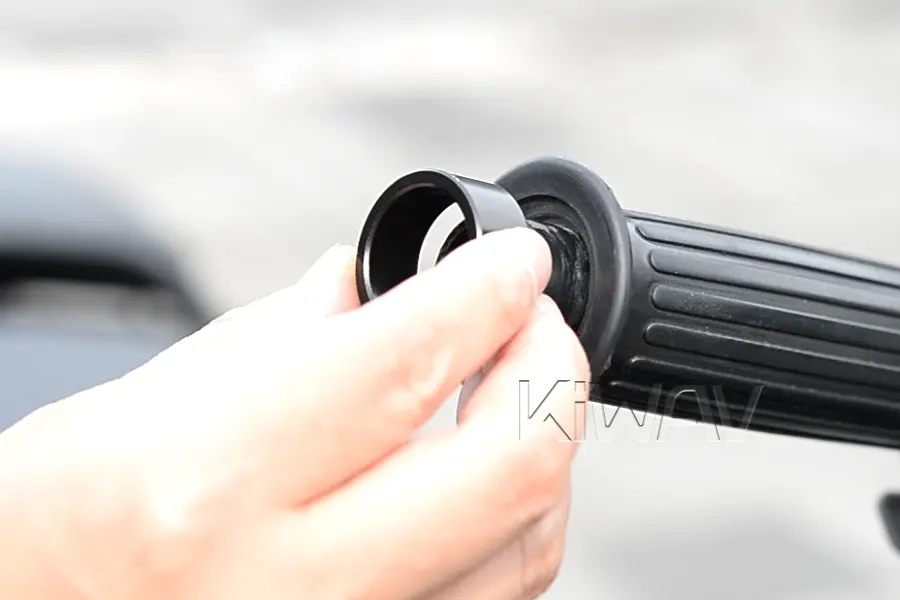

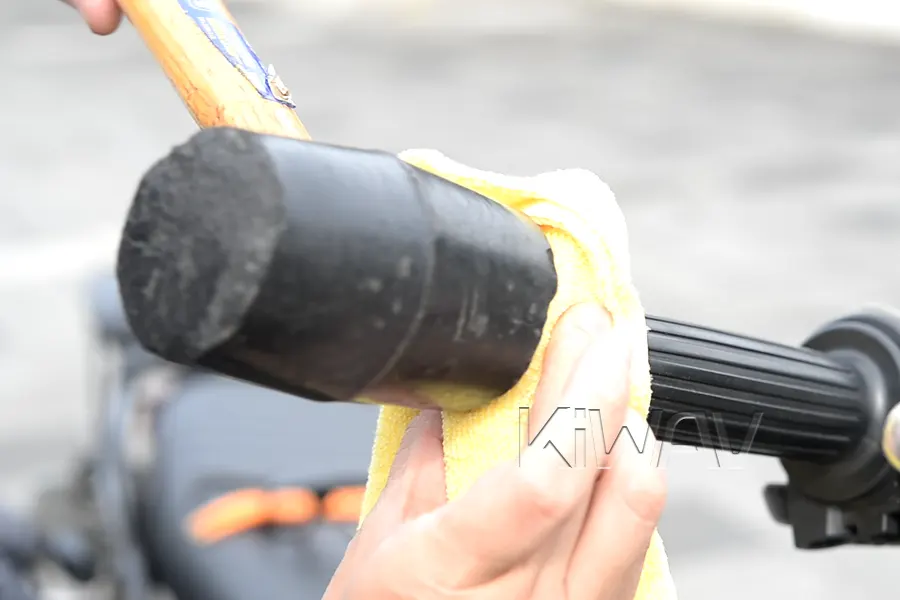

- Fit the Reduction Ring: Select the appropriate ring size. Use a rubber mallet with a thick rag over the part to protect the finish while tapping it onto the bar end.
- Position the Stem: Loosen the lock bolt on the mirror stem and put the mirror into the handlebar per the direction you desire.
- Alignment: Ensure the mirror is centered and positioned evenly, then gently tap it onto the reduction ring.

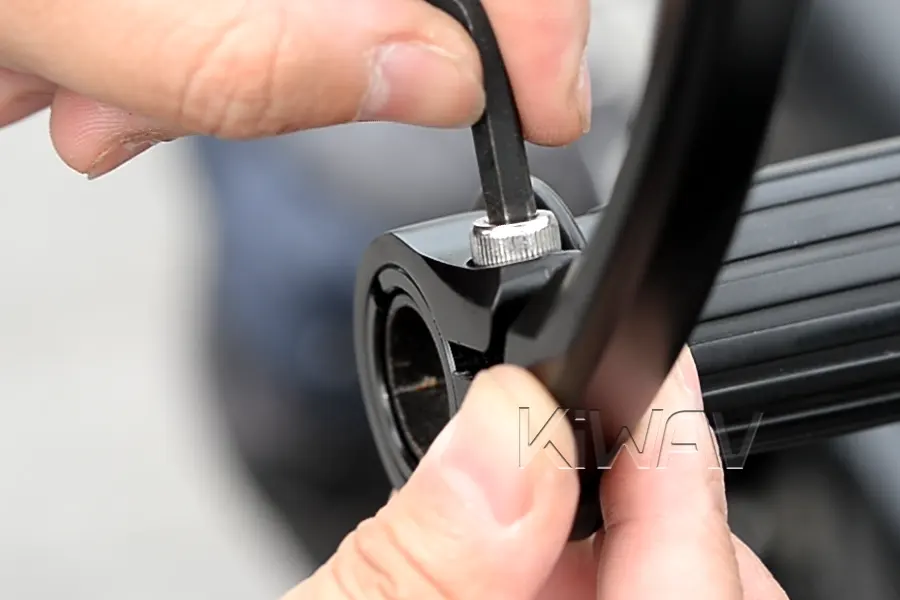

- Secure: Adjust the position of the mirror plate and stem, then tighten the lock bolt securely.
Visual Learner? Confused about the reduction ring? → Watch the step-by-step video: [Tutorial] How to Install a Clamp-on Bar End Mirror?
B. Installing Threaded Mirrors
Tool Needed: Allen key (Hex wrench).
Installation Steps:
- Identify Thread Pitch: Ensure your mirror bolt matches the internal threads of your handlebar.
Are you sure about your thread size? → Watch this video: 2 ways to identify your bolt size and thread

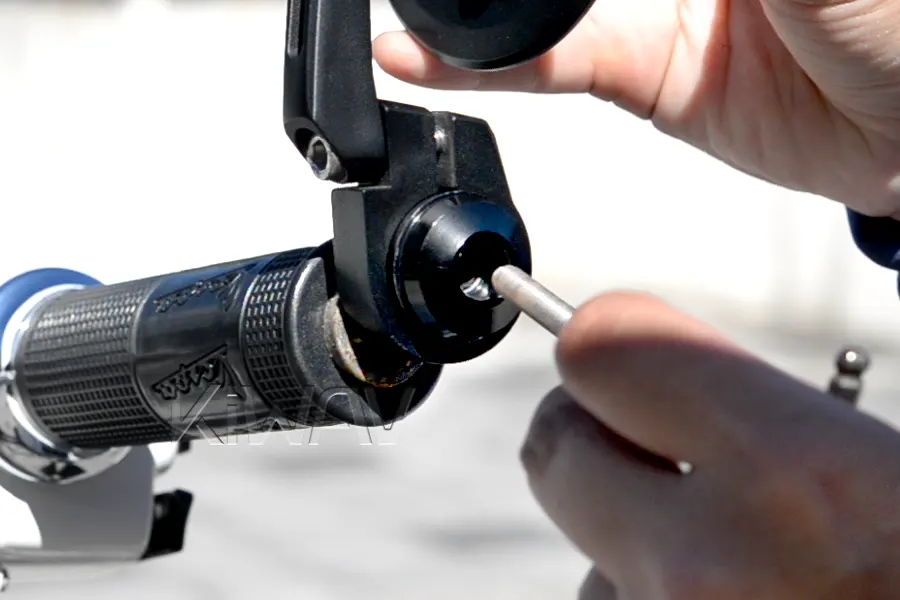

- Mounting: Put the mirror assembly into the handlebar per the direction you desire.

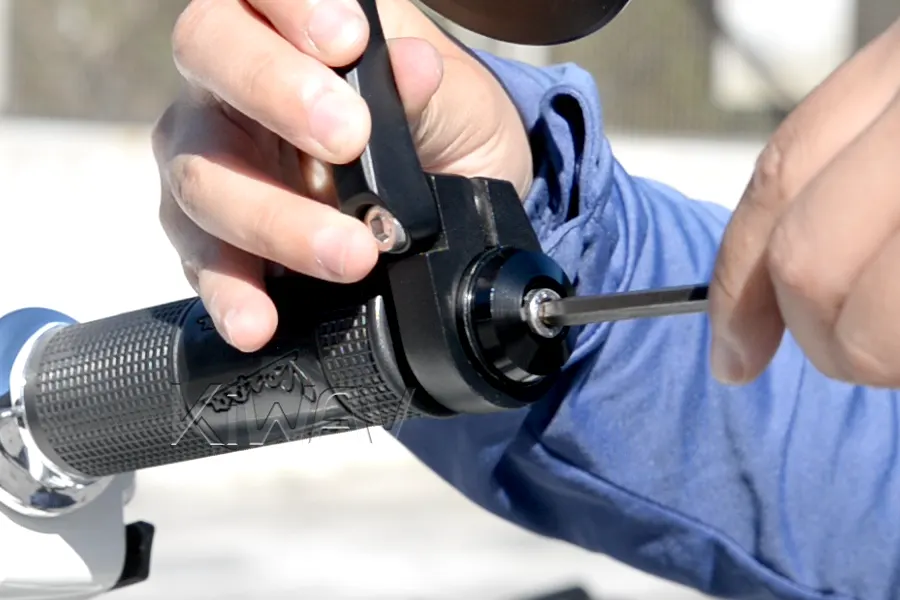

- Final Torque: Tighten the bolt to the manufacturer's recommended torque.

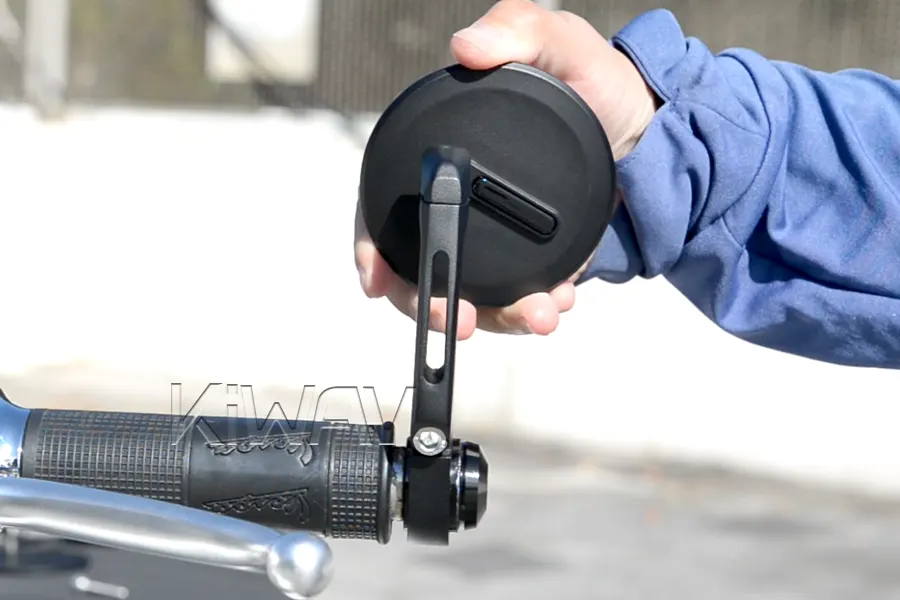

- Orientation: Adjust the position of the mirror plate and stem, then tighten the lock bolt securely.
C. Installing Expansion Systems
Tool Needed: Allen key (Hex wrench).
Installation Steps:

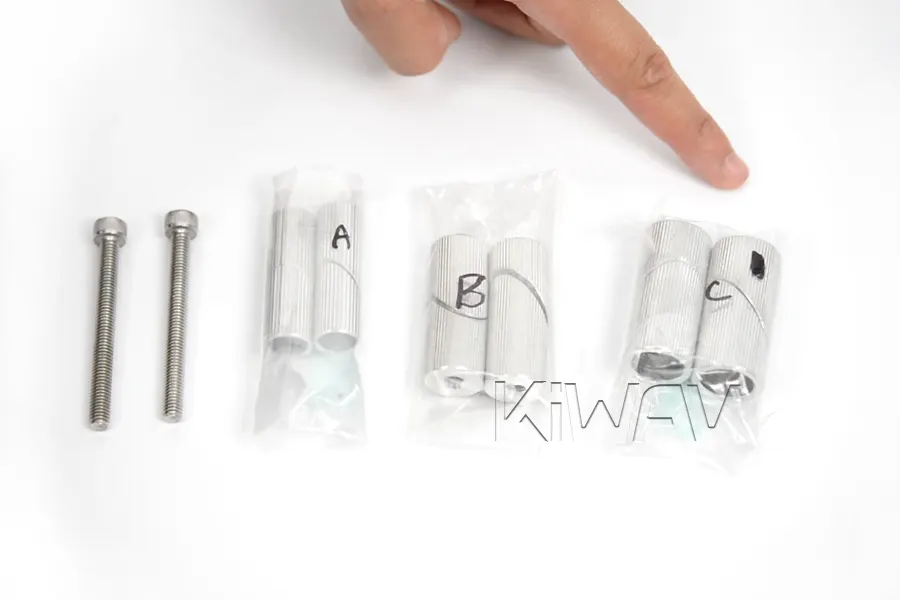

- Identify: Select the right set of expansion components that fit into the handlebar.

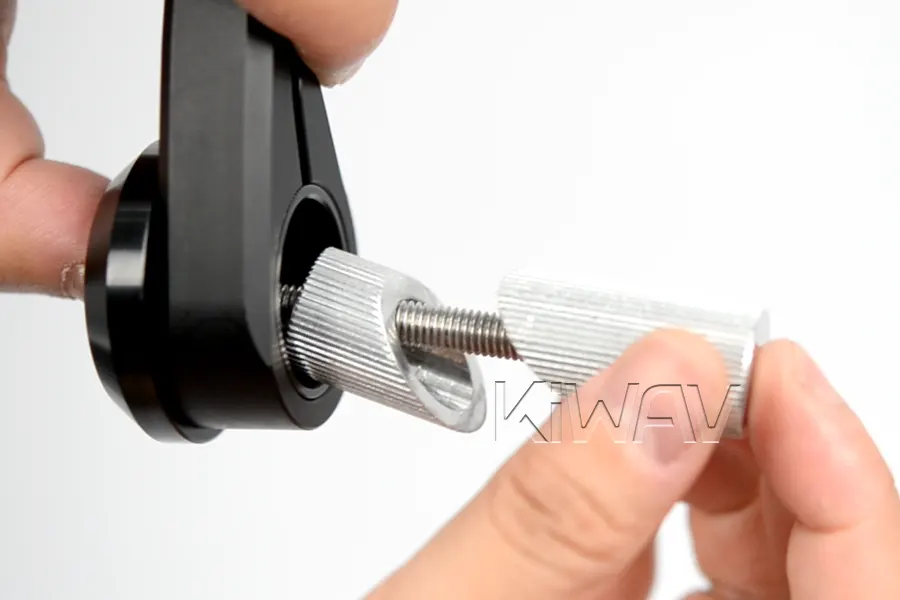

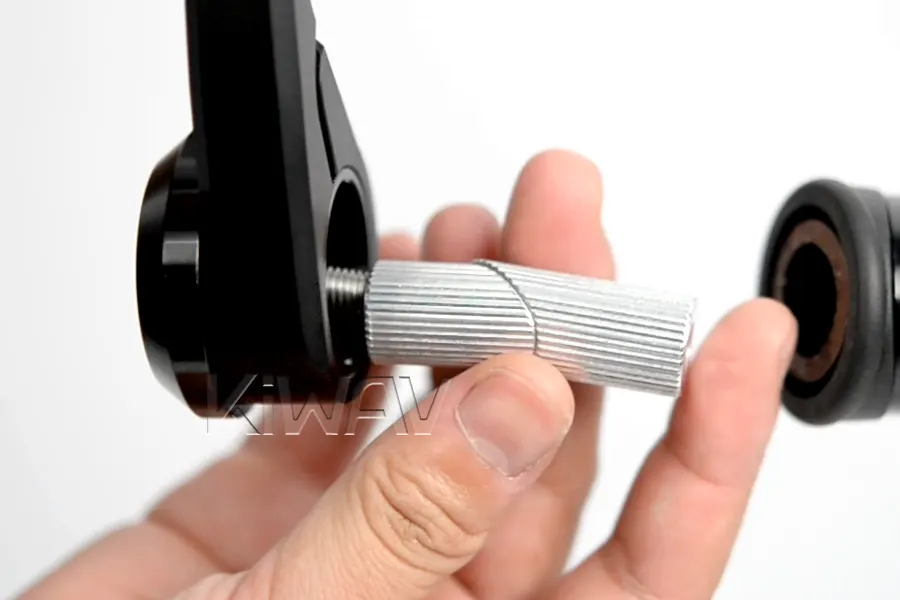

- Assembly: Assemble the expansion sleeves onto the bolt. Hand-tighten them slightly so the components stay together but can still slide into the bar.
- Insertion: Slide the expansion assembly into the hollow handlebar.
- Setting the Gap: Follow the product and motorcycle instructions for clearance between the grip and mount. The required gap depends on the construction; after final tightening, confirm that the throttle moves and returns freely throughout the steering range.

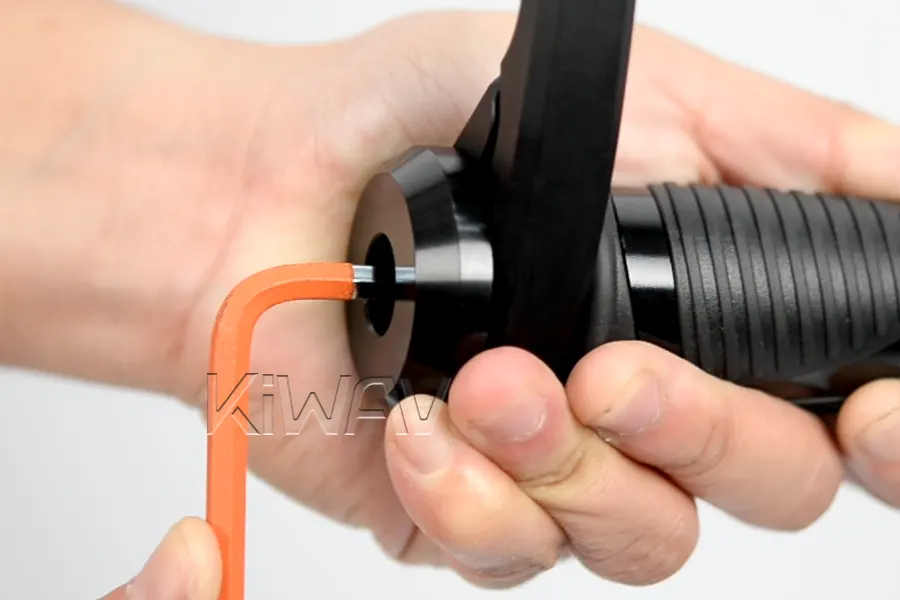

- Tightening: As you tighten the bolt, the internal components will expand and "bite" into the inner wall of the handlebar for a secure fit.
Visual Learner? Confused about the expansion sleeves? → Watch the step-by-step video: [Tutorial] How to Install Bar End Mirrors via Expansion System?

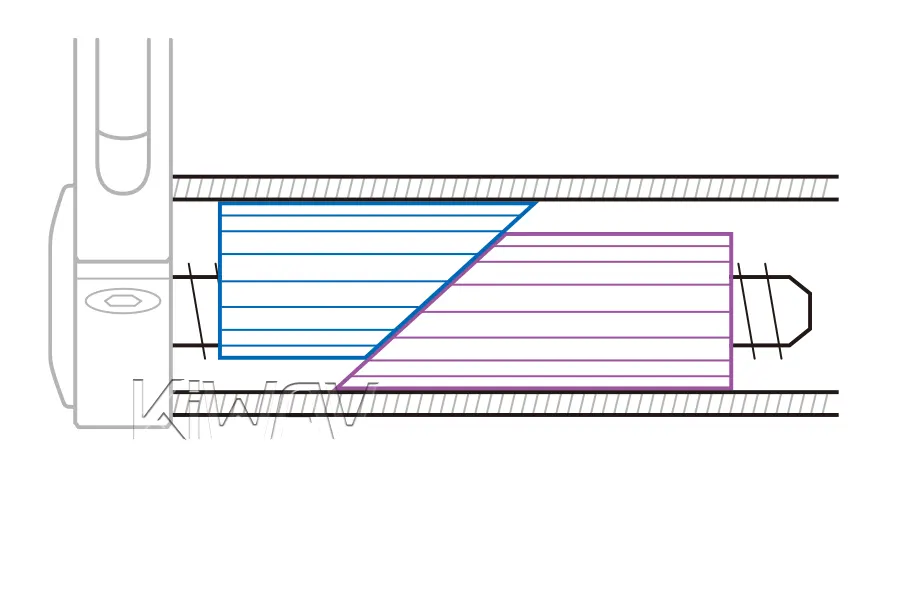

How the System Works:
When the bolt is tightened, the tapered cone pulls into the expansion sleeve.
This forces the sleeve outward against the inner wall of the handlebar, creating friction that locks the mirror assembly in place.
Check Steering Lock Clearance
After installation, always turn the handlebars fully left and right.
Verify that the mirrors do not:
- Touch the fuel tank
- Contact fairings
- Interfere with windshields
- Hit handguards
With downward mounting, the housing and arm may sit closer to the tank. Stop before contact and revise the position if necessary. Review the downward-mounting checklist.
A mirror that touches the tank can cause damage during parking maneuvers or low-speed turns.
Pro-Tips for a Perfect Setup
Angle Adjustment (Horizontal and Vertical)

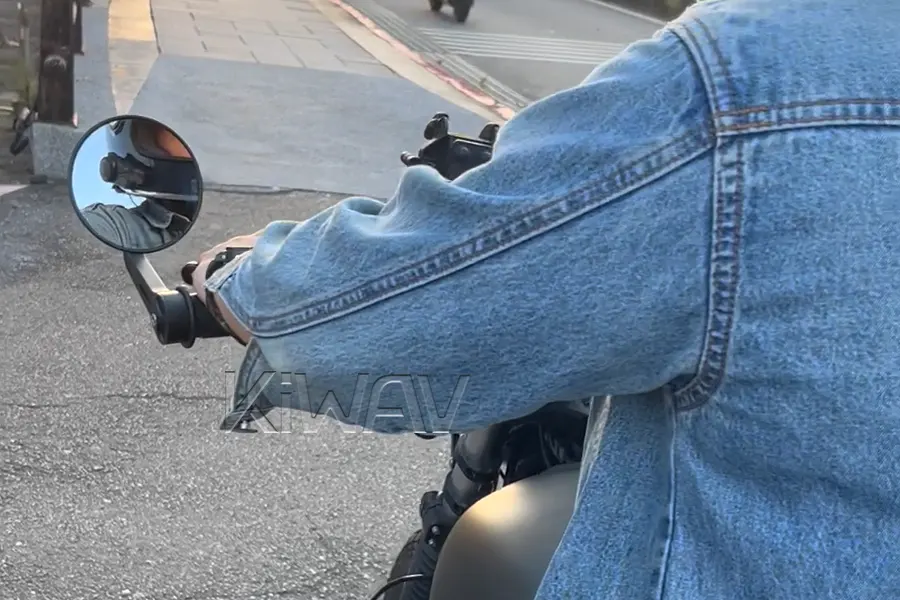

- Ergonomic Adjustment: Always sit on the bike in your actual riding position when setting final angles.

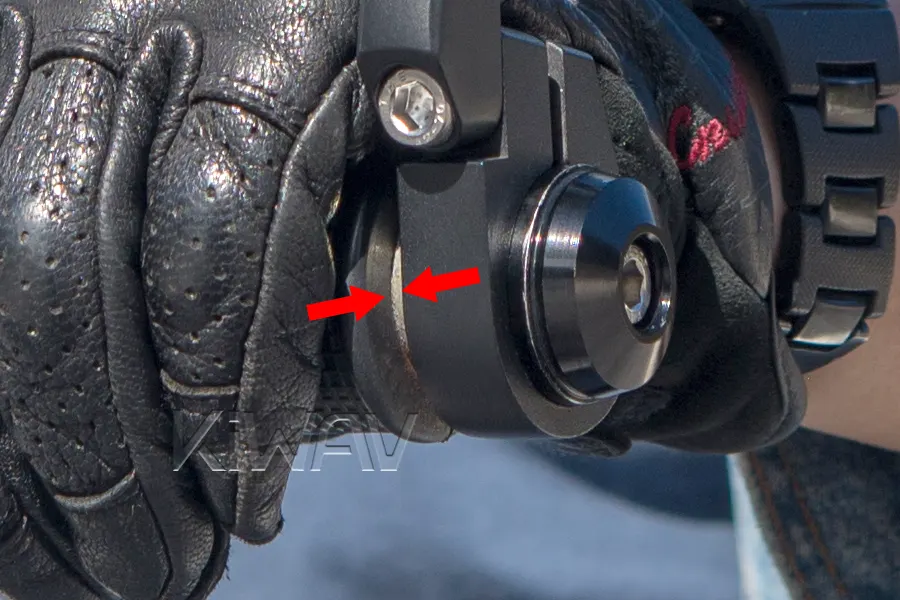

- Throttle Safety: Crucial! Always check that the throttle snaps back freely after installation. The mirror must not touch the rotating throttle grip.

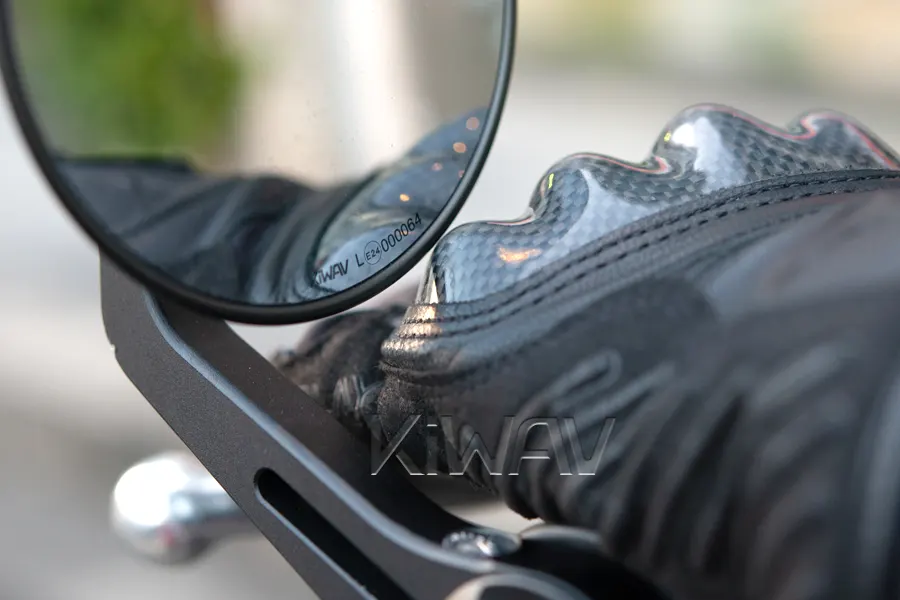

- Hand Movement: Adjust the vertical angle first by consider the mirror stem style to avoid interfere the hand movement while riding.
- Symmetry: Use visual reference points (like the levers) to ensure the left and right mirrors are aligned symmetrically to reduce visual fatigue.
Preventing Loosening Over Time
- Recheck after the first ride
- Avoid low-grade fasteners
Handlebar End Debris
If your motorcycle previously used bar-end weights, check inside the handlebar for:
- Thread locker residue
- Corrosion
- Leftover expansion plugs
Clean the interior before installing a new expansion mount to ensure proper grip.
Common Mistakes to Avoid
Incompatible Bolts or Expansion Components
Forcing a bolt with the wrong thread pitch into a threaded bar will permanently strip the internal threads, requiring costly repairs. Similarly, expansion components must precisely match the internal diameter and wall thickness of the handlebar; a mismatched sleeve will never achieve a secure mechanical bond.
Low-Quality Expansion Sleeves
Inferior, generic sleeves often use softer alloys or plastics that compress unevenly. Over time, this results in:
- Mirror Rotation: The mirror moves or "droops" at highway speeds or under wind pressure.
- Loss of Clamping Force: The assembly may vibrate loose, potentially falling off during a ride.
- Increased Vibration: A poor connection fails to dampen vibration, leading to a blurred reflection.
Over-Tightening and Handlebar Deformation
More torque is not always better. Applying excessive force to secure a loose fit can:
- Ovalize Aluminum Handlebars: Thin-walled bars can become deformed, making it impossible to install other bar-end accessories later.
- Damage Internal Coatings: Especially on carbon or high-end alloy bars, over-tightening can lead to stress fractures.
- Permanently Weaken the Bar Structure: Excessive clamping stress creates a failure point near the end of the bar.
Safety Warning: Loosening or other installation problems may develop over time. Follow the product and motorcycle inspection schedule, and recheck the mounting after the first ride. Retighten to the specified torque if needed.
Frequently Asked Questions
Q: Will bar-end mirrors always reduce vibration?
No. Vibration depends on the engine, handlebars, bar-end mass and mounting condition. Changing mirror direction alone does not guarantee a clearer image. Check the mounting and actual view on your motorcycle.
Q: Do I need to change my handlebar to install bar-end mirrors?
Not necessarily. Suitable hardware may allow installation on the original bars, but you must check the thread specification, internal diameter, internal components, throttle and handguard clearance for your setup.
Q: Will bar-end mirrors make my bike too wide?
Measure the actual width with the mirrors in their riding position. Mirror size, arm angle and mounting position all affect it. Folding may help with storage, but restore and check the rear view before riding.
Final Thoughts
Bar-end mirrors offer a way to change the appearance and rear view of your motorcycle. Whether mounted upward or downward, check the view from your actual riding position and choose a location that clears the controls and bodywork.
However, successful installation depends on selecting the correct mounting system and ensuring compatibility with your handlebars and controls.
Before ordering, compare the product mounting requirements. After installation, recheck rear visibility, throttle return and clearance throughout the full steering range.
