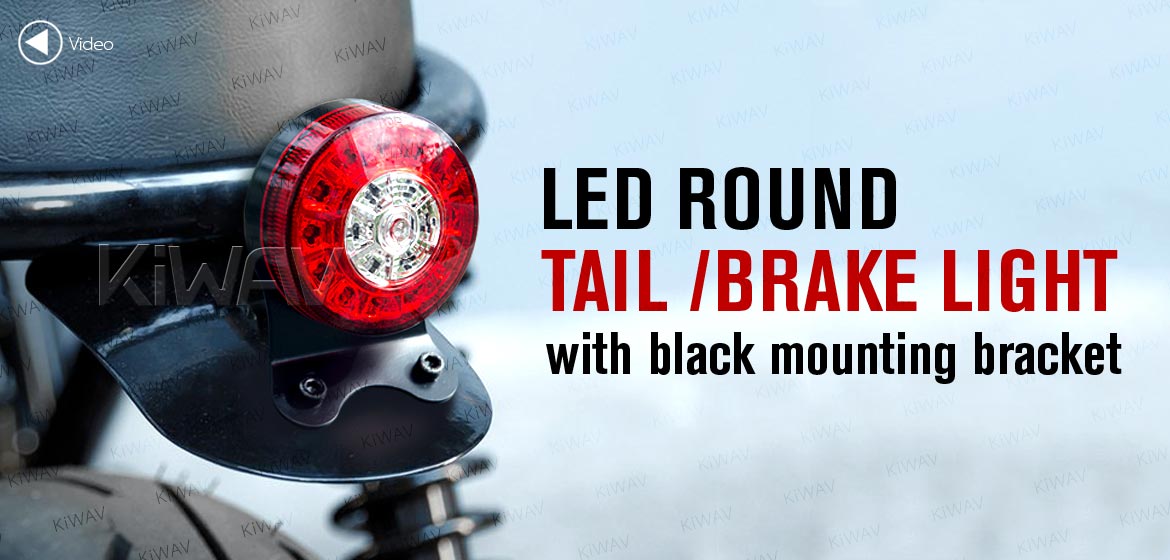

LED round tail light with black mounting bracket & caps
Description

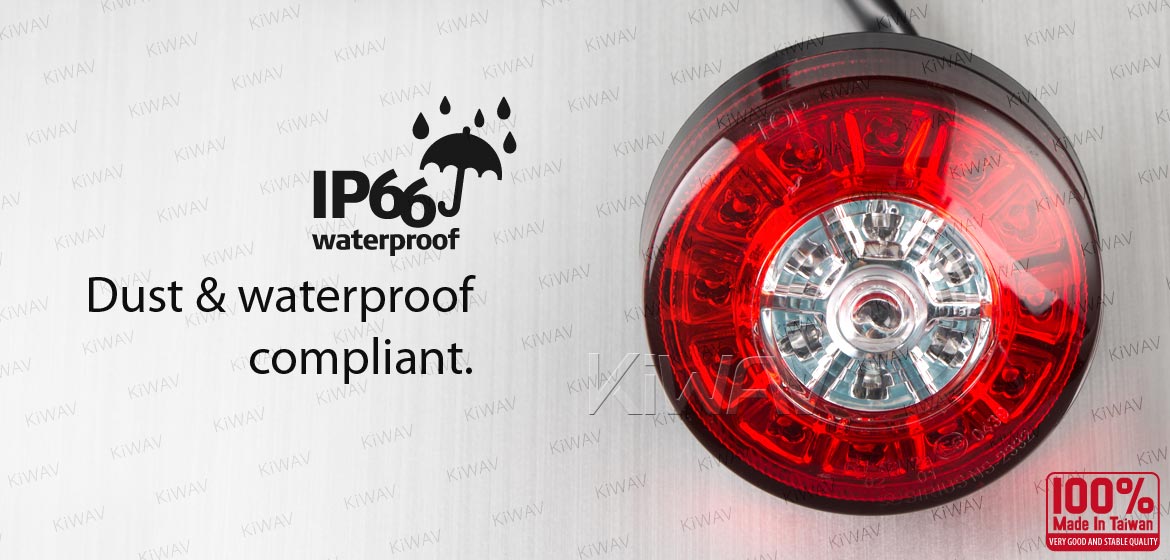

Sealed LED module with IP66 dust & waterproof compliant.
→ What does IP66 waterproof rating mean? IP6x is the highest dust resistance rating, so this product is fully protected against dust.
IPx6, the third-highest water resistance rating, means this product can withstand powerful water jets up to 3 mins from a distance of 3 meters, tested in laboratory conditions.
| Code | Effective against | Description |
|---|---|---|
| 6 | Dust tight | No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| Code | Protection against | Test duration | Description |
|---|---|---|---|
| 6 | Powerful water jets | 3 mins from a distance of 3 meters | Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction |
SPEC
- Feature

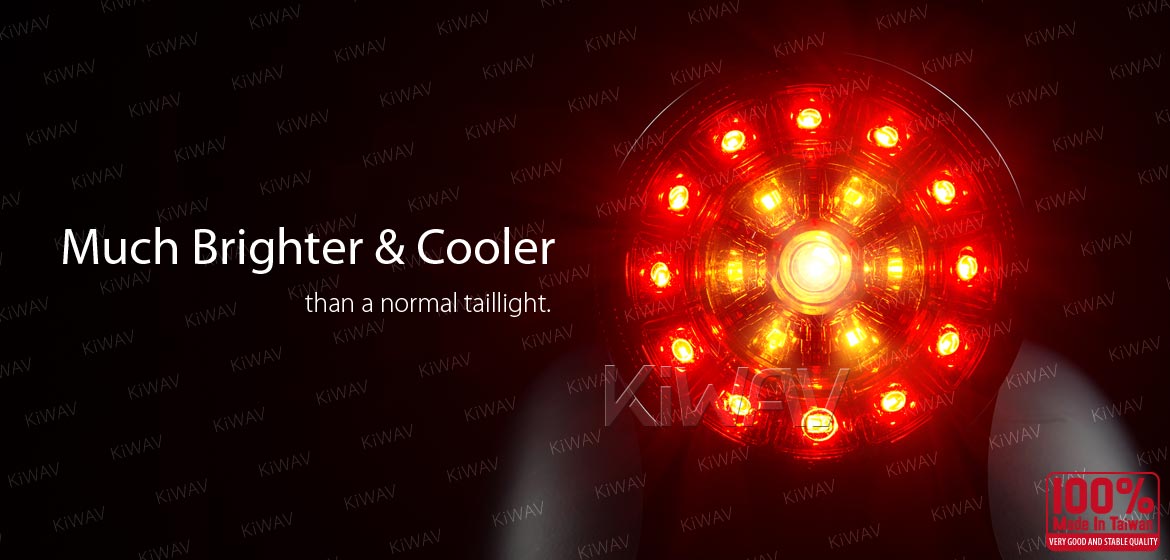

- Much brighter and cooler than normal taillight.

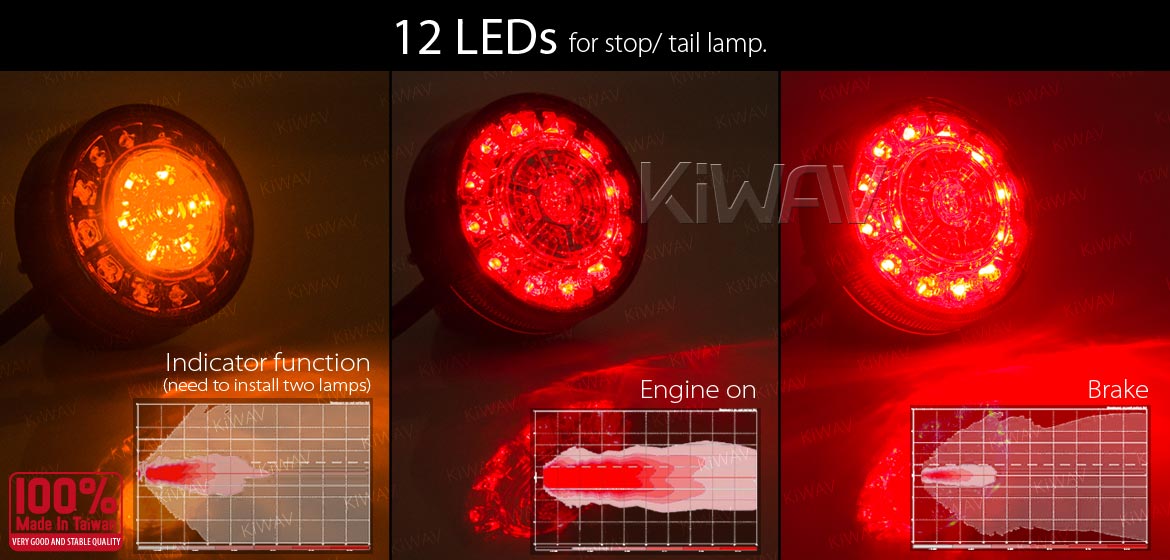

- 12 LEDs for stop/ tail lamp.
- IP66 dust & waterproof compliant*.
- Indicator function. (Need to install two lamps)

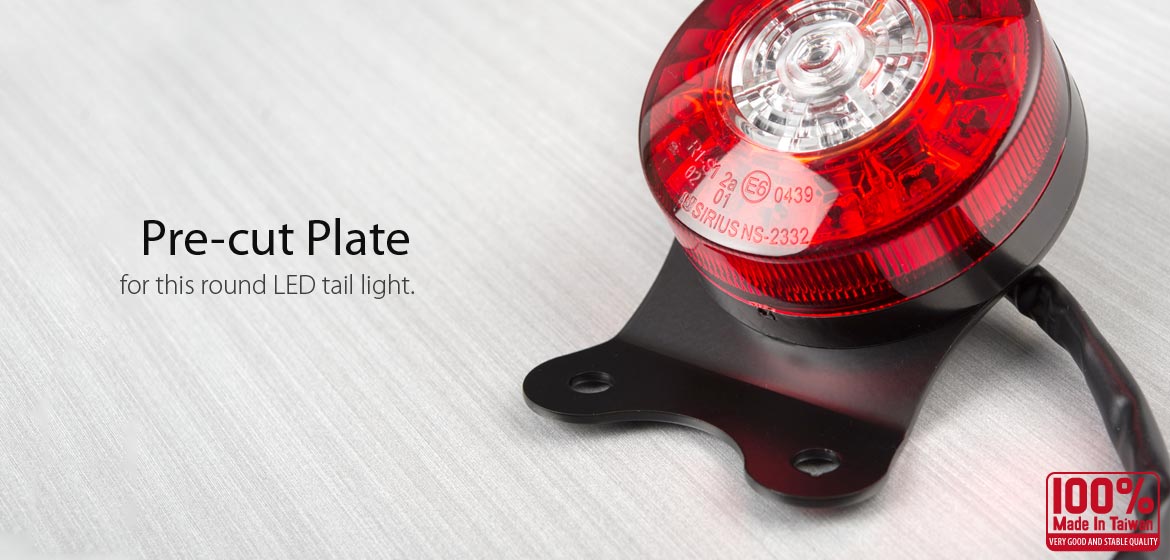

- Pre-cut plate for round LED tail light.
- Matte black powder coating finish for rust-resistance.
- This simple steel plate has feet any competent garage mechanic can bend with a torch and crescent wrench to fit the contours of his rear fender.
- Mounting bracket and nuts included.

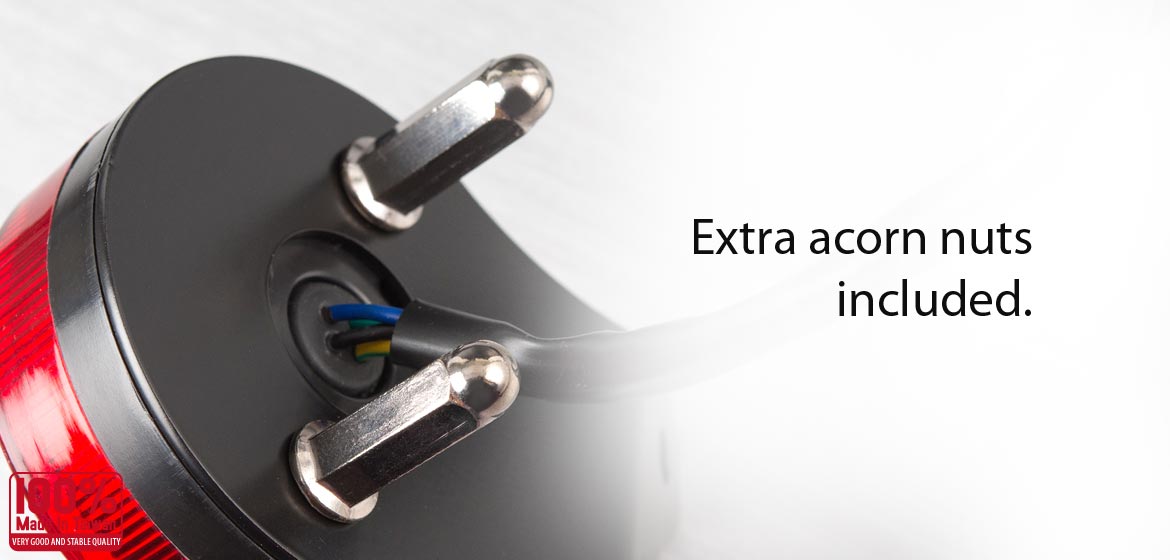

- Extra acorn nuts included.
- Material
Lens: Acrylic
Reflector, Frame: ABS
Bracket: Steel - Net Weight
267g - Package
SKU: 991968823322203

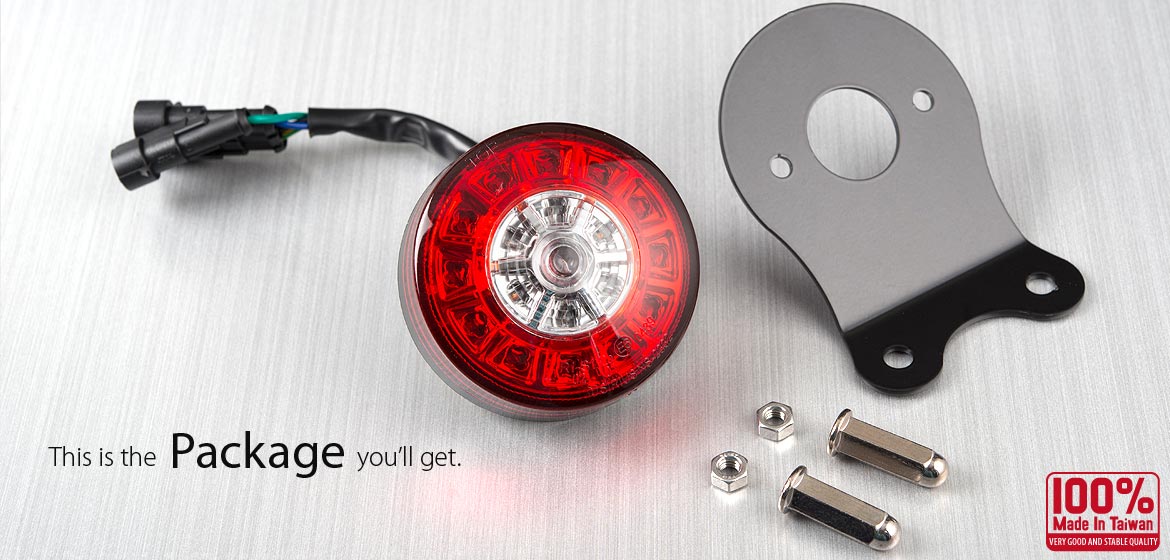

LED tail light x 1, matte black mounting bracket x 1, hex nut x 2, acorn nut x 2
- Color
Matte black - Light Source
Tail/ stop: 12pcs red LED, 12V 0.1W/ 12V 1.7W
Indicator: 6pcs amber LED, 12V 2.0W
The turn signal lights are 2.0W instead of 1.2W in mass production.
(Note: The imprint on unit wasn't revised specifically.) - Type
Tail lamp, (optional)turn signal - Certification
EMI class 3 and IP66 dust & waterproof Compliant*
ECE, SAE approved.
- Fitment
Universal brake light/ indicator for custom project motorcycle, ATV, UTV, etc.
1. Modification may be needed during installation.
2. Heat and bending may damage the bracket's powder-coated finish. After modifying the bracket to fit your fender, restore any damaged coating to help protect the steel against rust.
3. This SKU (991968823322203) includes one matte black mounting bracket, two hex nuts, and two acorn nuts. Mating connectors are sold separately (connector SKU: 100770322320040). Any additional vehicle-specific mounting hardware is not included.
Video
FAQ
Q1: What type of light is this?
A: This is a round LED rear lamp that can function as a tail light, brake light, and turn signal, designed for custom motorcycle, café racer, bobber, ATV, UTV, buggy, and off-road projects.
Q2: Is this sold as a pair or a single unit?
A: This product is sold as a single unit (1 piece).
To use the turn signal function, two lamps are required (left and right).
Q3: What lighting functions does it support?
A: The lamp supports:
- Running / tail light (red LED)
- Brake light (red LED, higher intensity)
- Turn signal (amber LED) (requires two lamps)
Q4: How bright is the light compared to stock lights?
A: Many customers report that it is brighter than stock taillights, with clear color separation and strong visibility for both brake and turn signal functions.
Q5: What LED configuration and power ratings are used?
A:
- Tail / running light: 12 red LEDs, approx. 0.1 W
- Brake light: 12 red LEDs, approx. 1.7 W
- Turn signal: 6 amber LEDs, 2.0 W
Note:
Earlier production units may have incorrect wattage printed on the housing. The actual turn signal power draw is 2.0 W, which is reflected in the current specifications.
Q6: Why is the correct turn signal wattage important?
A: Turn signal wattage affects flasher relay behavior, especially on motorcycles with thermal or CAN-BUS-sensitive systems.
Knowing the correct 2.0 W draw helps avoid fast-flashing or compatibility issues.
Q7: Is this light street legal?
A: The lamp is ECE, SAE, and EMI Class 3 compliant, and rated IP66 dust- and water-resistant.
Final road legality depends on local regulations and installation position.
Q8: Is this a direct plug-and-play replacement?
A: Not always.
Minor wiring or mounting modification may be required, depending on the vehicle and connector type.
Q9: Are mounting brackets included, and what comes with each option?
A: Package contents depend on the SKU you select. Each option below includes one lamp. Check the selected SKU before ordering.
| SKU | Selected option | Package contents |
|---|---|---|
| 100750523320000 | Lamp only | 1 LED lamp. Mounting bracket and nuts are not included. |
| 991967723321103 | Lamp with black bracket | 1 LED lamp, 1 black mounting bracket, and 2 hex nuts. |
| 991967723321118 | Lamp with silver bracket | 1 LED lamp, 1 silver mounting bracket, and 2 hex nuts. |
| 991968823322203 | Lamp with black bracket & caps | 1 LED lamp, 1 black mounting bracket, 2 hex nuts, and 2 acorn nuts (caps). |
| 991968823322218 | Lamp with silver bracket & caps | 1 LED lamp, 1 silver mounting bracket, 2 hex nuts, and 2 acorn nuts (caps). |
Mating connectors are sold separately for all options. The matching connector is SKU 100770322320040. Any additional vehicle-specific mounting hardware is not included.
Q10: What materials are used?
A:
- Lens: Acrylic
- Reflector: ABS
- Frame: ABS
Designed for durability and outdoor use.
Q11: Is this waterproof?
A: Yes. It is rated IP66, meaning:
- Protected against dust
- Protected against powerful water jets
Q12: What vehicles is this light compatible with?
A: It is a universal rear light for custom projects, including:
- Motorcycles (café racer, bobber, chopper)
- ATVs / UTVs
- Buggies
- Mobility scooters
- Off-road and custom vehicles
Q13: Are there known direct replacement applications?
A: Customers have used this lamp as a rear indicator or brake light on:
- Kymco Maxer EQ40DA
- One Rehab President / Phantom
- Van Os Galaxy II / Galaxy Plus series
- Travelux Discovery Sport mobility scooters
Connector differences may require modification.
Q14: Does it work well for custom builds?
A: Yes. Many users choose this lamp for custom and retrofit projects due to its compact size, brightness, and multi-function design.
Q15: What does the light look like when illuminated?
A: Customers often describe the light output as bright and clean, with a faceted, gem-like appearance around each LED diode.
Q16: What should I check before purchasing?
A: Before purchasing, confirm:
- You will order two units if turn signals are required
- You are prepared for custom wiring or mounting
- Your flasher relay can handle 2.0 W turn signal load

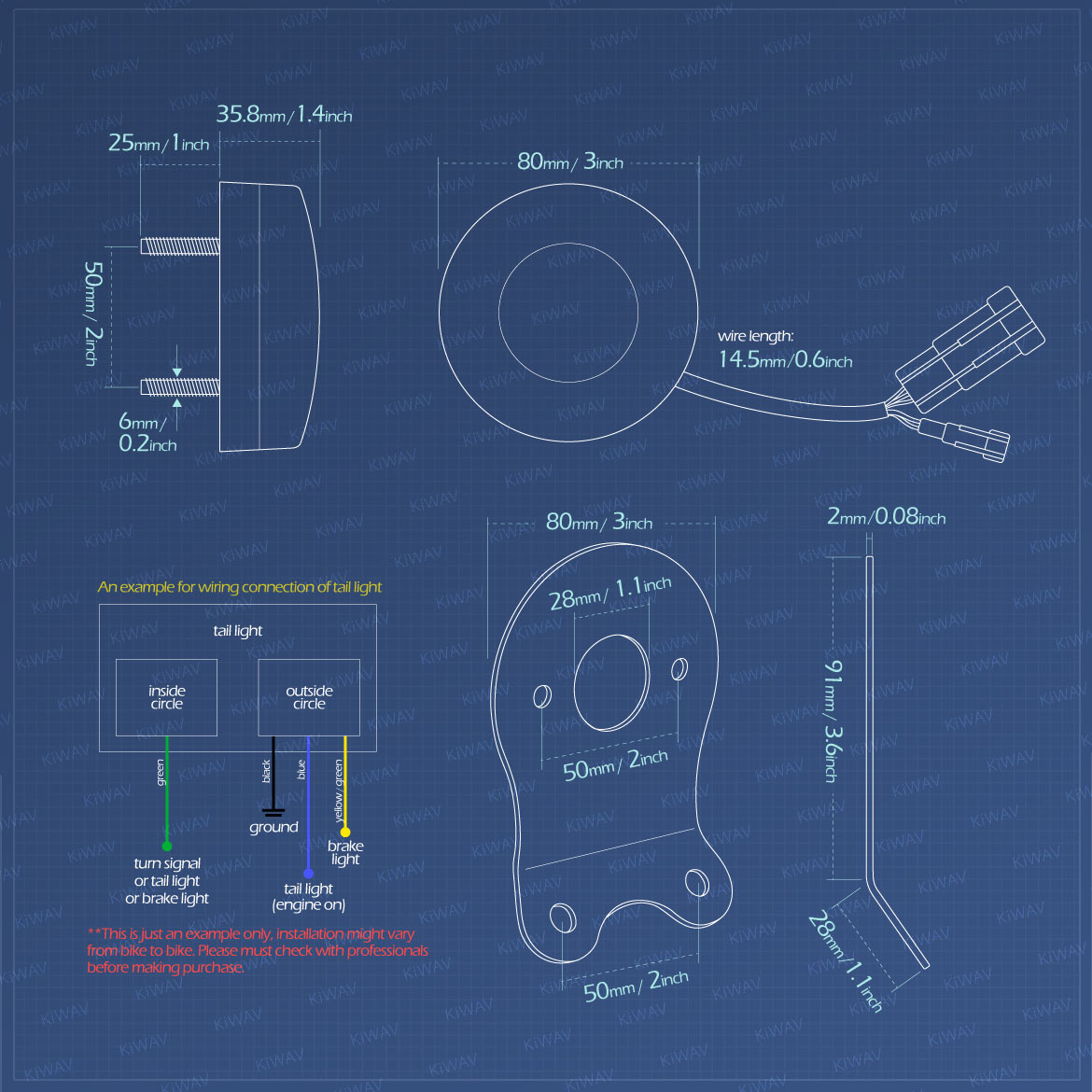

Measurement
*Please allow ±3% measuring deviation due to manual measurement.
