0 Rating
$615.00
Out of Stock
SKU: 100162102003300
BSD system with LED indicators fit for most bmw, sold as a pair.
Fitment: Sold in Units:
Notify Me
Visualize it right away
Printable 1:1 actual size. Print and compare before purchase.

Description

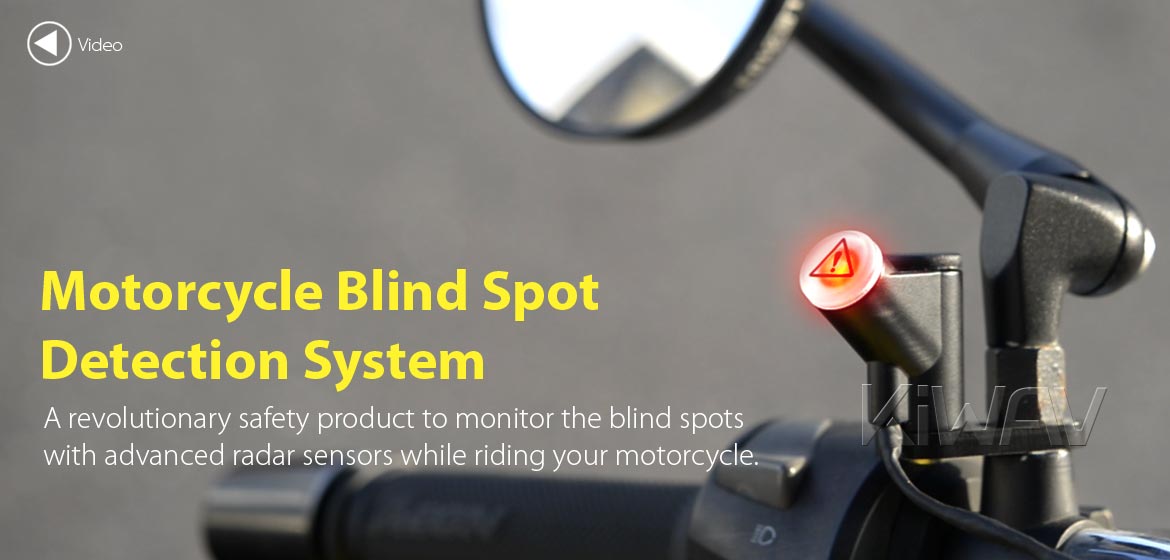

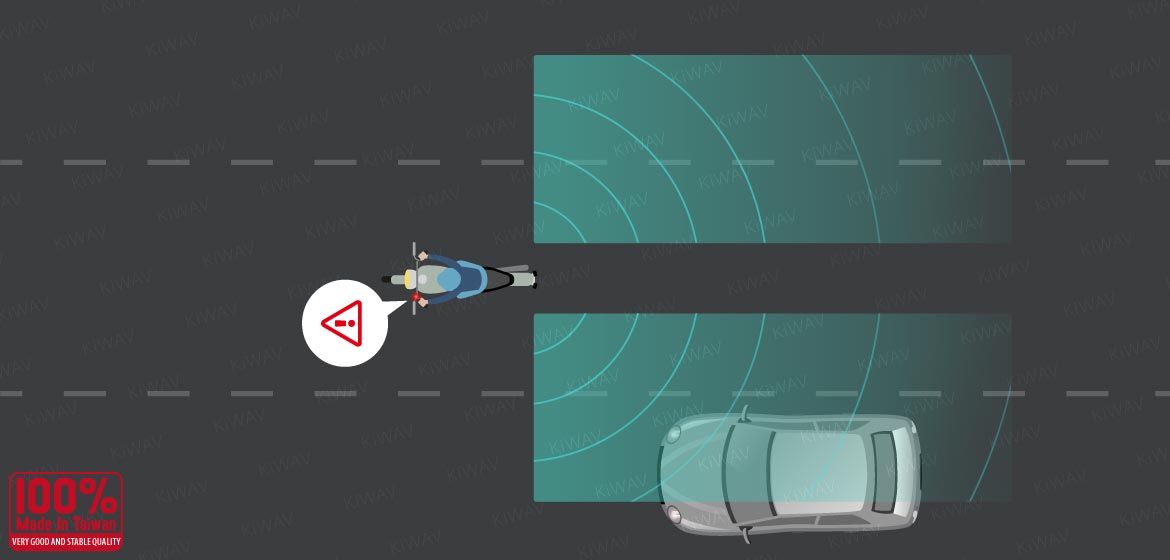

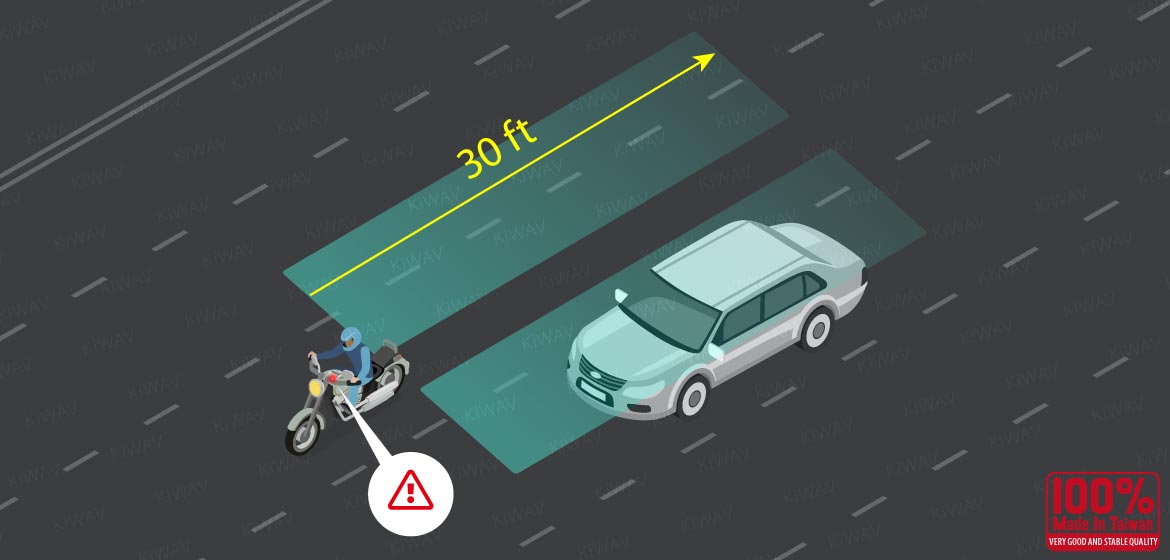

Blind spot detection has been available on cars for a number of years. Now KiWAV presents the future of motorcycle safety product -- BSD system for motorcycle.

Measurement

*Please allow ±3% measuring deviation due to manual measurement.

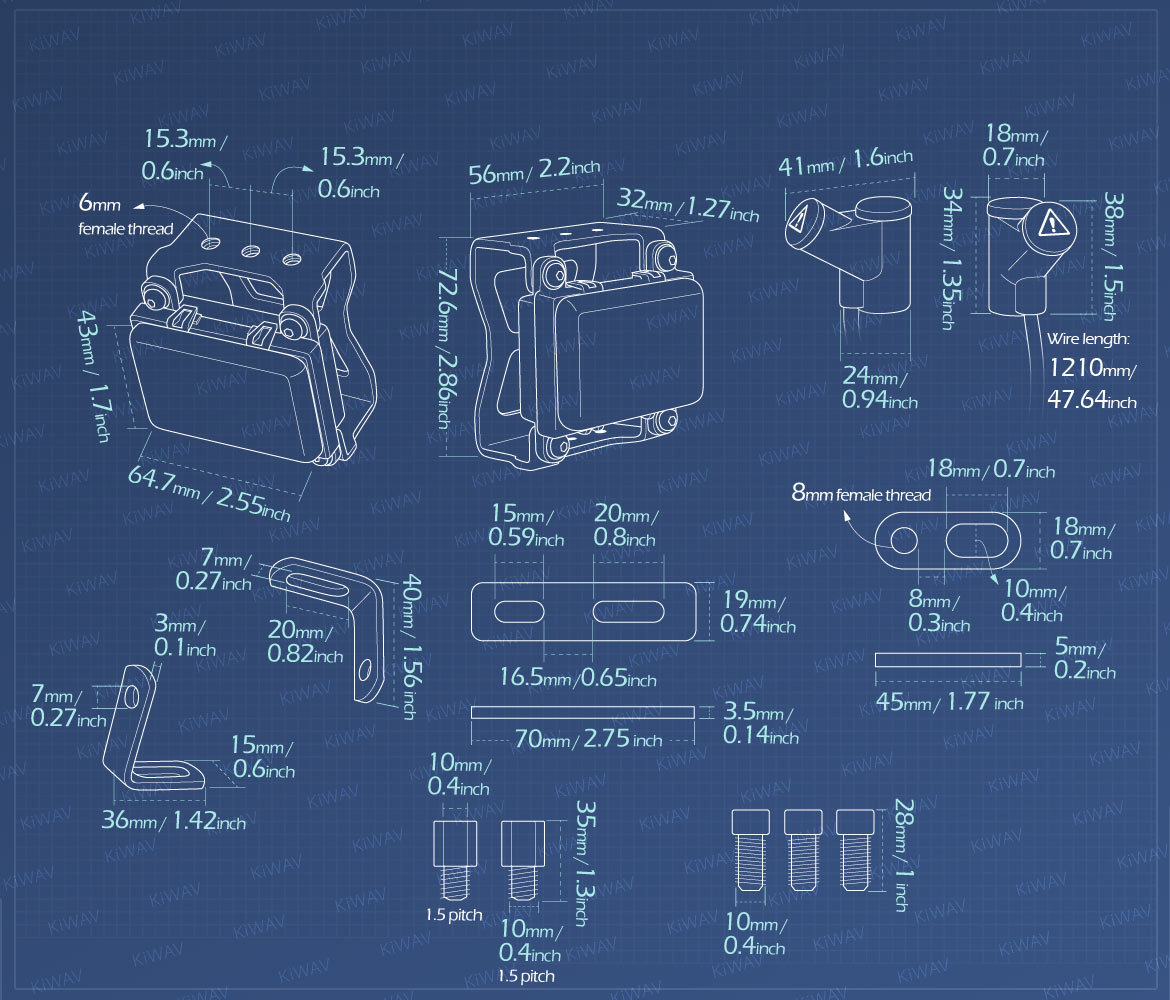

Measurement of KiWAV motorcycle BSD system with LED indicators for most BMW

SPEC

  • BSD SPEC
    Storage temperature: -40°C ~ +90°C
    Operating temperature: -40°C ~ +80°C
    Input Voltage Range: 9V – 16V, 12V (Typical)
    Current Consumption: <1050mA ± @12V
    Dust & waterproof compliant: IP67
    Specifications: ISO 16750
    Radiation Regulations: FCC/NCC
    • Weight
      n.w.: 880 g./1.94 lbs. (pair),
      g.w.: 1178 g./2.59 lbs. (total package, packing inclusive)

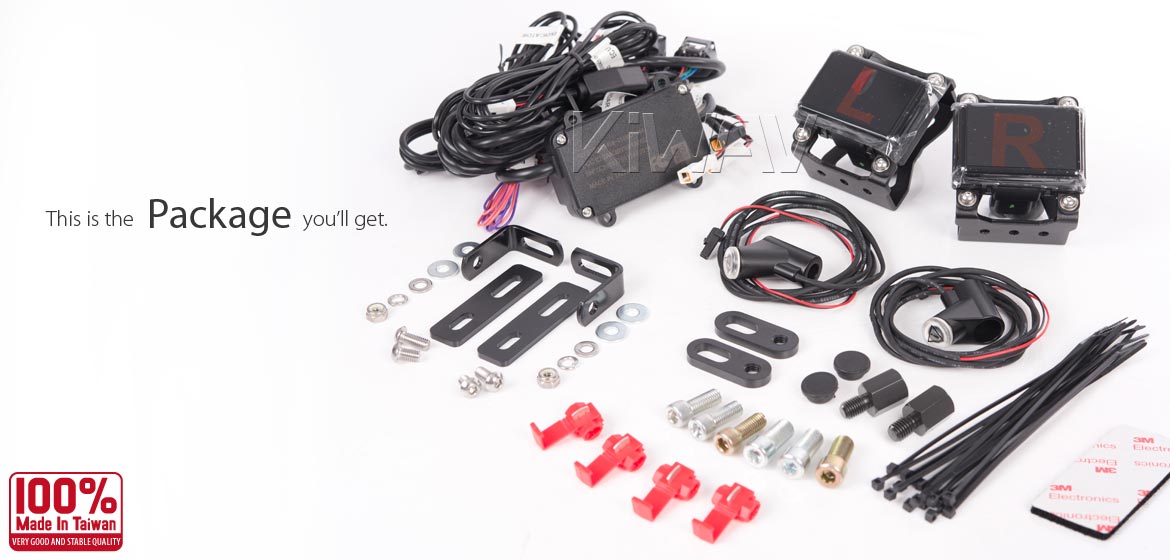

    • Package

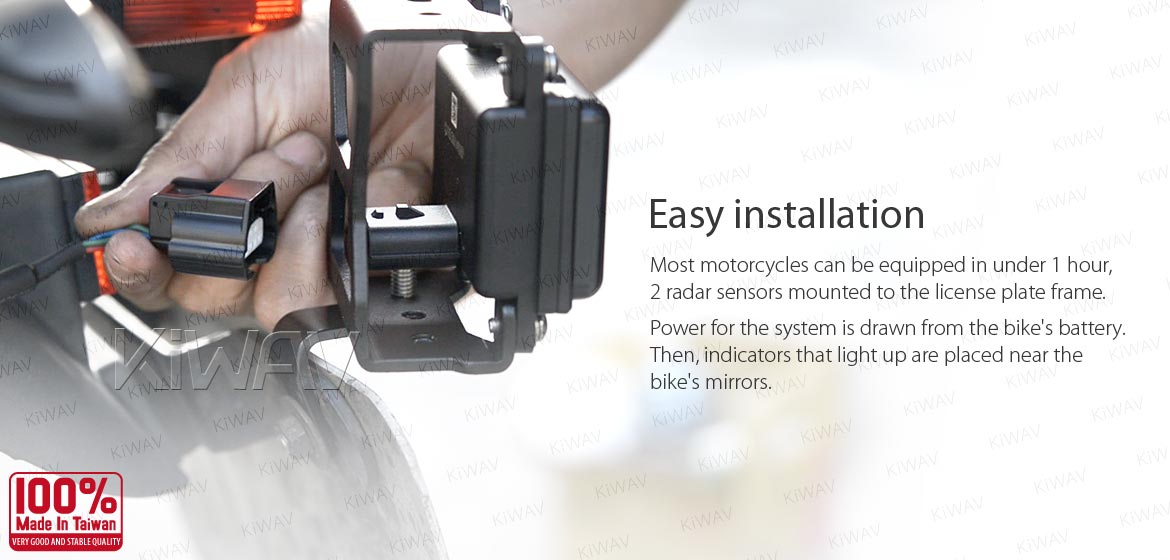

      BSD control unit x1, radar x a pair,
      bracket for radar (L type) x 2, bracket for radar (straight type) x 2,
      LED indicator x 2, bracket for indicator x 2,
      wire harness set x 4, zip ties, quick connector x4,
      10MM standard thread bolt x2, 10MM reverse thread bolt x1,
      8MM standard thread bolt x2, 8MM reverse thread bolt x1, bolt cap x2,
      10MM to 10MM 1.5 pitch adapter x 2
    • Compatibility
      Direct bolt-on on mirror perch:
      Compatible for most BMW motorcycles*
      *For F650, F650CS, etc... the correct bolt size is M8 1.25pitch, please buy from "8mm for scooter" instead.
      *For K1200GT, K1200RS, R1100GS, R1100R, R1100RS, R1150GS R1150R, R1150RS, R1200C, etc... use an 8mm stem going through the switch box. Please buy from the fitment for "most Harley-Davidson" using the same way application.
      *Please check NOTES below.

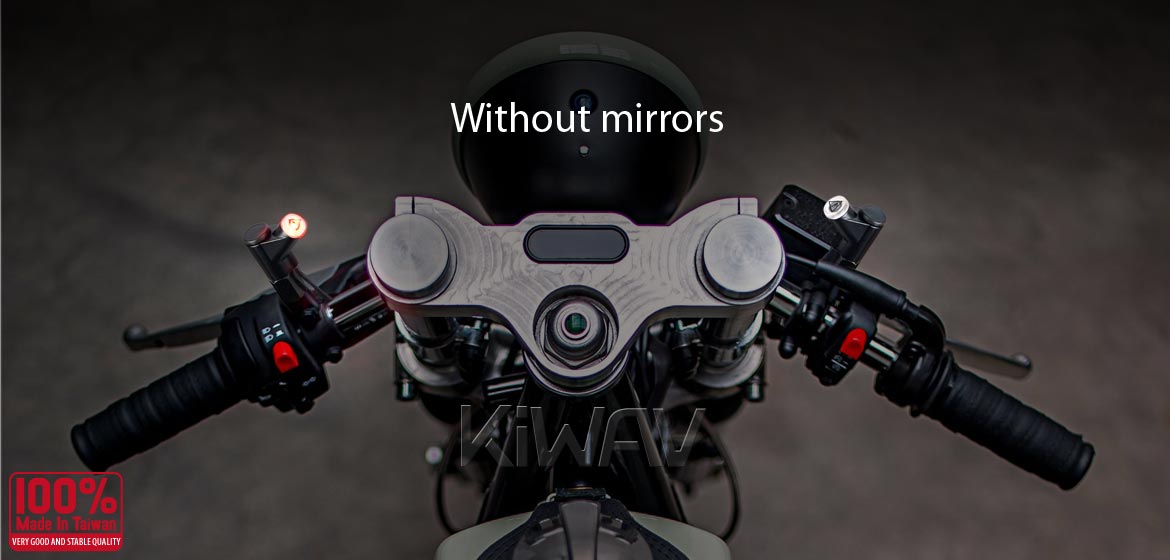

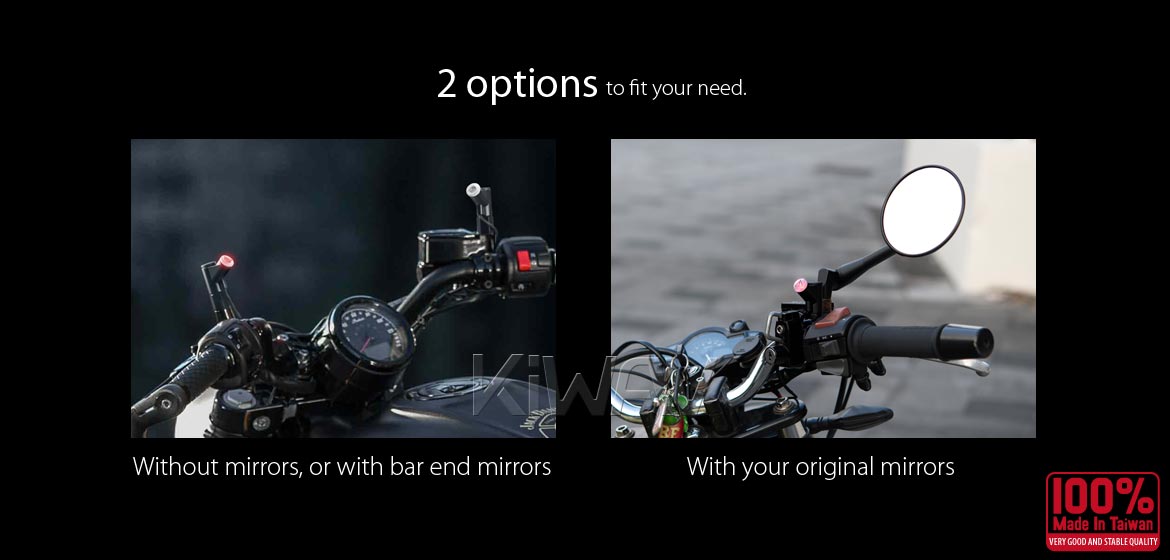

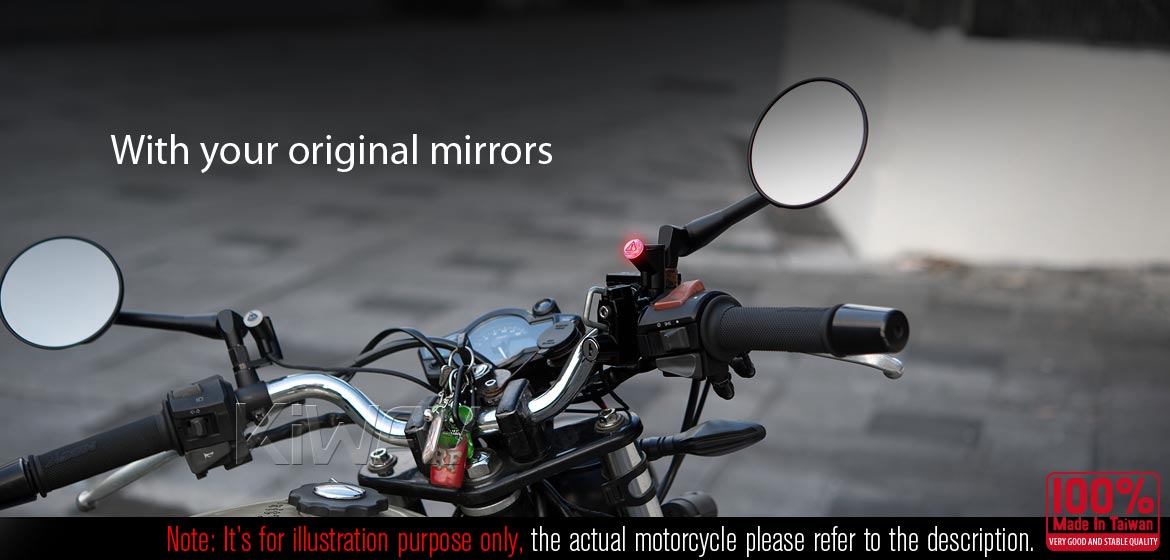

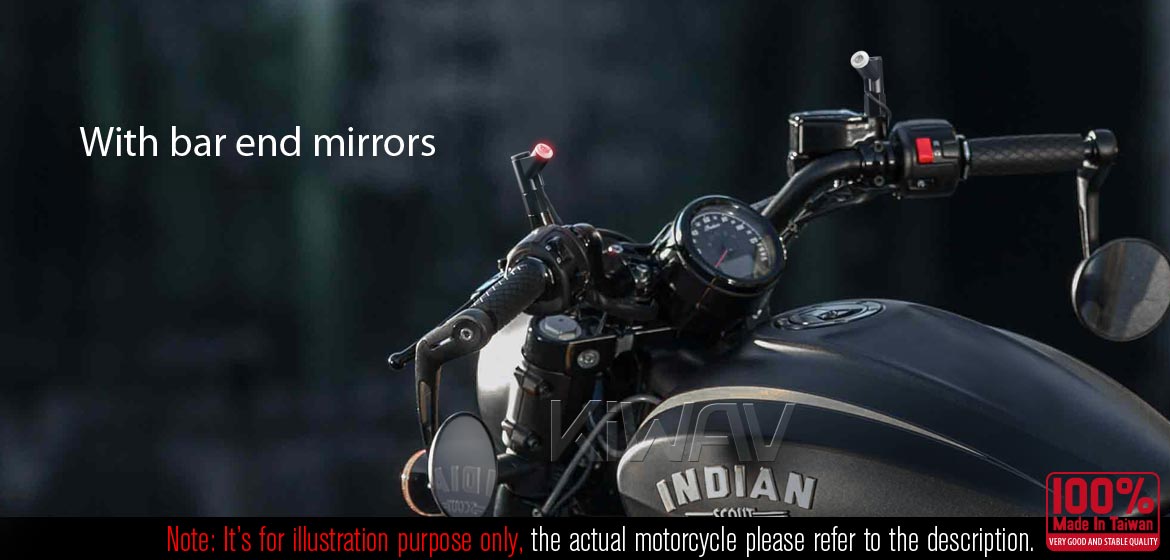

      Apply the indicators under your mirrors with the extension brackets:
      For any mirror bolt stud under 10mm.
      *Please check NOTES below.
      BMW

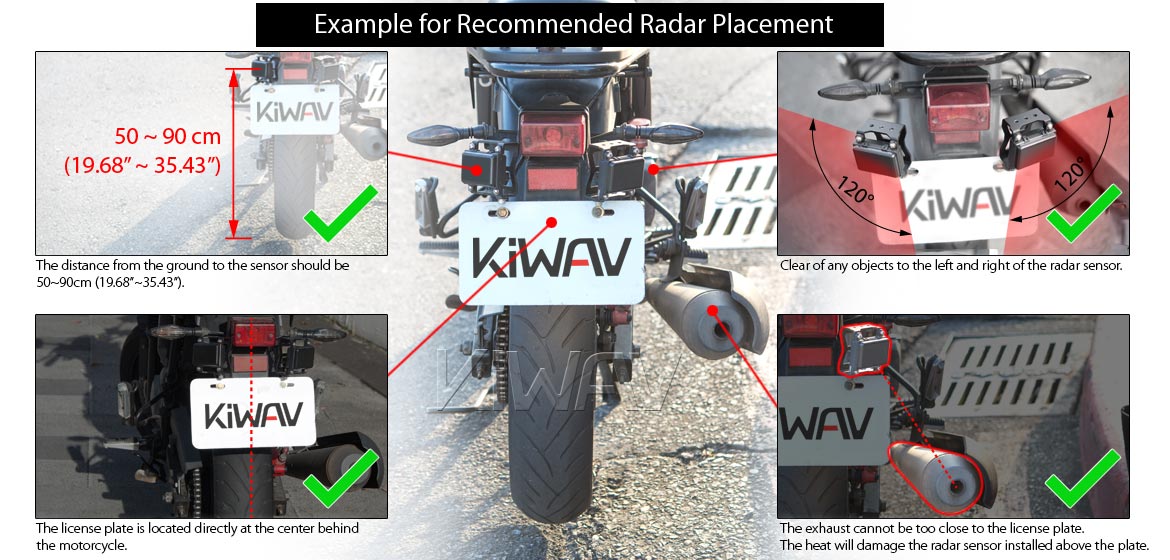

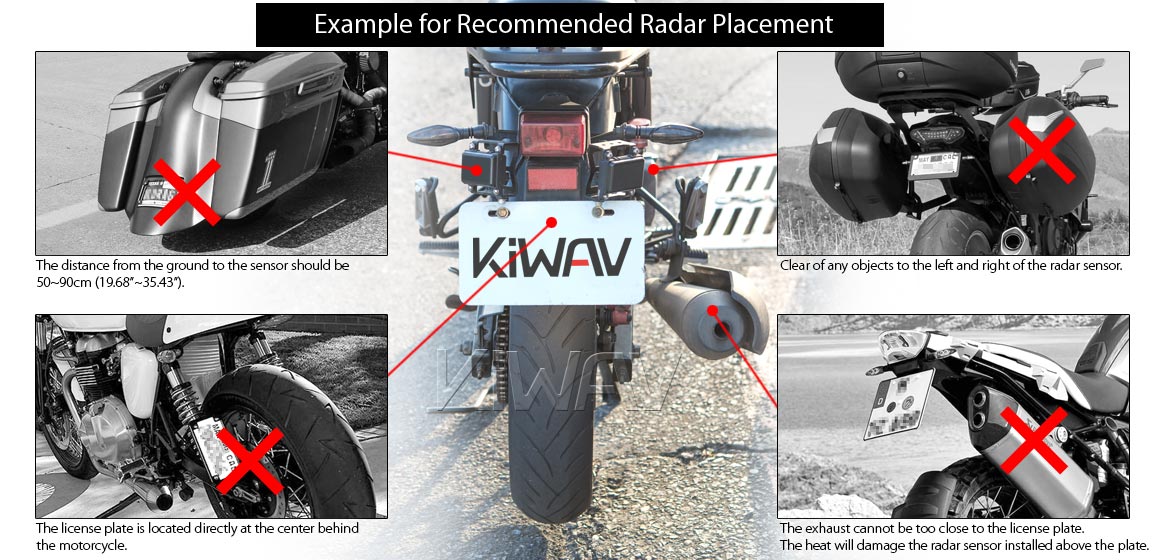

    Our BSD system is NOT RECOMMENDED if your motorcycle has:
    1. The exhaust placed too close to the license plate, the heat from exhaust gases will damage the radar sensor.
    2. The license plate is not located directly behind the motorcycle.
    3. The distance from the ground to the license plate is lower than 50 cm (19.68 inch) or higher than 90 cm (35.43 inch).
    4. There is no space for the radar sensor on the both sides of the license plate. (you can download the template to measure and find out.)
