Flash chrome LED mirrors compatible with Harley Davidson

by KiWAV
0 Rating
In Stock
SKU: SS-8008-flash-led-chrom
EAN: 0799418221854
Color Sold in Units
Beautiful addition to the bike. Definitely makes a statement-- it just looks good.

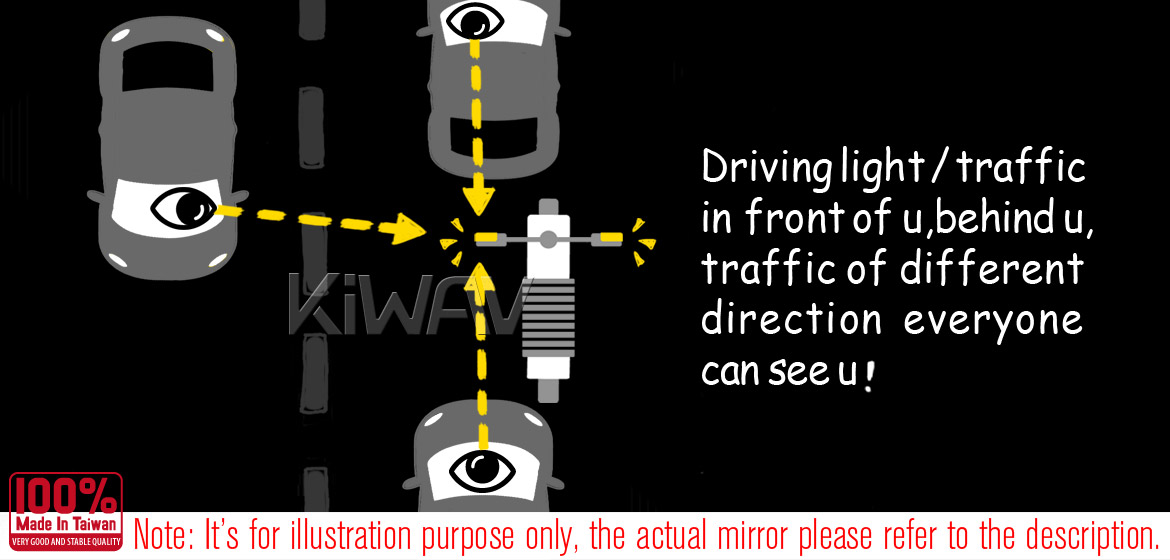

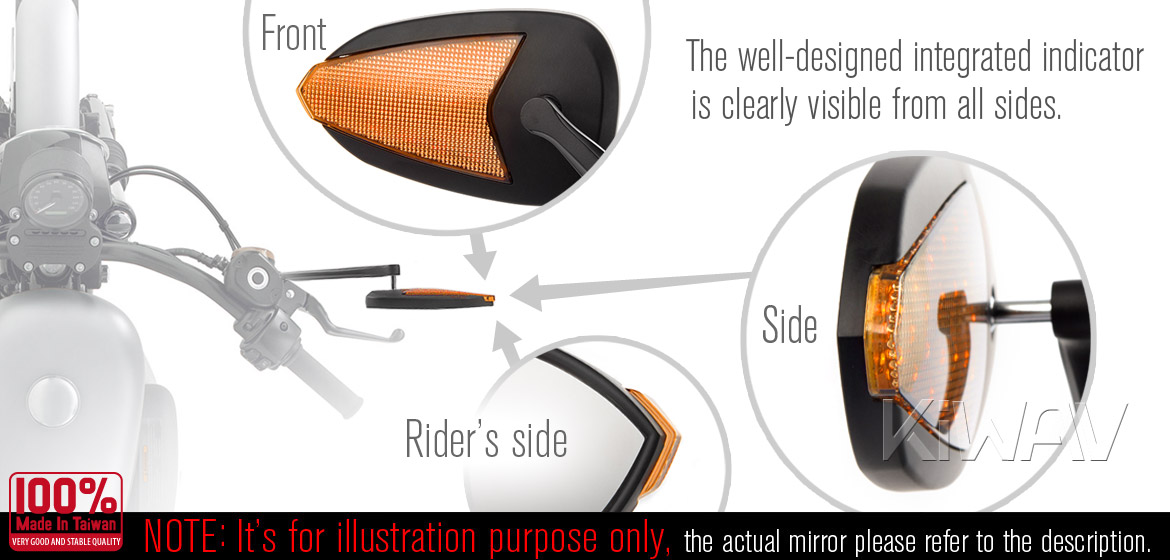

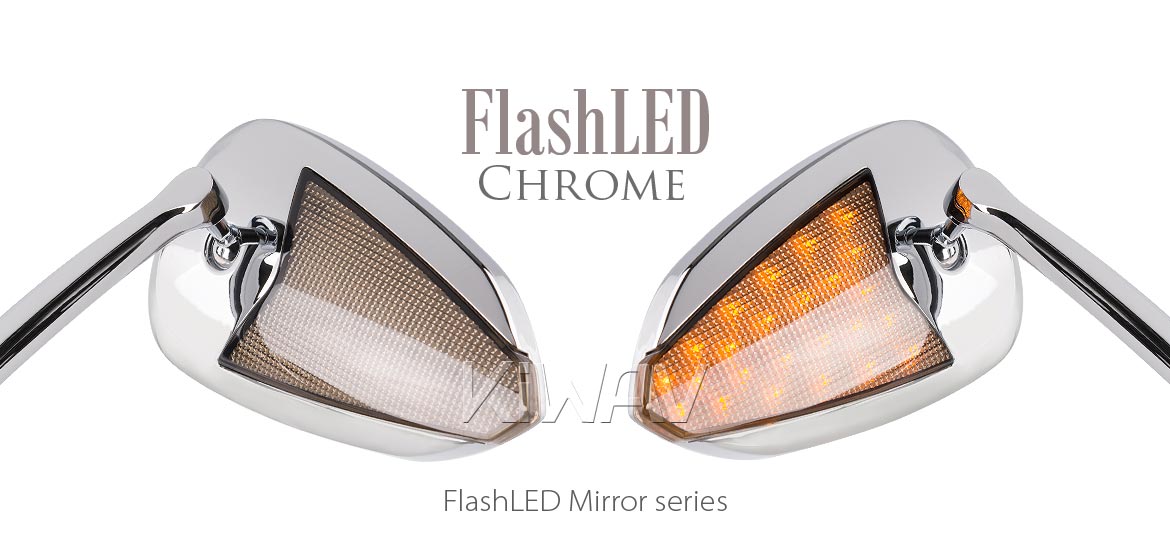

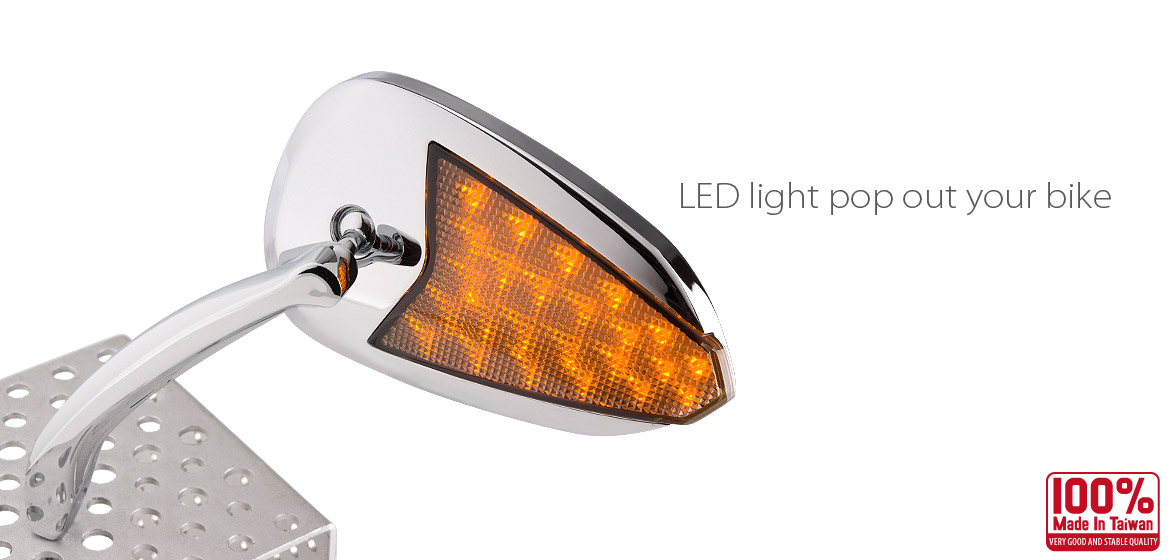

This forged and satin black mirror combines a traditional swept shape with a contemporary addition - forward facing auxiliary lighting: running and turn signal light. Flash LED Motorcycle mirror turn signal, driving light, in the daylight, at night, in total darkness
  • Material
    Mirror Housing: Casting aluminum
  • Shape

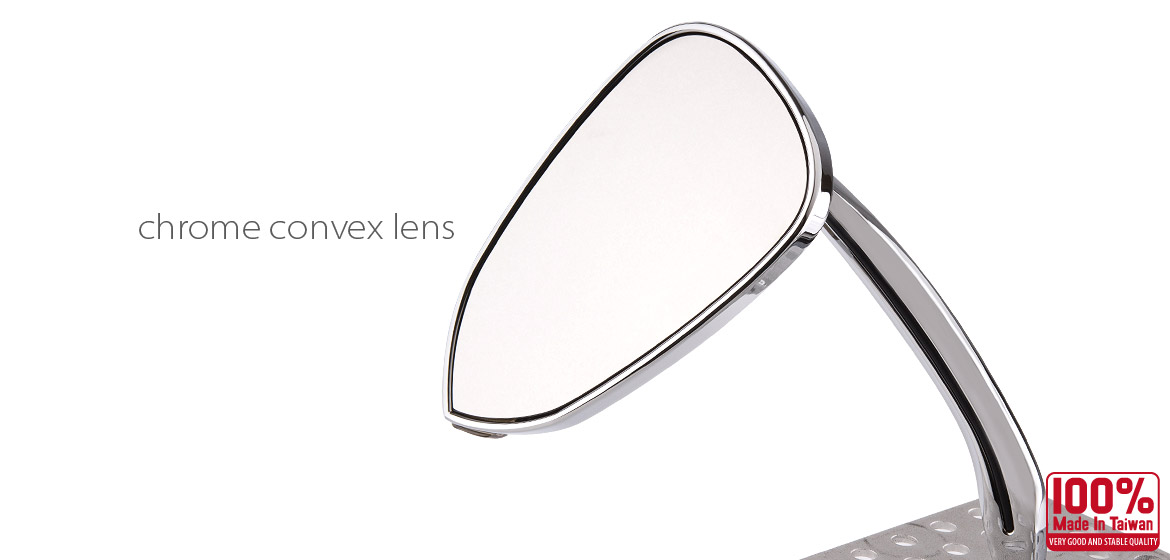

  • Glass
    Chrome convex lens
  • Weight
    n.w.:600g./ 1.32 lbs(pair),
    g.w.:820g/ 1.8 lbs(total package, packing inclusive)
  • Fitment
    Harley Davidson
  • Color
    Mirror: Chrome
    LED: Amber
  • LED
    24 pcs 12V~13.5V (0.5W)
  • Thread
    5/16"-24 mounting

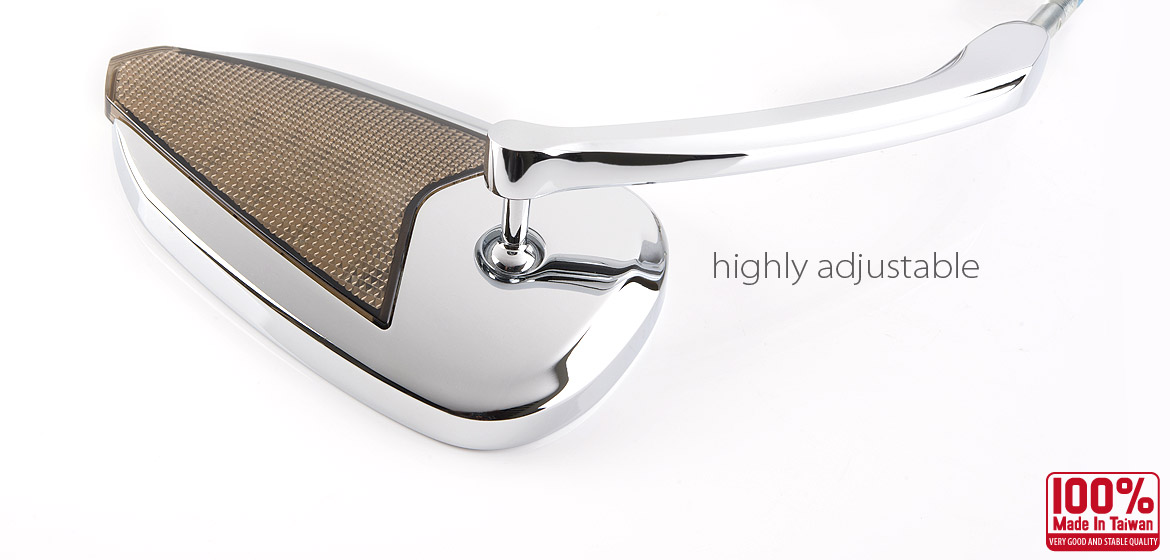

  • Adjustment
    360 degree ( one adjusting joint )

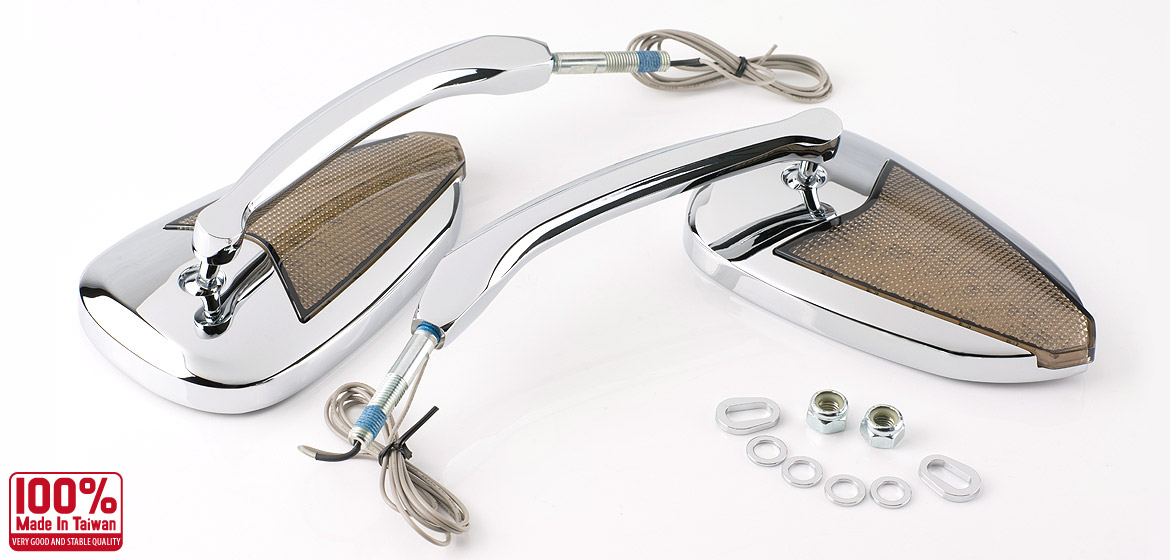

  • Package
    a pair ( Left hand / Right hand ) of mirror,
    5/16 -24 mounting NF x 2 ,
    washer x 6

*Please allow measuring deviation due to manual measurement.

How to install the mirrors on Harley?

  1. Remove the old mirror and nut. Retain the original internal tooth lock-washer.
  2. Install flat washer (1) on top of hand control assembly to stabilize mirror stem.
  3. Install new mirror stem through hand control assembly.
  4. Slide mirror power led wire (gray) through ground wire ring terminal (2) then install ring terminal on mirror stem.
  5. Slide mirror power lead wire (gray) through wire guard (3), then install wire guard on mirror stem.
  6. Install flat washer (4) from kit on mirror stem.
  7. Install acorn nut (5) on mirror stem.
  8. Tighten to 8-12 ft-lbs (10.8-16.3 Nm). Do not over-tighten.
  9. Check mirror adjustment and reposition if necessary.

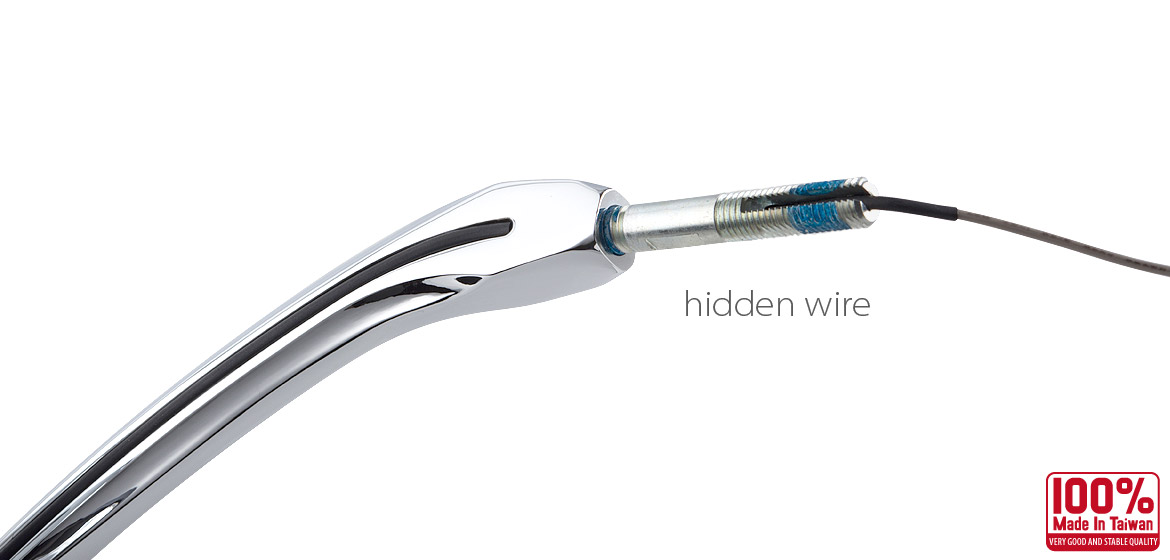

Be sure wire exiting mirror stem is positioned in wire guard so it does not get crushed by hardware.
