Royal Rods RY-2201 connecting rod compatible with Yamaha YZ85(02-18) YZ80(93-01)
$67.90
Out of Stock
SKU: RL-YZ80-02-07
Connecting rod for Yamaha YZ85 2002-2018 / YZ80 1993-2001, high-quality, superior, exact OEM specification, sold as a set.
Description
ROYAL RODS gives you the best riding performance without sacrificing the stability. One of the best brands in the market one can find. Win your race without your opponents knowing why.OEM Part Number: 4ES-11651-10-00
Click to see:Dedicated Rod List
Click to see:Dedicated Rod List
Compatible Motorcycle Models
(Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)Yamaha
- YZ80 (1993-2001)
- YZ85 (2002-2018)
- YZ85 Team Yamaha (2011-2014)
SPEC
- Part Number: RY-2201
- OEM Part Number: 4ES-11651-10-00
- Compatibility: Compatible for YAMAHA YZ85 2002-2018, YZ80 1993-2001

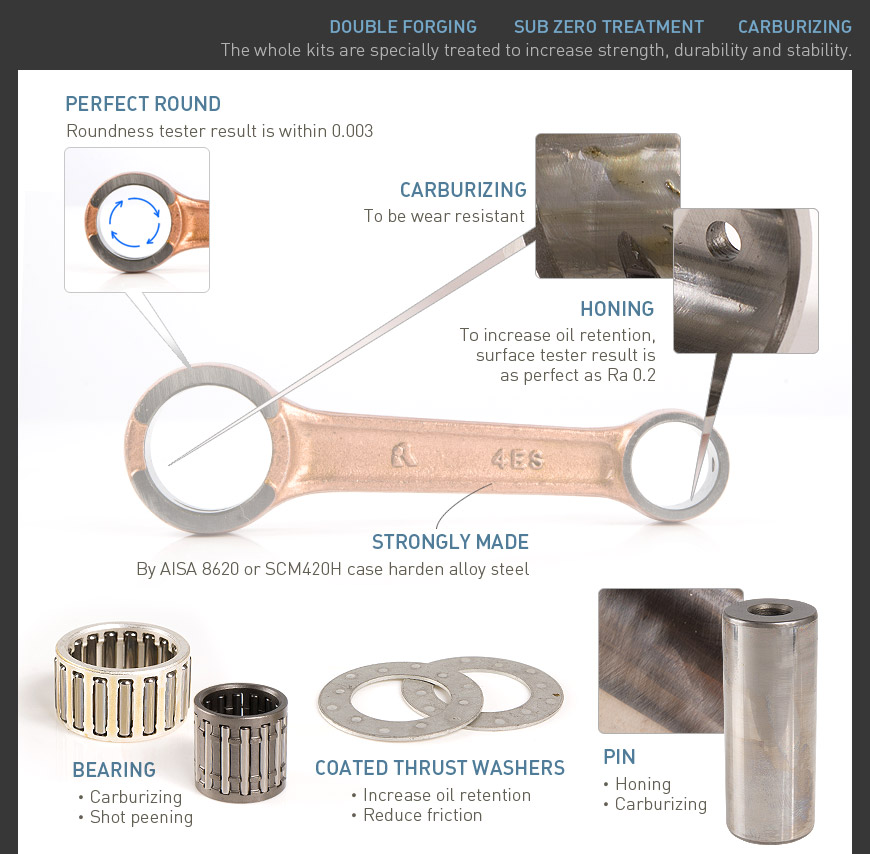

- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

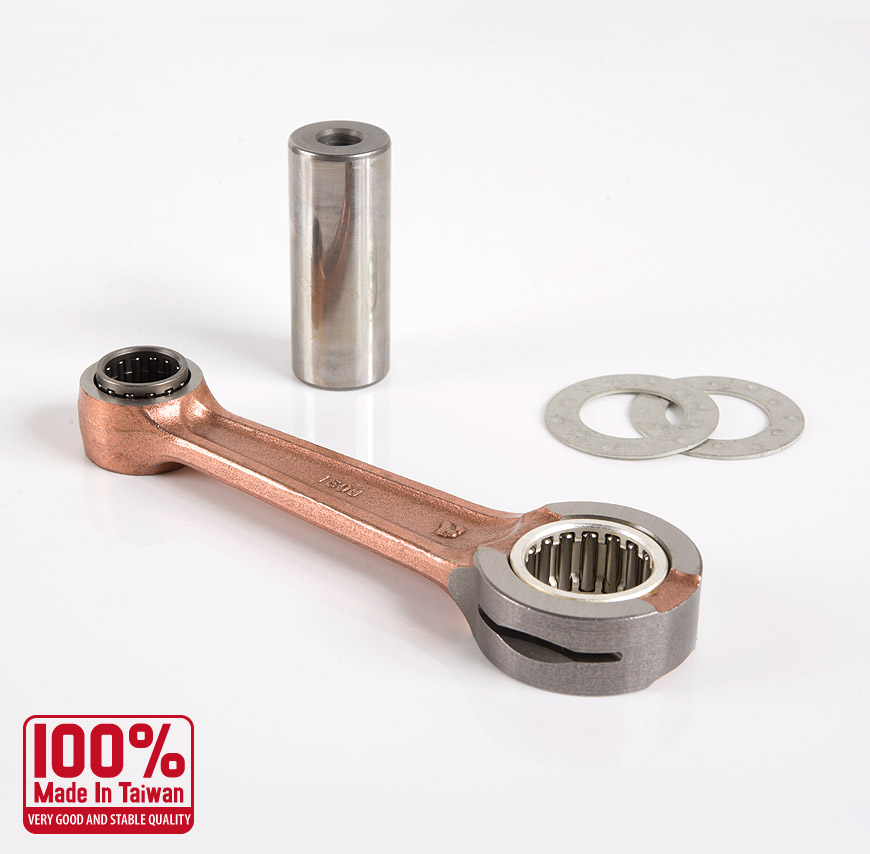

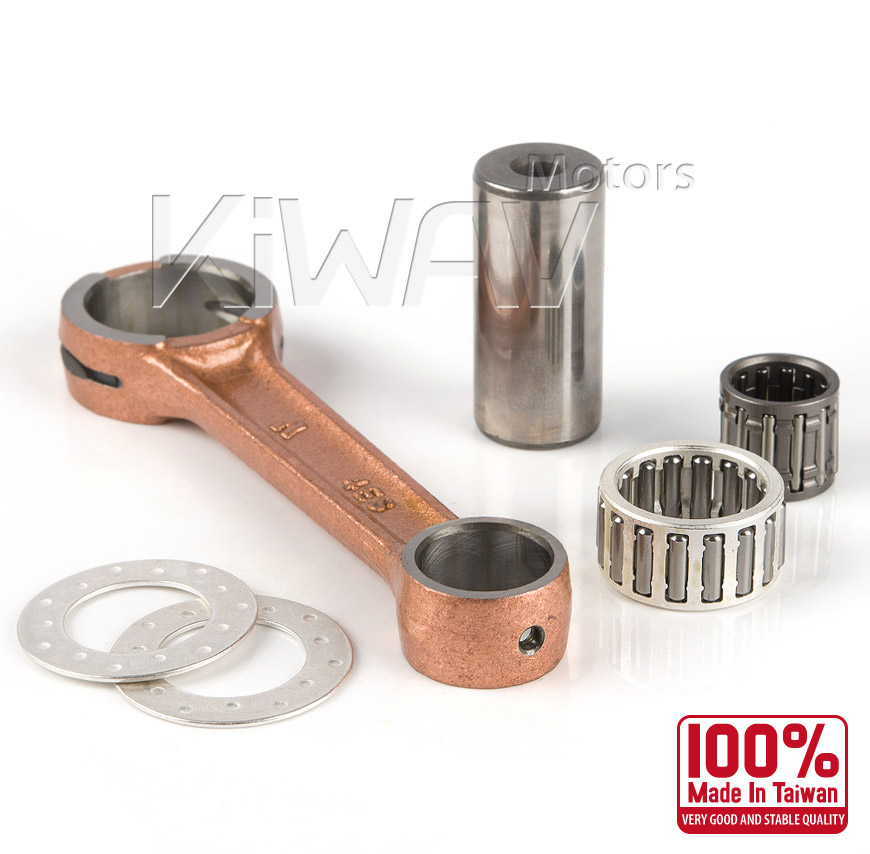

- Package: Forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
- Net Weight: 235g
- Total Weight: 260g (total package,included packing)
| ITEM NO. | A | B | C | D | E | unit: mm |
| RY-2201 | 26 | 18 | 96 | 14 | 14 | PIN: Ø20*43 WAHSER: Ø33*Ø20.2*1 |
| BIG END BEARING: 20*26*13.8 | ||||||
| SMALL END BEARING: 14*18*16.2 | ||||||
