KiWAV custom motorcycle LED mini dashboard warning lights matte black
$57.99
In Stock
SKU: 100733140130003

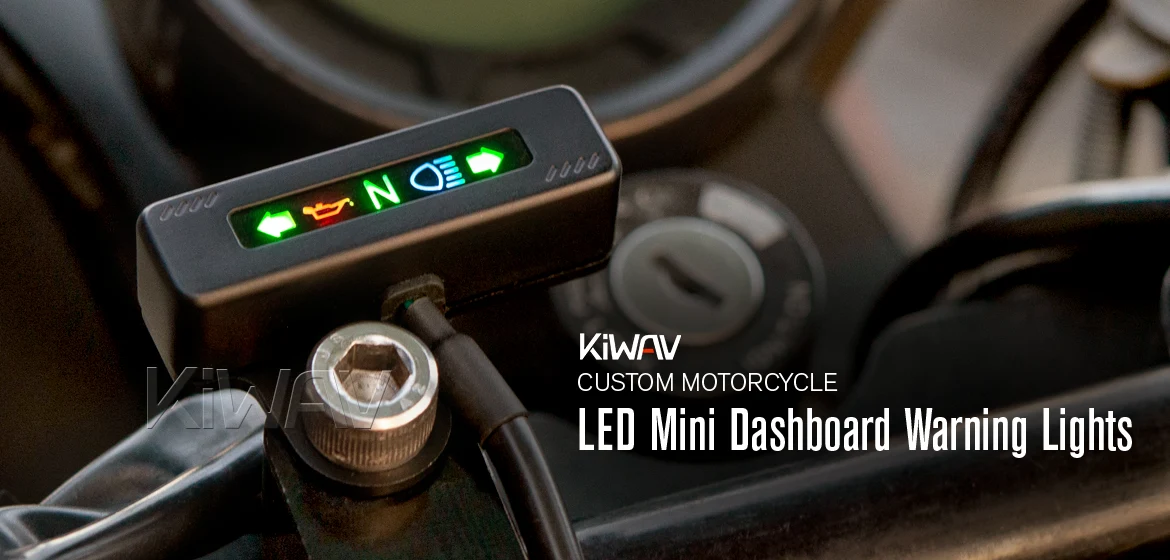

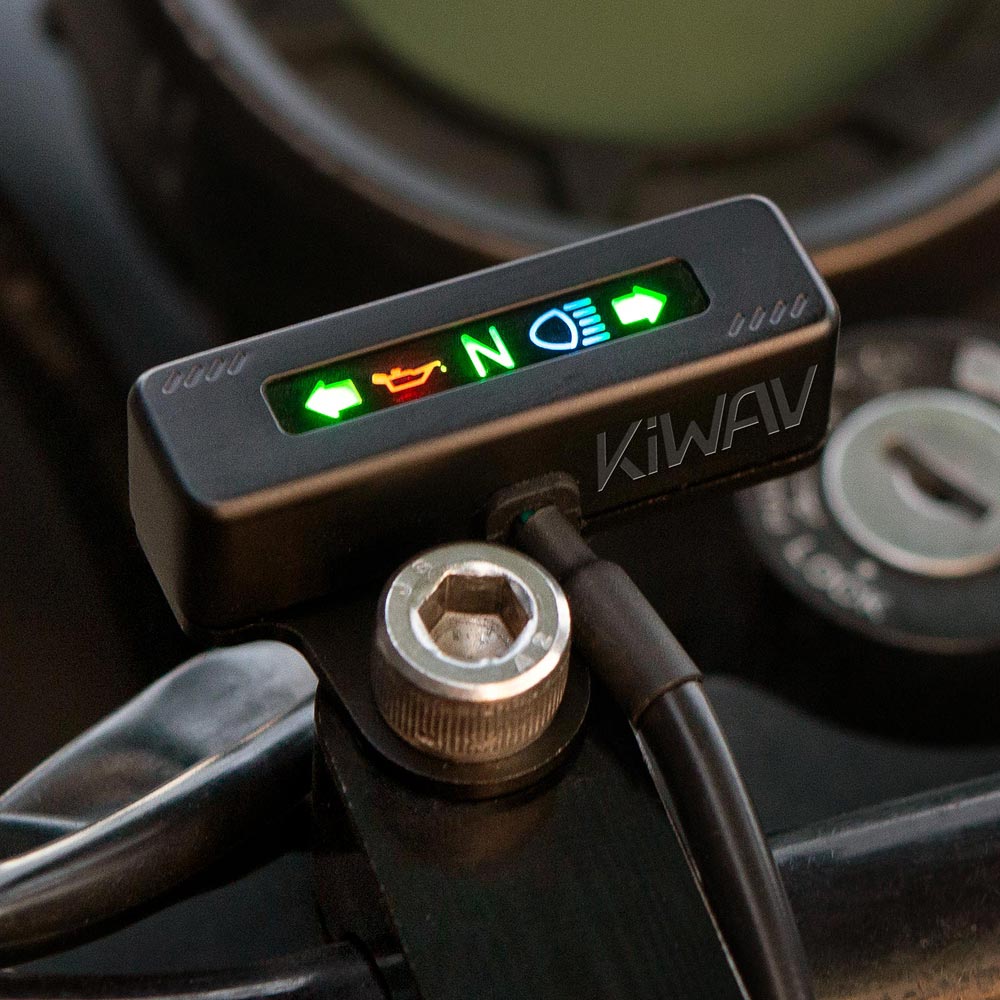

This compact LED indicator display unit offers an ideal solution for building neat custom motorcycles and ATVs. The display unit uses bright LEDs to illuminate the following warning lights: turn signal indicators, neutral gear light, HI-beam, and oil warning light.
- Features

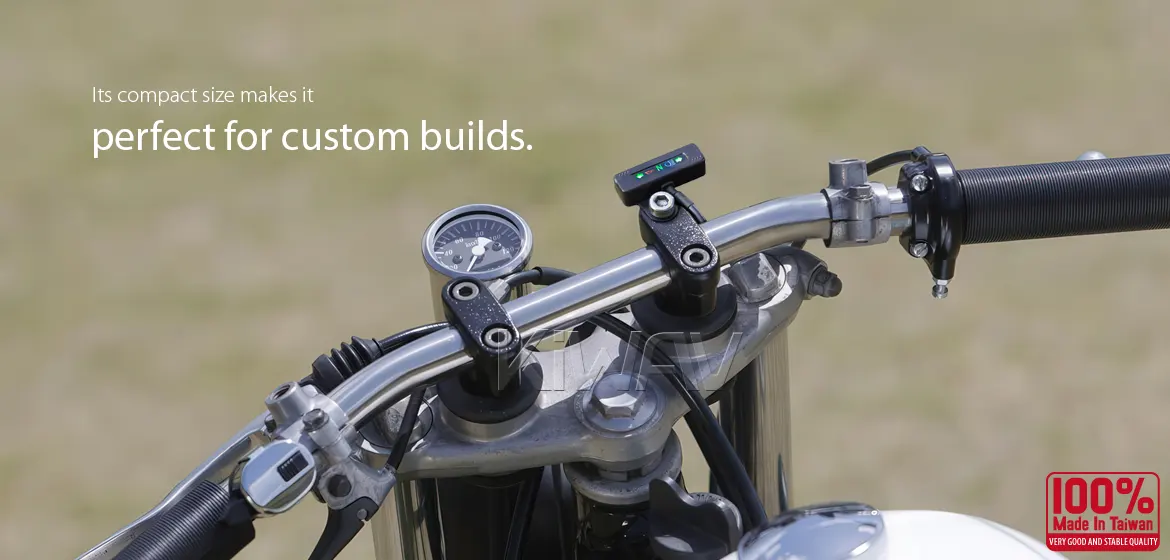

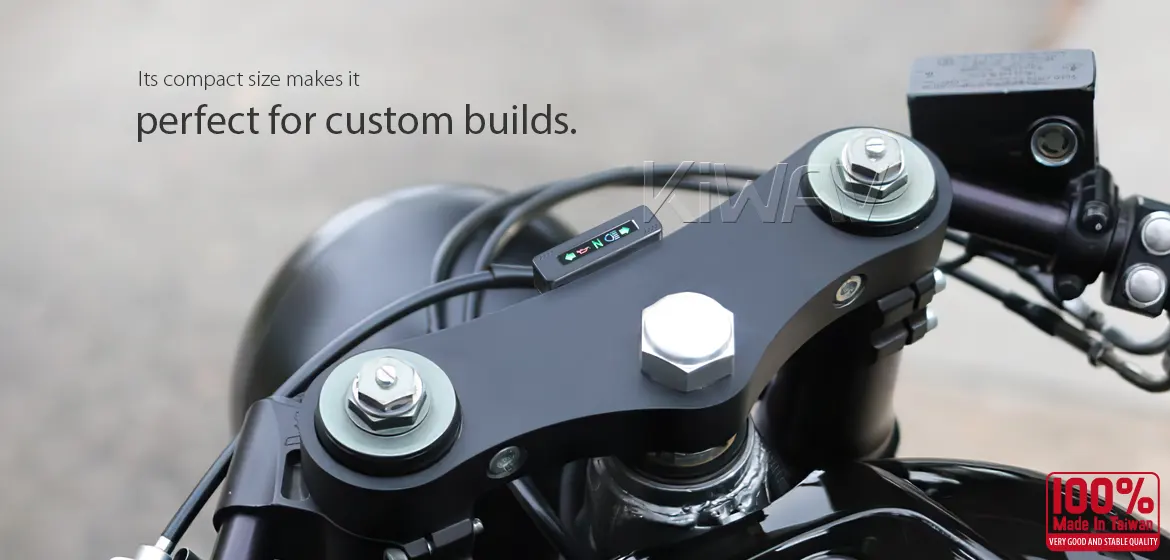

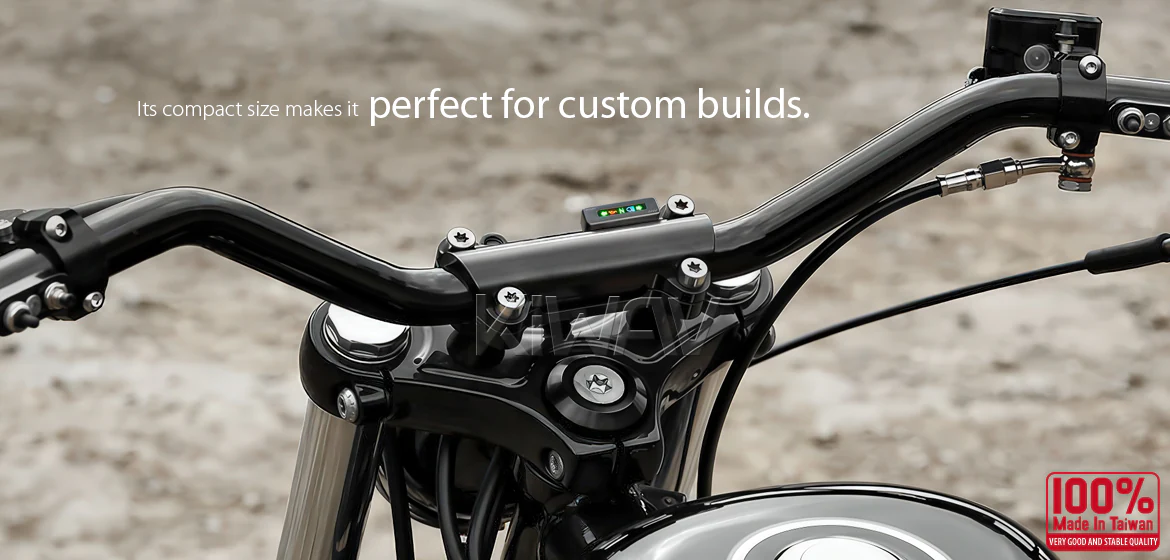

- Its compact size makes it perfect for custom builds.

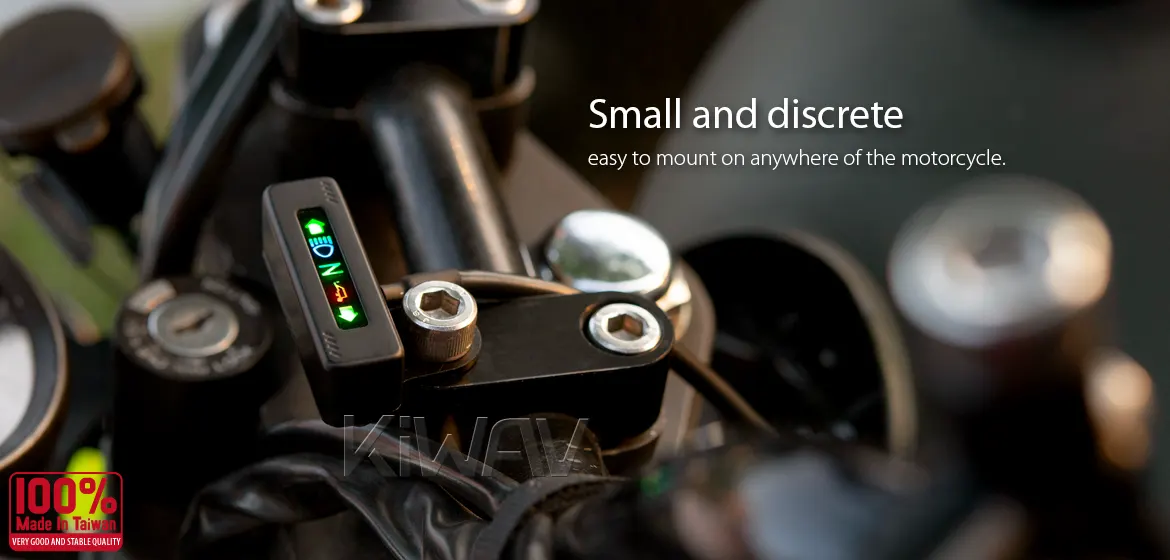

- Small and discrete, easy to mount on anywhere of the motorcycle.
- Features 5 clear and bright idiot lights for turn signals, neutral light, Hi-beam, and oil warning light.

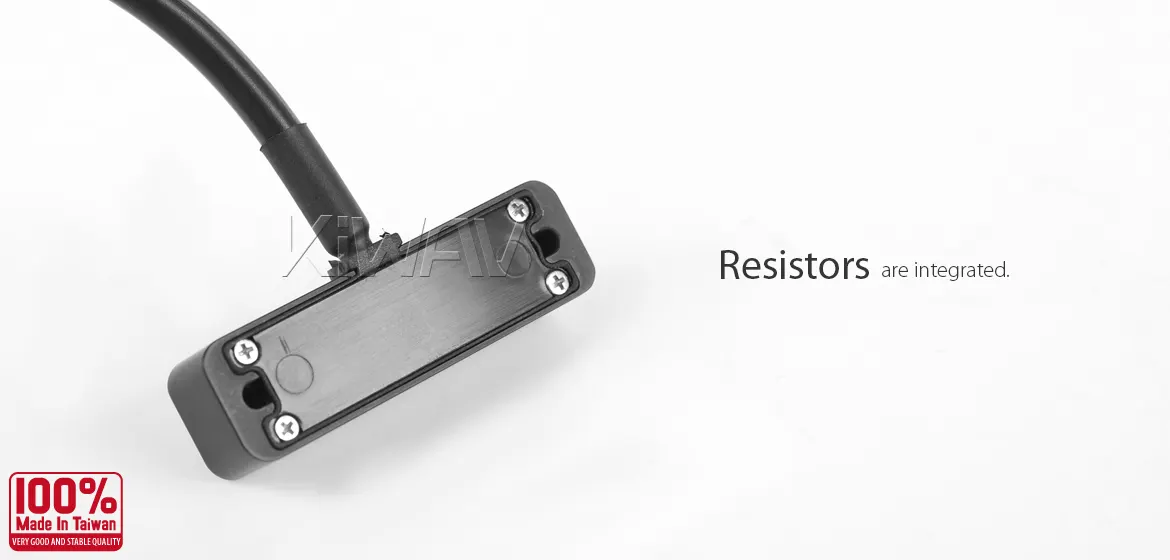

- Resistors are integrated.
- Casing is made of aluminum in black.
- Horizontal mounting bracket included.

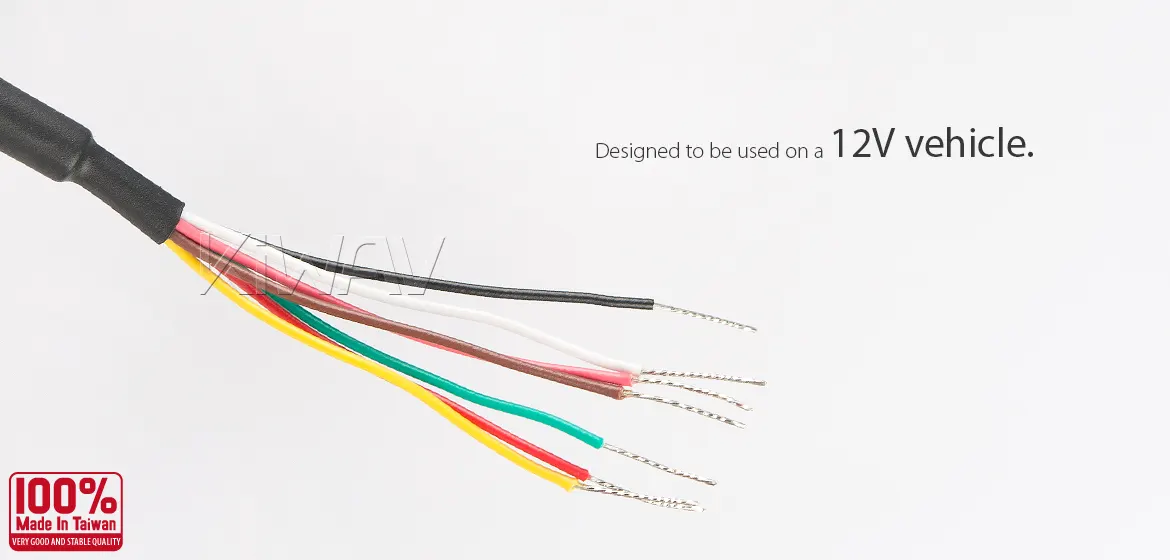

- Designed to be used on a 12V vehicle.
- 8mm mount.
- Material
Housing: CNC aluminum
Bracket: Stainless steel - Color
Housing: Matte black
Bracket: Black
Indicators: Green (left/ right turn signal, Neutral gear), blue (Hi-beam), red (oil warning)
- Net Weight
49 g./ 0.11 lbs. - Package

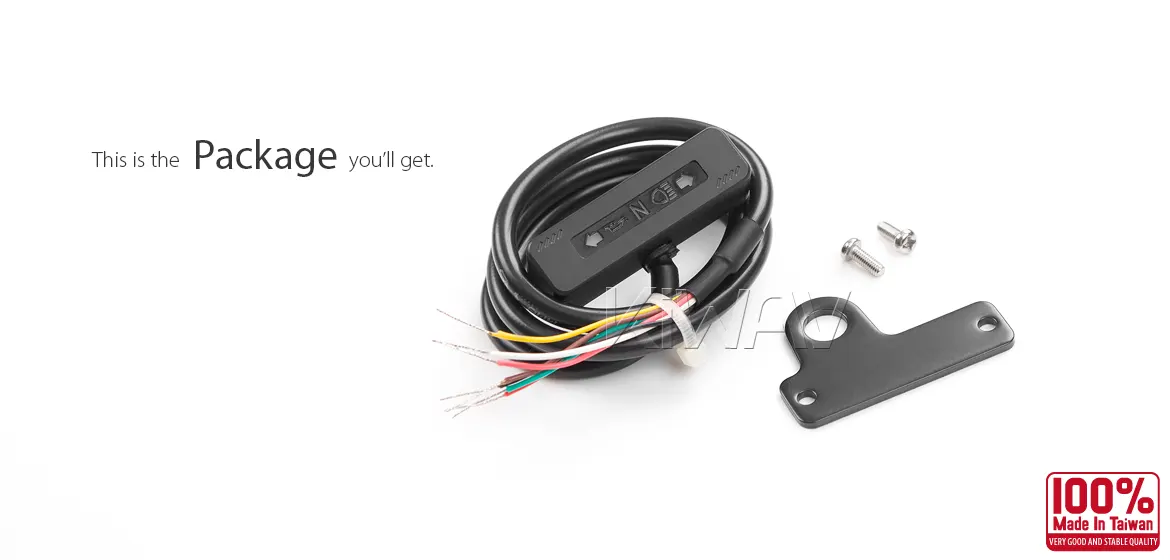

Unit x 1, M3 bolt x 2, bracket x 1
1. It is a universal product and it requires processing depending on the mounting method.
2. Wiring knowledge is required to install.
3. It is NOT recommended to connect using the bullet type connector because the wires are thin. It requires soldering when connecting it.
4. There is minor light overflow at certain angle. It does not impact its functions.
5. Test the light with a 12V battery or power supply during installation if the light does not lit up, most of the time it's the wiring that needs to be adjusted.
6. To ensure waterproofing, a white adhesive that hardens when dry has been applied to certain internal components. As a result, a slight bulge may appear after the rear panel is fully fastened — this is normal. A bracket will be installed afterward, and the final appearance will not be affected.
2. Wiring knowledge is required to install.
3. It is NOT recommended to connect using the bullet type connector because the wires are thin. It requires soldering when connecting it.
4. There is minor light overflow at certain angle. It does not impact its functions.
5. Test the light with a 12V battery or power supply during installation if the light does not lit up, most of the time it's the wiring that needs to be adjusted.
6. To ensure waterproofing, a white adhesive that hardens when dry has been applied to certain internal components. As a result, a slight bulge may appear after the rear panel is fully fastened — this is normal. A bracket will be installed afterward, and the final appearance will not be affected.
*Please allow measuring deviation due to manual measurement.
