Royal Rods RH-1206 connecting rod compatible with Honda CR250 78-01 ATC/TRX 250R ATV 85-86
$97.80
In Stock
SKU: RL-CR250-87-01
Connecting rod for Honda CR250 1978-2001 ATC/TRX 250R ATV 1985-1986, high-quality, superior, exact OEM specification, sold as a set.
Description
ROYAL RODS gives you the best riding performance without sacrificing the stability. One of the best brands in the market one can find. Win your race without your opponents knowing why.
Click to see:Dedicated Rod List
Click to see:Dedicated Rod List
Compatible Motorcycle Models
(Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)Honda
- ATC250R (1981-1986)
- CR250 (1997)
- CR250R (1978-2001)
- FourTrax 250 TRX250R 2x4 (1986-1989)
SPEC
- Part Number: RH-1206
- Compatibility: Compatible for Honda CR250 1978-2001, ATV ATC/TRX 250R 1985-1986
- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

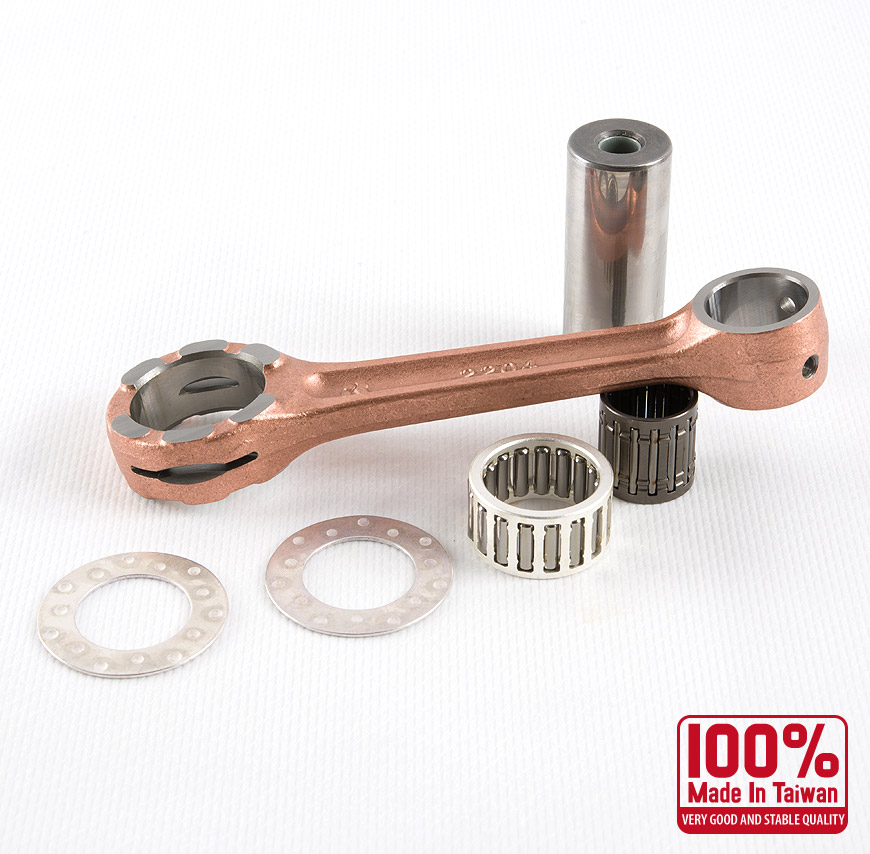

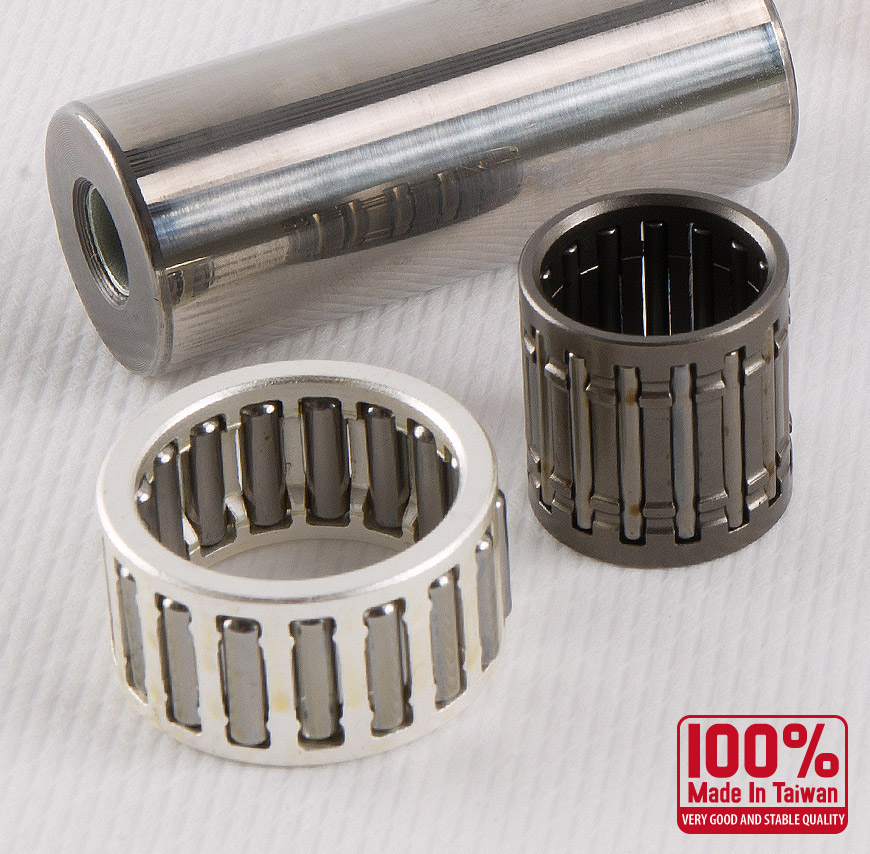

- Package: Connecting rod x 1, big end bearing x 1, small end bearing x 1, big end pin x 1, washer x 2
- Net Weight: 455g
- Total Weight: 500g (total package, included packing)
| ITEM NO. | A | B | C | D | E | unit: mm |
| RH-1206 | 31 | 22 | 125.3 | 16.8 | 20 | PIN: Ø24×59.7 WASHER: Ø40×24.2 |
| BIG END BEARING: 24*31*16.8 | ||||||
| SMALL END BEARING: 18*22*22.8 | ||||||
Video
