Royal Rods RH-1207 connecting rod compatible with Honda CR250 02-06
by Royal RodsEAN: 0799632027423
Click to see:Dedicated Rod List










- Part Number: RH-1207
- Brand Model: Compatible with Honda CR250(02-06)

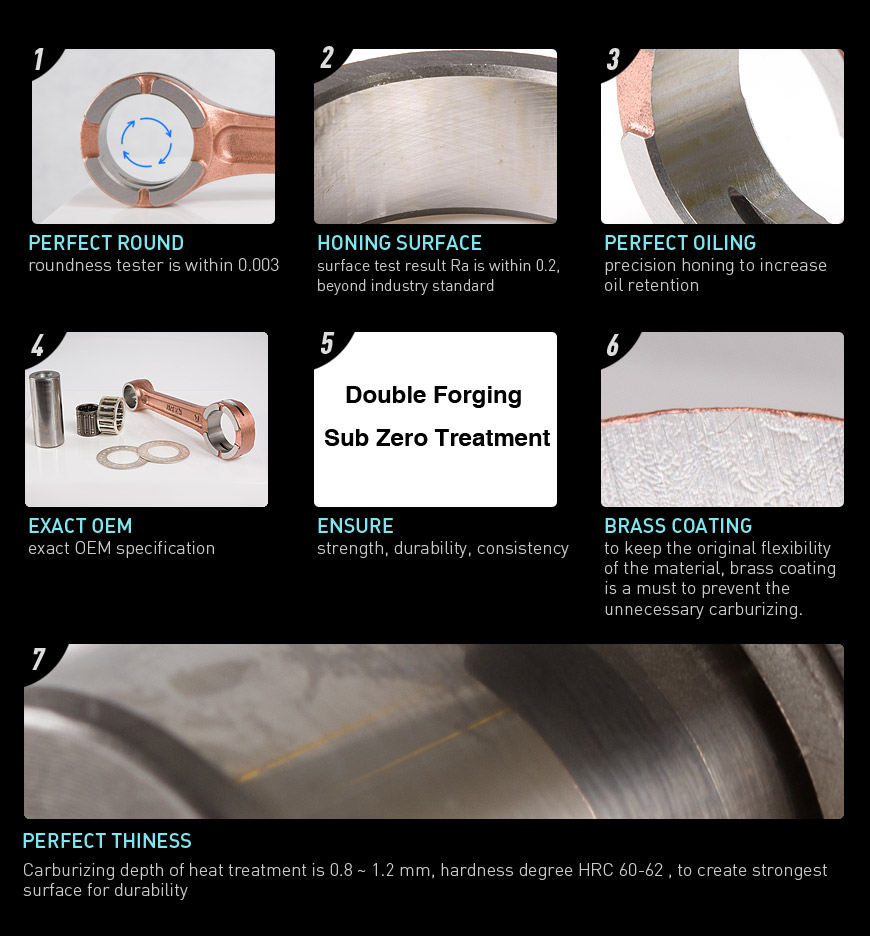

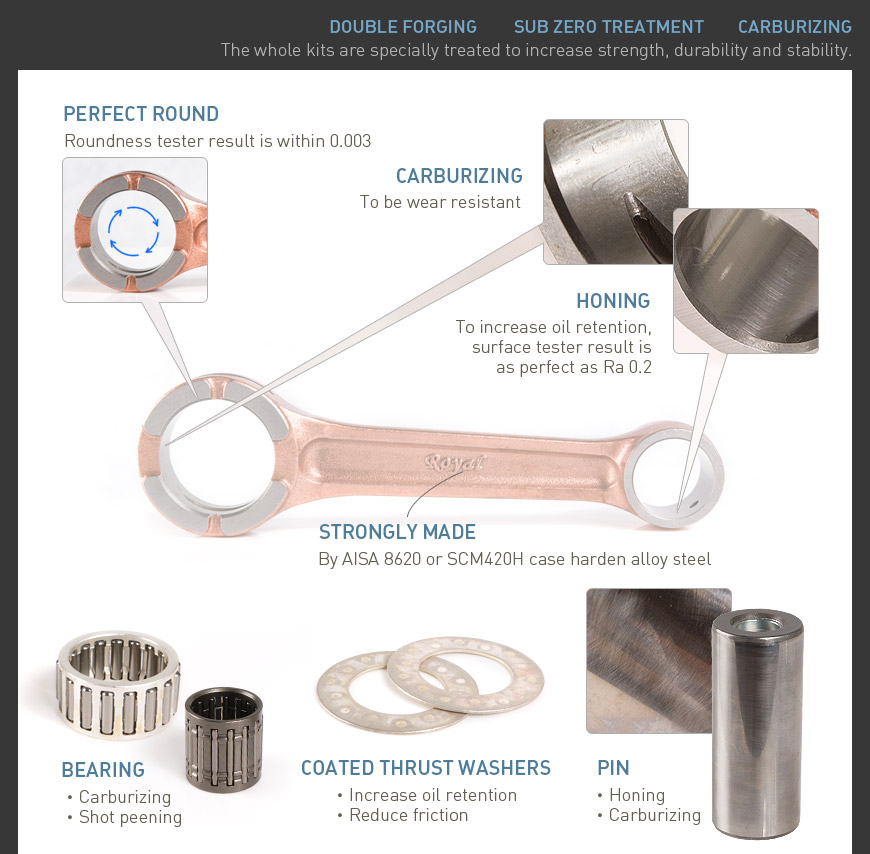

- Material: double forged heavy duty AISA or SCM420H case harden chromoly

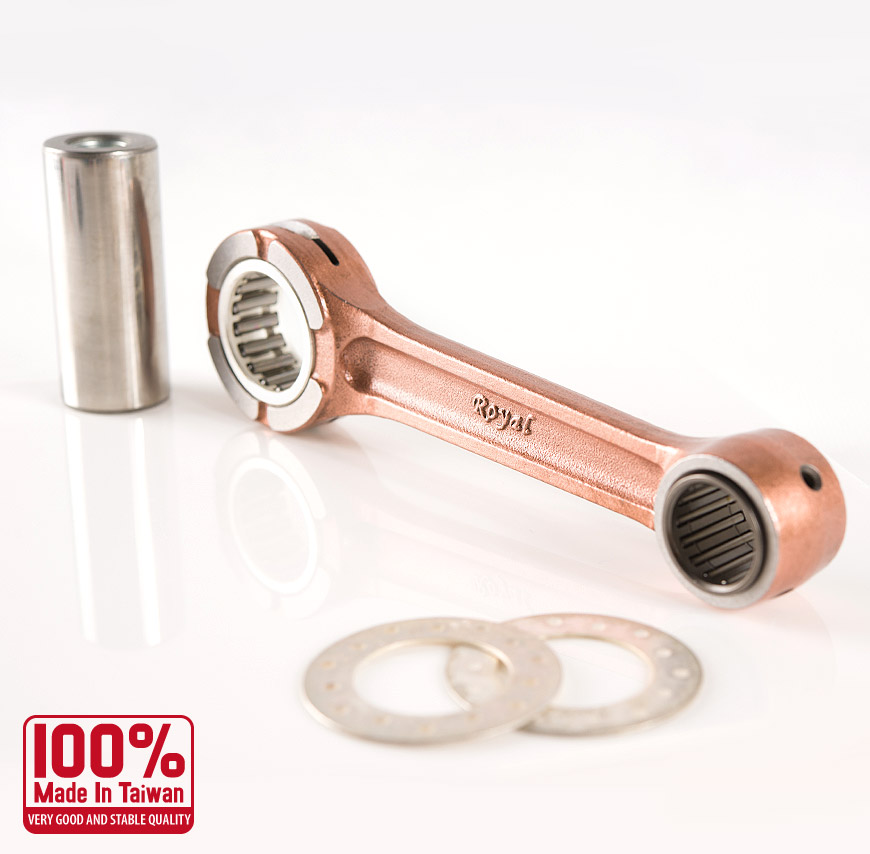

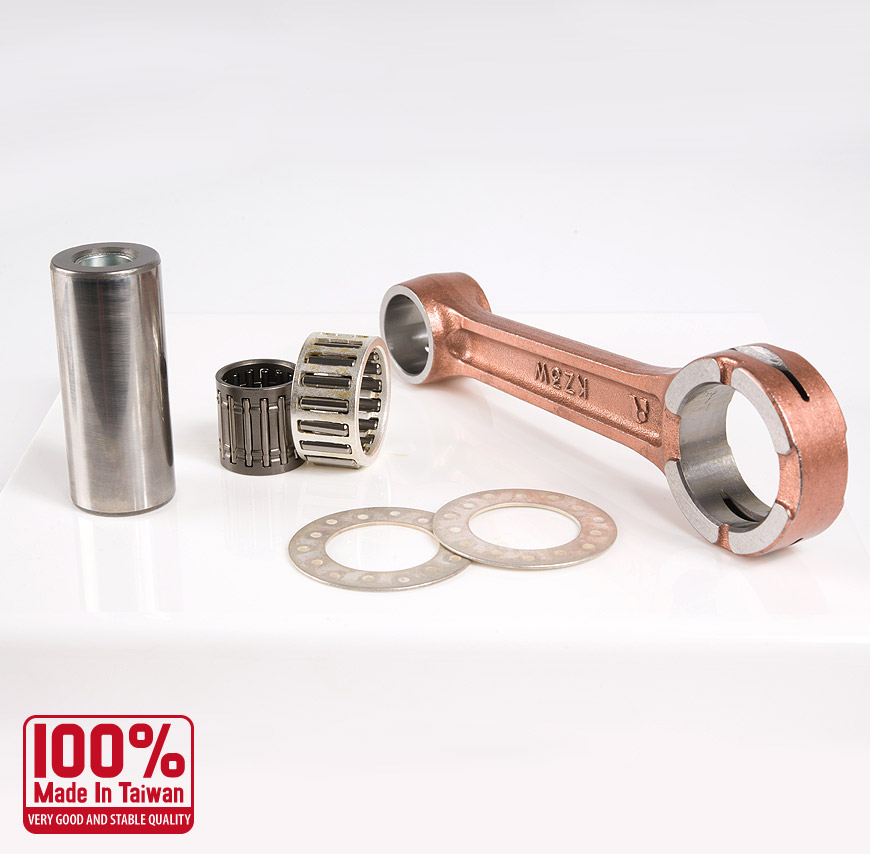

- Package: forged rod x 1,big end bearing x 1,small end bearing x 1,crank pin x 1,thrust washer x 2
- Weight: Net Weight:450g,total weight:495g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |

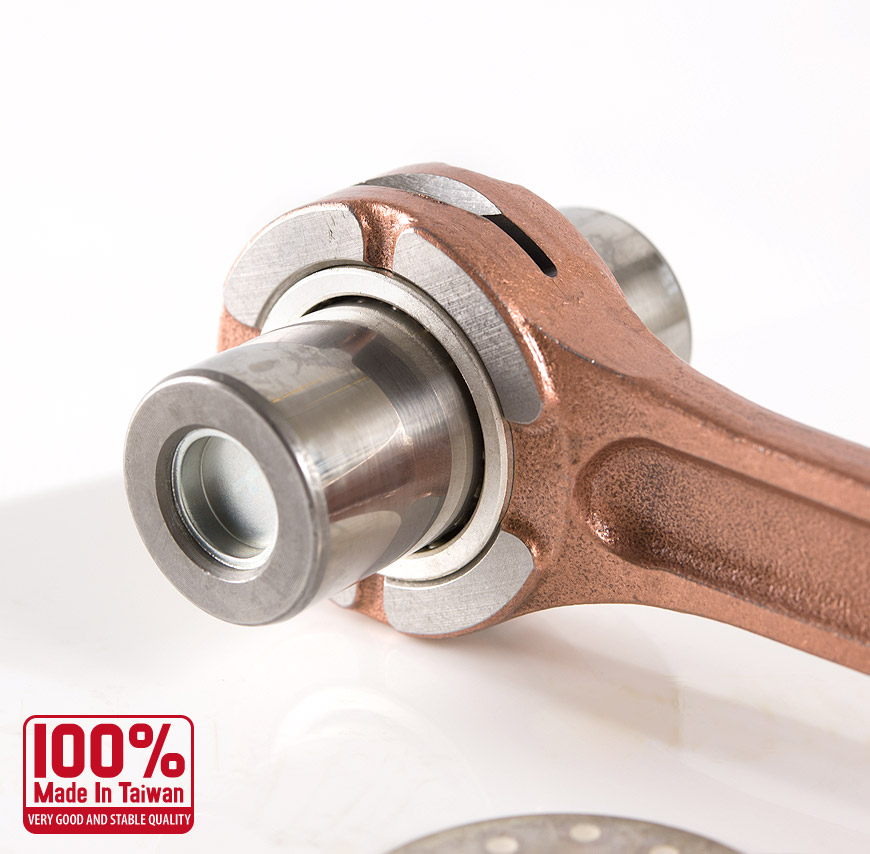

RH-1207 | Compatible with CR250(02-06) | 32 | 22 | 125.3 | 16.5 | 20 | PIN: Ø25x59.6 WASHER: Ø25.2*Ø42*1 |

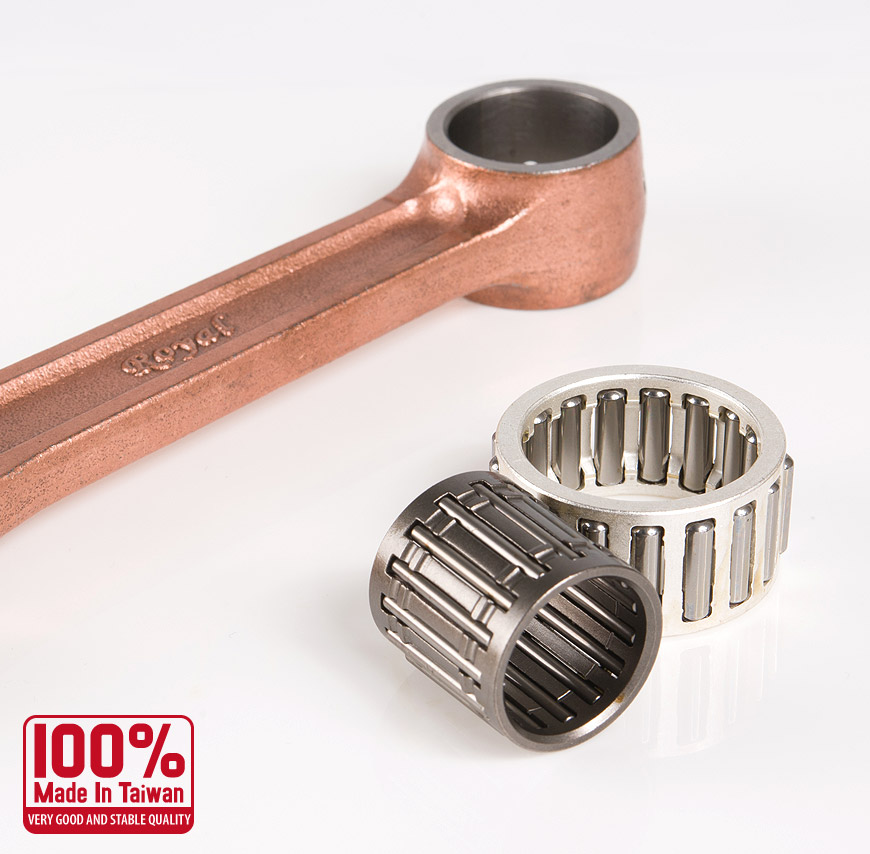

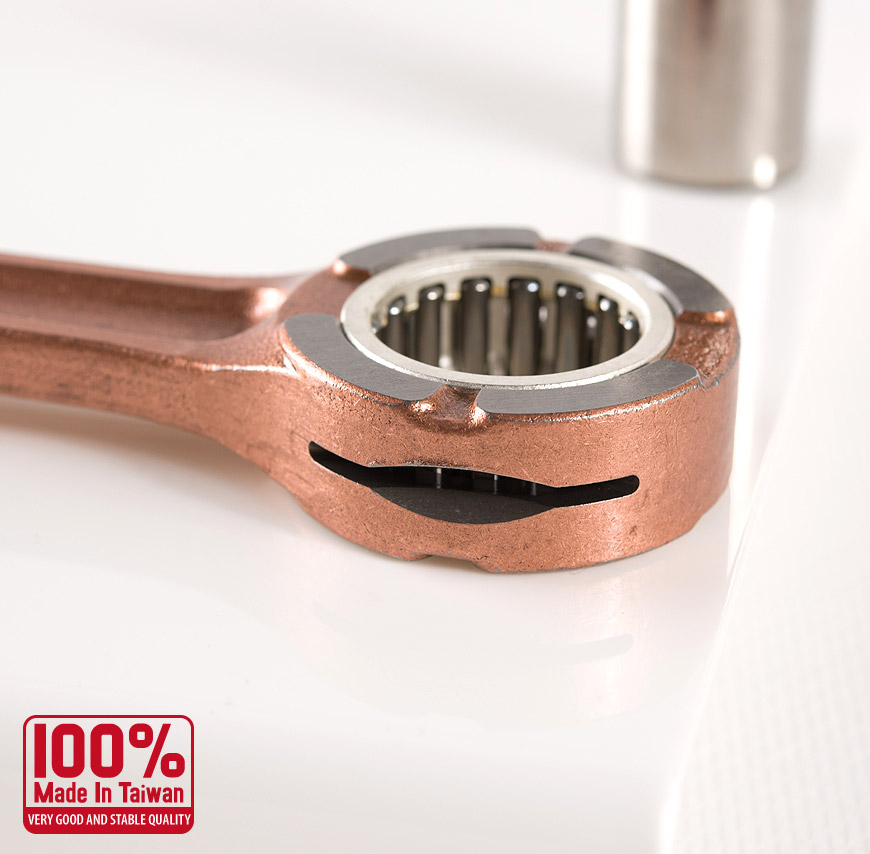

BIG END BEARING: 25*32*16.5 | |||||||

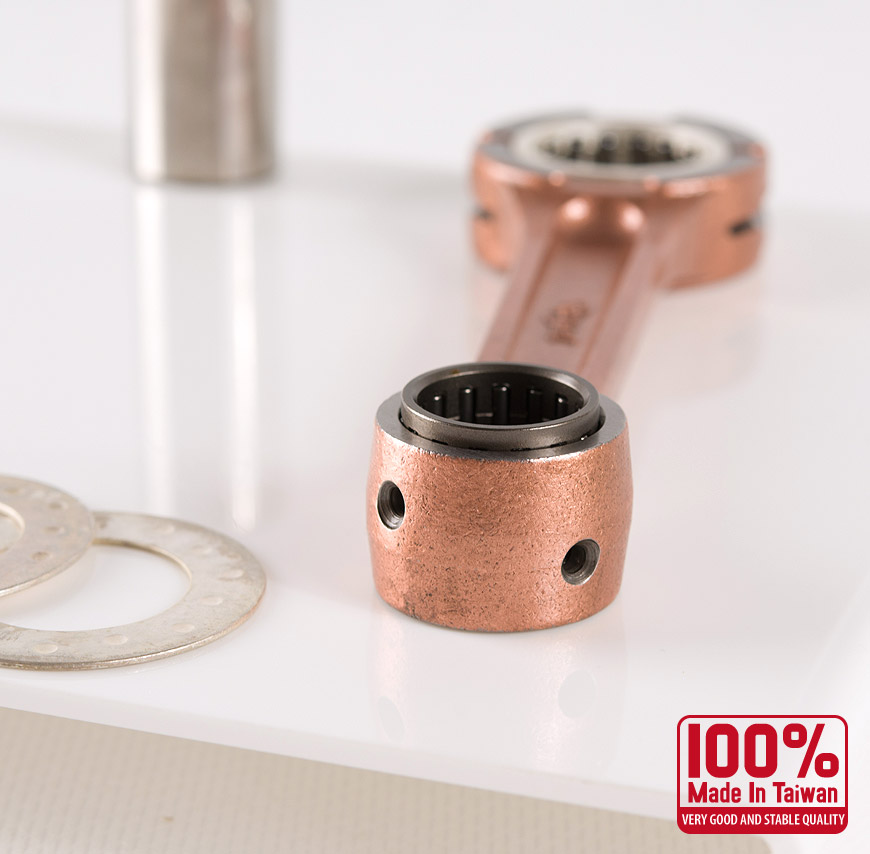

SMALL END BEARING: 18*22*22.8 |
