Royal Rods RM-6204 connecting rod RM-6204 compatible with KTM 85SX 03-12
by Royal RodsEAN: 0799418226170
Click to see:Dedicated Rod List





- Part Number: RM-6204
- Brand Model: compatible with KTM 85SX 03-12

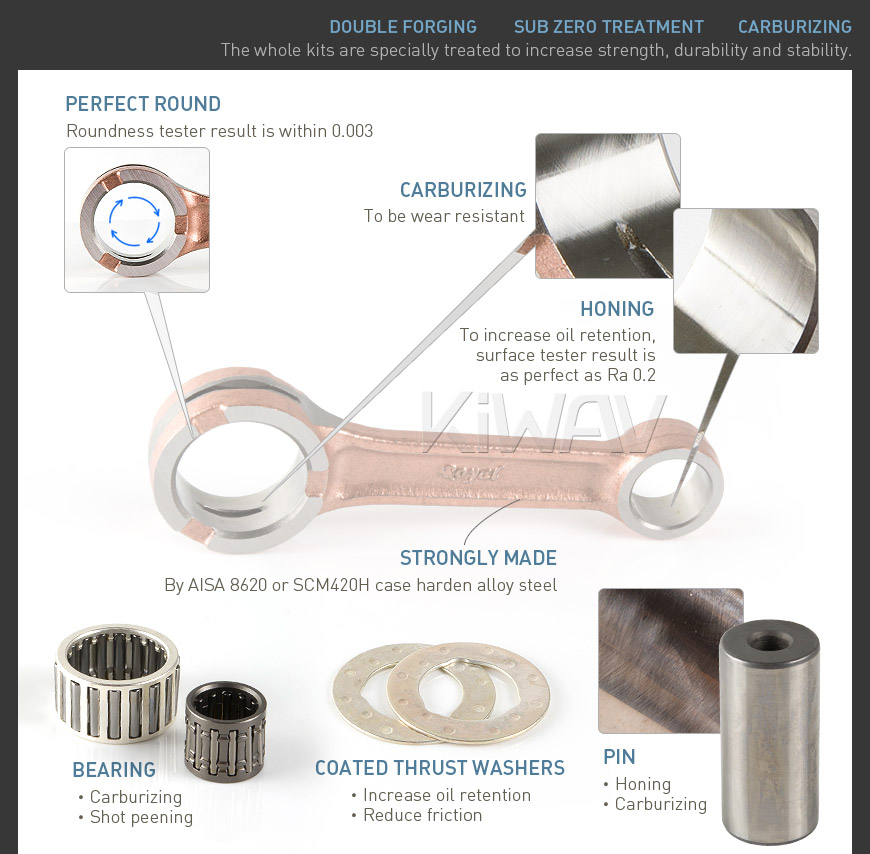

- Material: double forged heavy duty AISA or SCM420H case harden chromoly

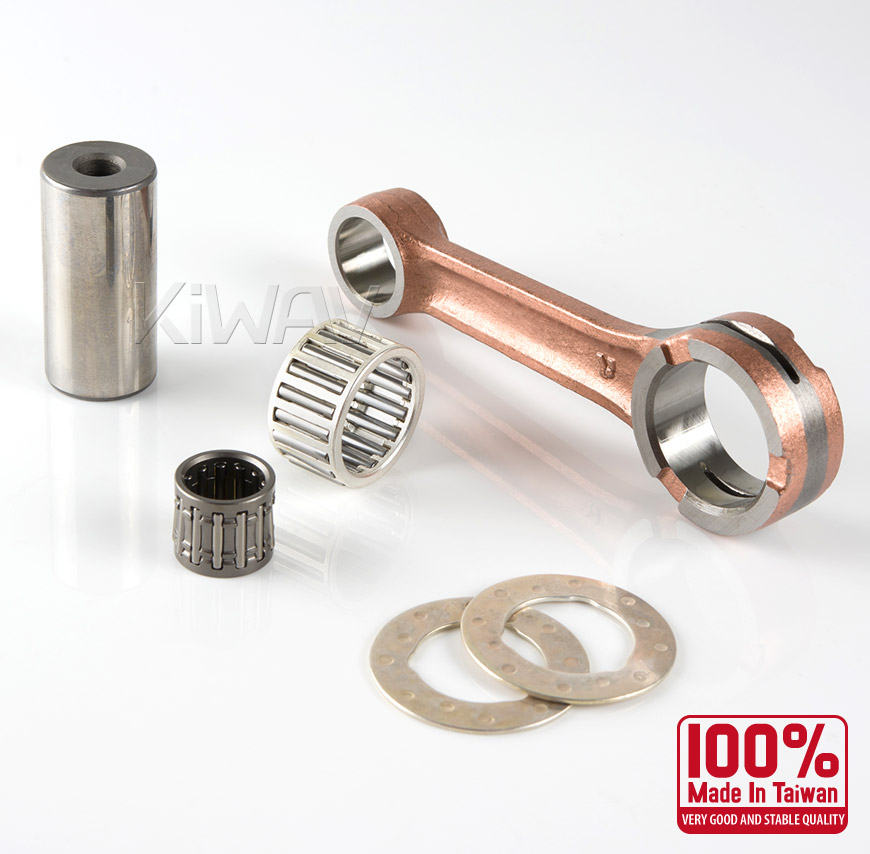

- Package: forged rod x 1,big end bearing x 1,small end bearing x 1,crank pin x 1,thrust washer x 2
- Weight: Net Weight:245g, Total Weight:280g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RM-6204 | compatible with KTM85 | 28 | 18 | 96 | 16 | 13 | PIN: Ø22*46 WASHER: Ø22.2*Ø37*1 |
BIG END BEARING: 22*28*15.8 | |||||||
SMALL END BEARING: 14*18*15.8 |
