Royal Rods RH-1029 connecting rod compatible with Honda XL500 XR500S 79-82
Click to see:Dedicated Rod List
Compatibility List
(Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)
Honda XL500S (1979-1981)
Honda XR500R Pro Link 500 (1981-1982)






- Part Number: RH-1029
- OEM Part Number: 13201-429-300
- Compatibility: Compatible for Honda XL500 / XR500S 1979-1982
- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

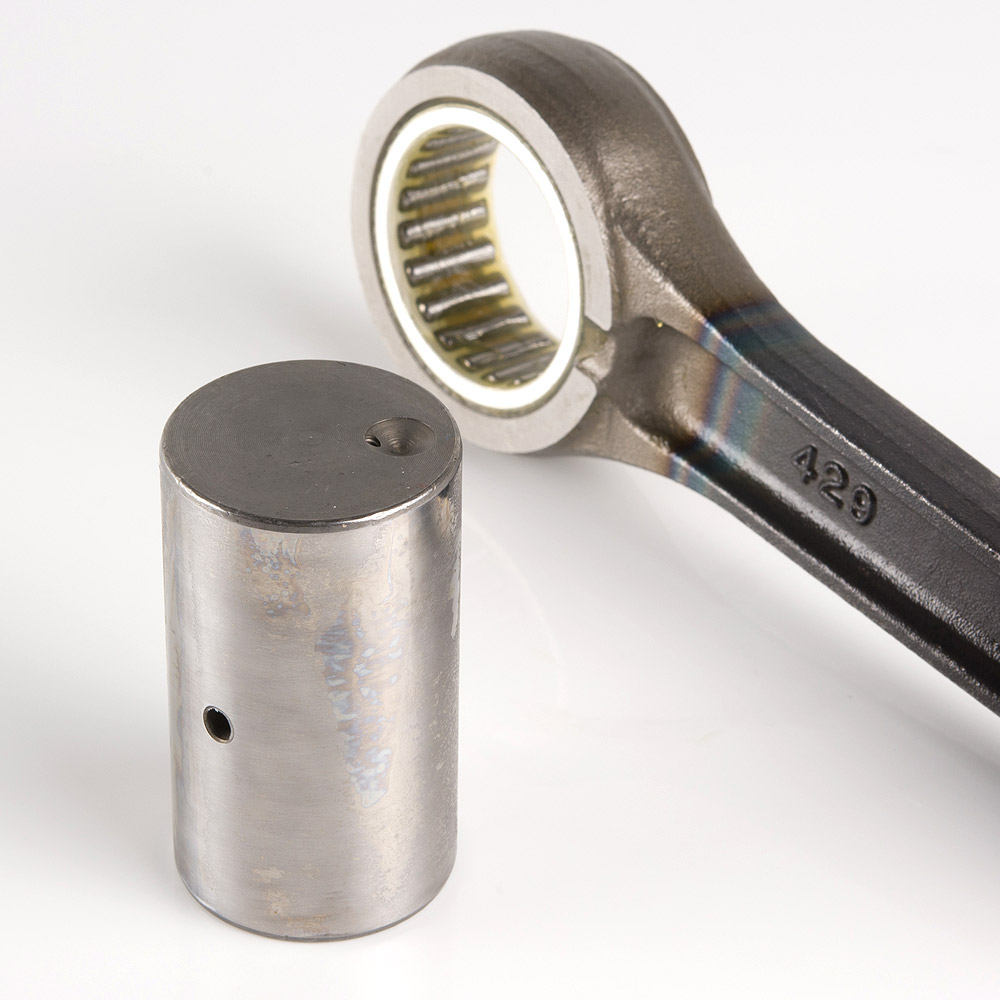

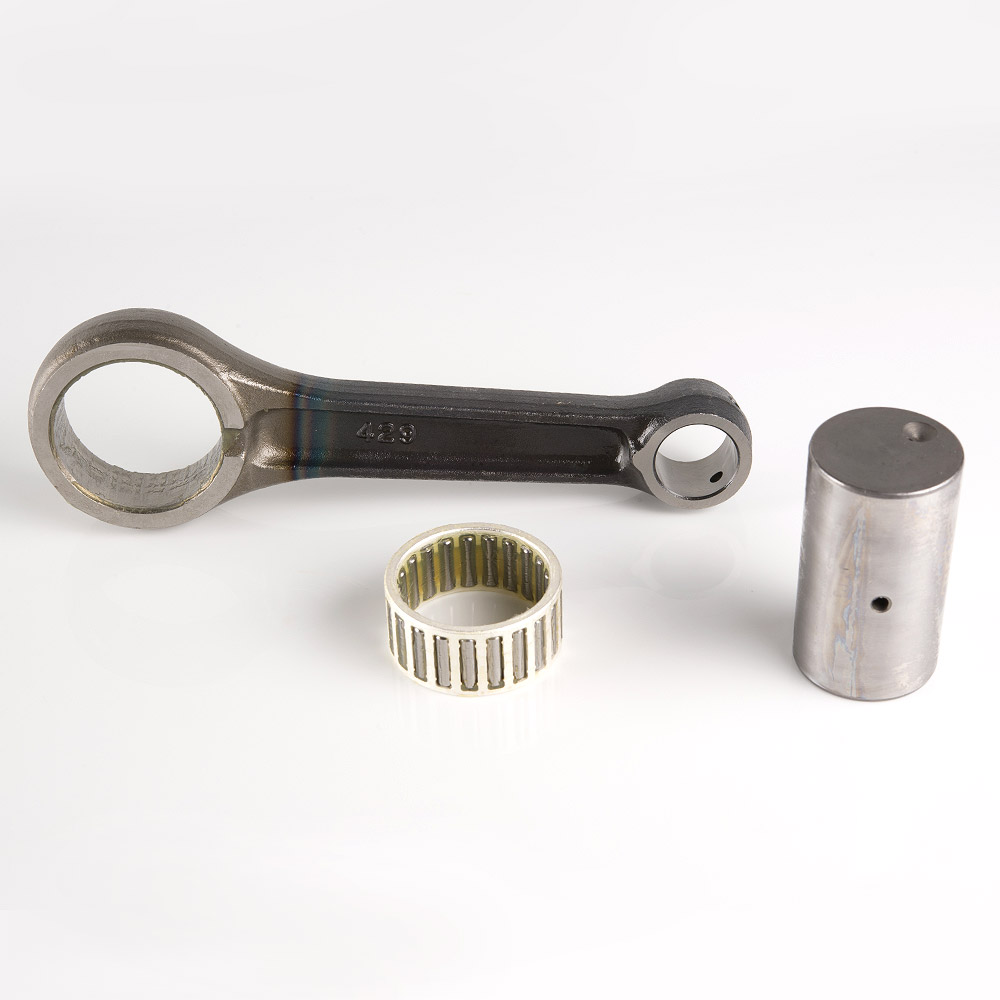

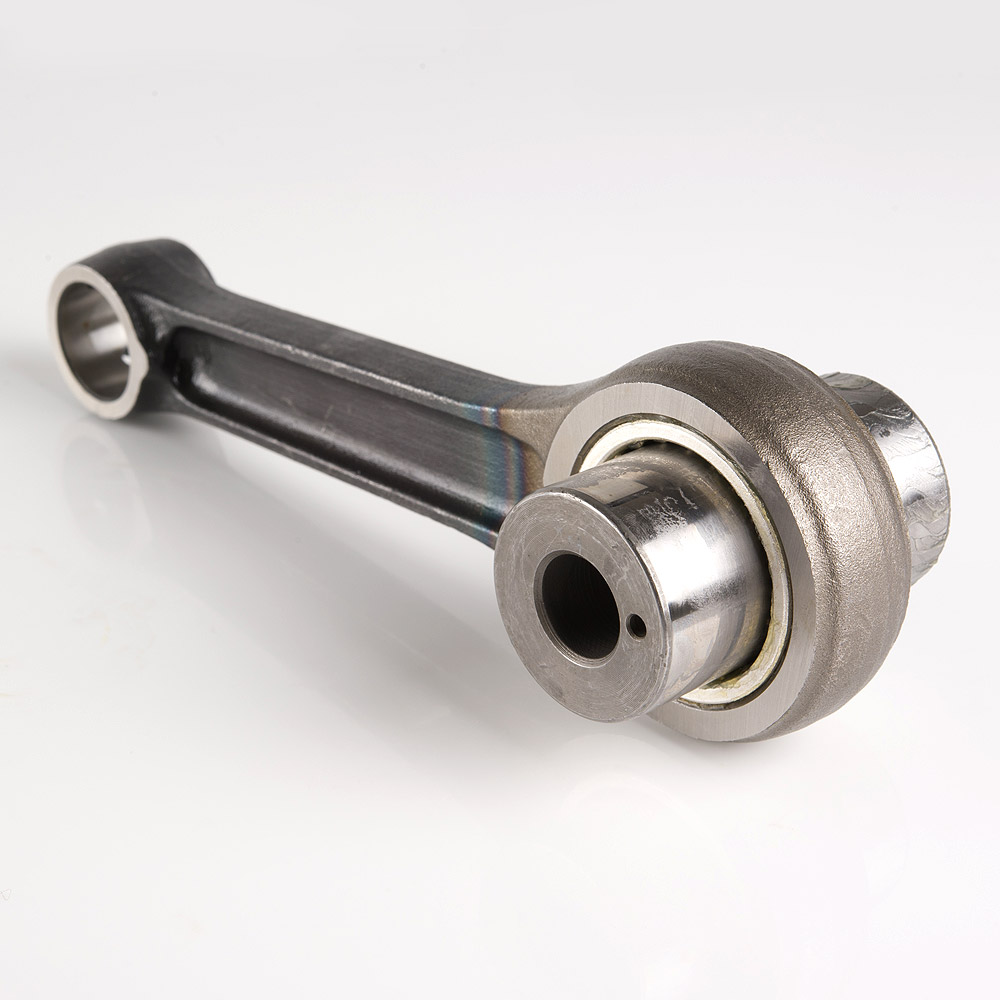

- Package: Forged rod x 1, big end bearing x 1, crank pin x 1
- Net Weight: 830g
- Total Weight: 890g (total package, included packing)

ITEM NO. | A | B | C | D | E | unit: mm |
RH-1029 | 42 | 21 | 141 | 20 | 20 | PIN: Ø34*60 |
BIG END BEARING: 34*42*19.8 |
