Royal Rods RH-1210 connecting rod compatible with Honda CRF450R 09-12
by Royal RodsEAN: 0799632027379
Click to see:Dedicated Rod List








- Part Number:RH-1210
- Brand Model:Compatible with Honda CRF450R(09-12)
- Material:double forged heavy duty AISA or SCM420H case harden chromoly

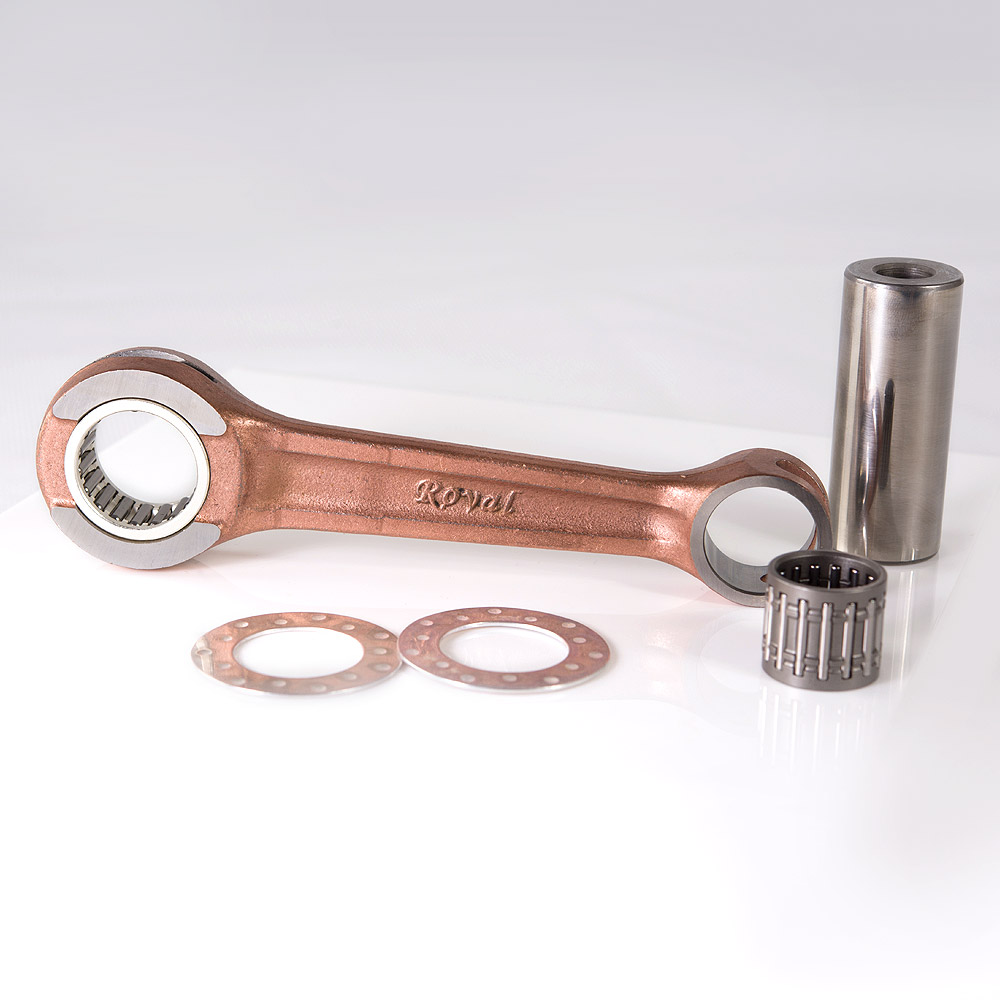

- Package:forged rod x 1,big end bearing x 1,small end bearing x 1,crank pin x 1,thrust washer x 2
- Net Weight:Net Weight:430g,total weight:475g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RH-1210 | Compatible with Honda CRF450R(09-10) | 41 | 19 | 102 | 19.8 | 18(15.2) | PIN: Ø33x60.8 WASHER: Ø33.2*Ø50*1 |
BIG END BEARING: 33*41*19.8 |
