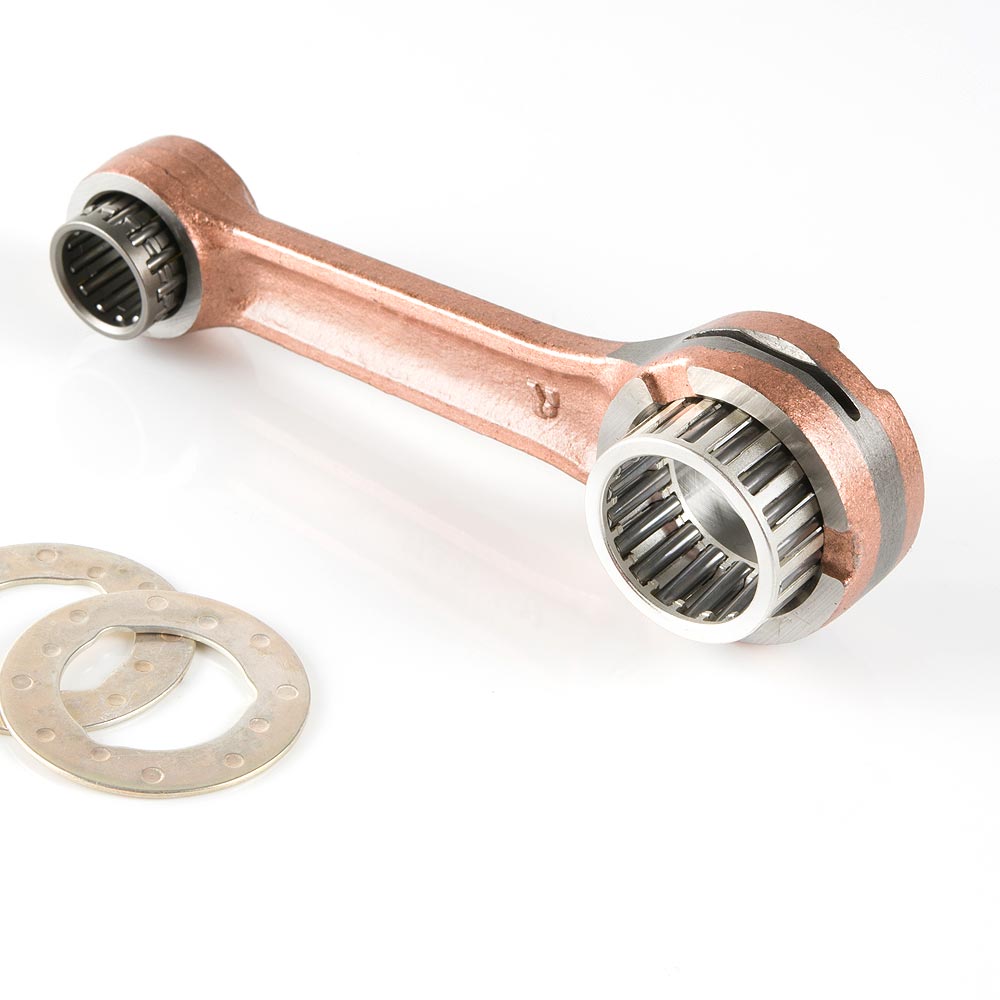

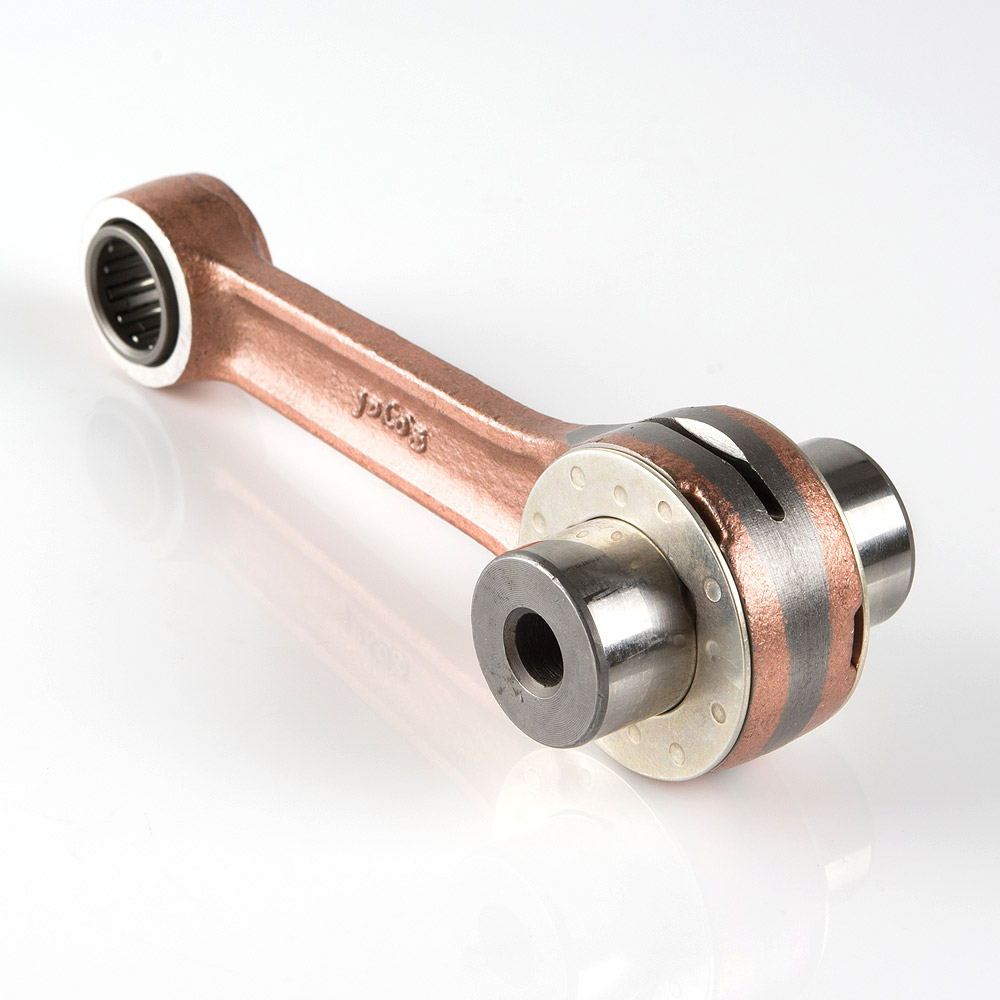

Royal Rods RM-6204 connecting rod RM-6204 compatible with KTM 85SX 03-12 105SX 04-11
RL-KTM85__1
RL-KTM85__2
RL-KTM85__3

Royal Rods RM-6204 connecting rod RM-6204 compatible with KTM 85SX 03-12 105SX 04-11

0 Rating
$97.20
In Stock
SKU: RL-KTM85
Back to: connecting rods
ROYAL RODS gives you the best riding performance without sacrificing the stability. One of the best brands in the market one can find. Win your race without your opponents knowing why.
Click to see:Dedicated Rod List
  • Part Number: RM-6204
  • Compatibility: Compatible for KTM 85SX 2003-2012, 105SX 2004-2011
  • Material: Double forged heavy duty AISA or SCM420H case harden chromoly

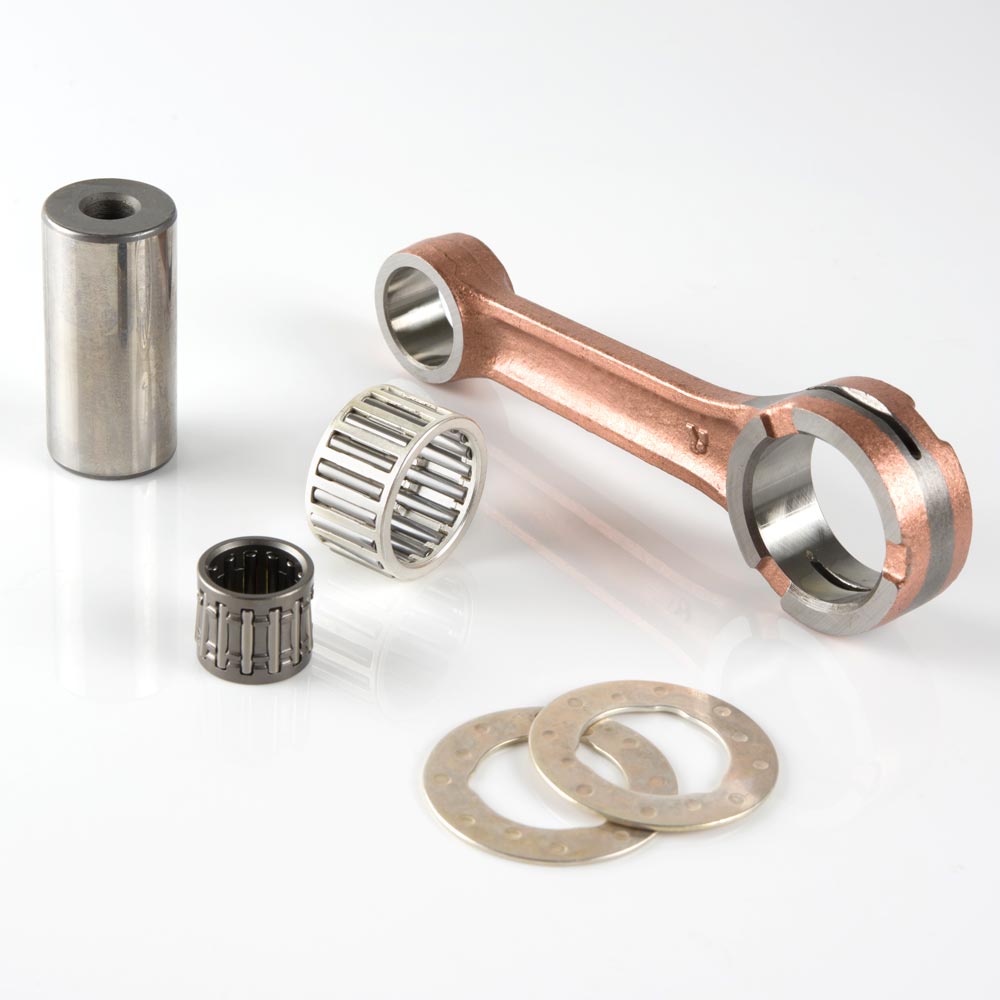

  • Package: Forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
  • Net Weight: 245g
  • Total Weight: 280g (total package,included packing)

    • ITEM NO. A B C D E unit: mm
    RM-6204 28 18 96 16 13 PIN: Ø22x46
    WASHER: Ø22.2xØ37x1
    BIG END BEARING: 22*28*15.8
    SMALL END BEARING: 14*18*18.5
