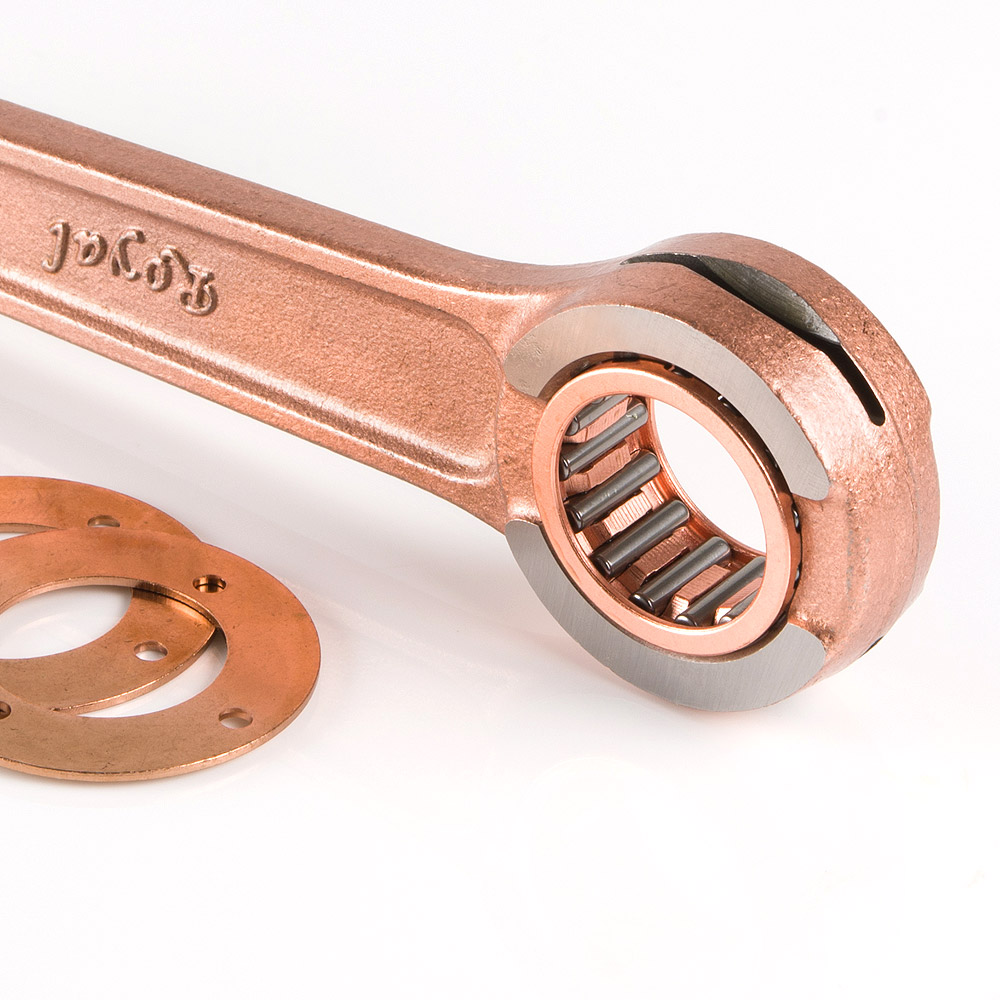

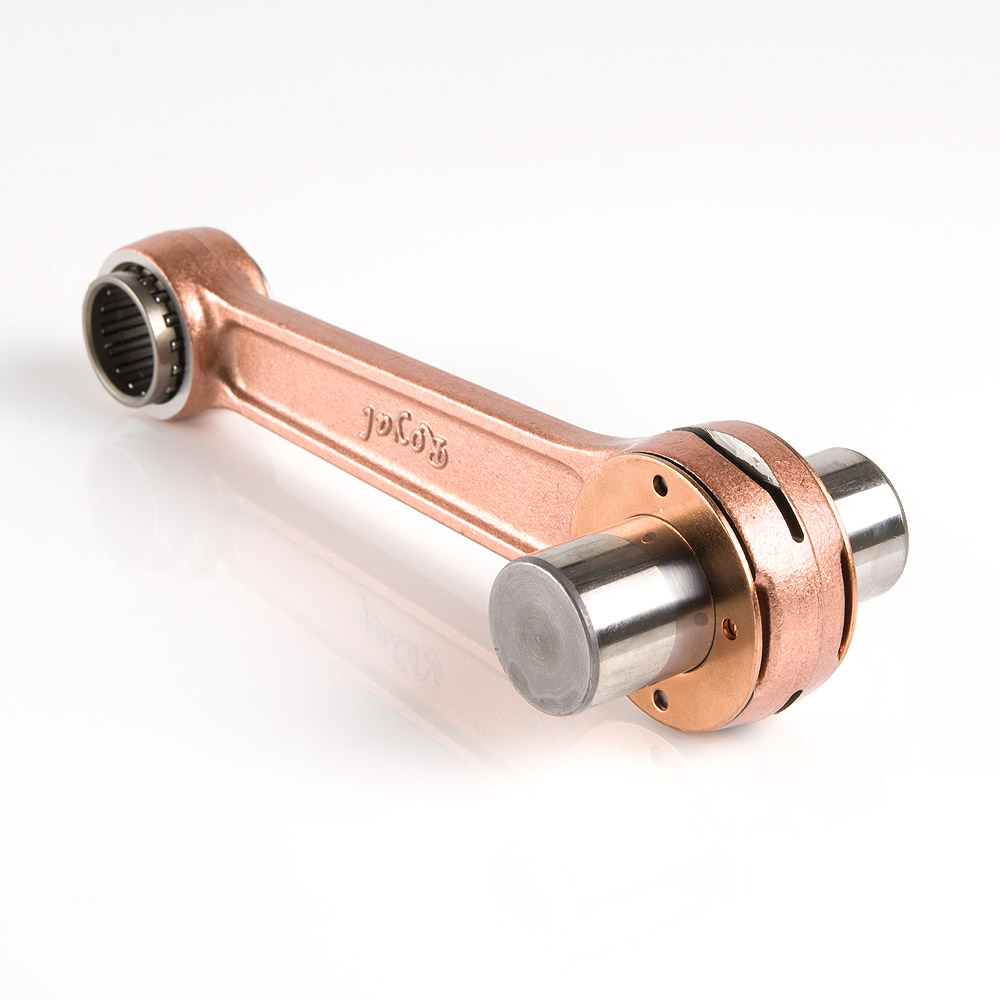

Royal Rods RO-8208 connecting rod compatible with MAICO250
by Royal RodsEAN: 0799418222530
Click to see:Dedicated Rod List






- Part Number: RO-8208
- Brand Model: MAICO250 1983~current
- Material: double forged heavy duty AISA or SCM420H case harden chromoly

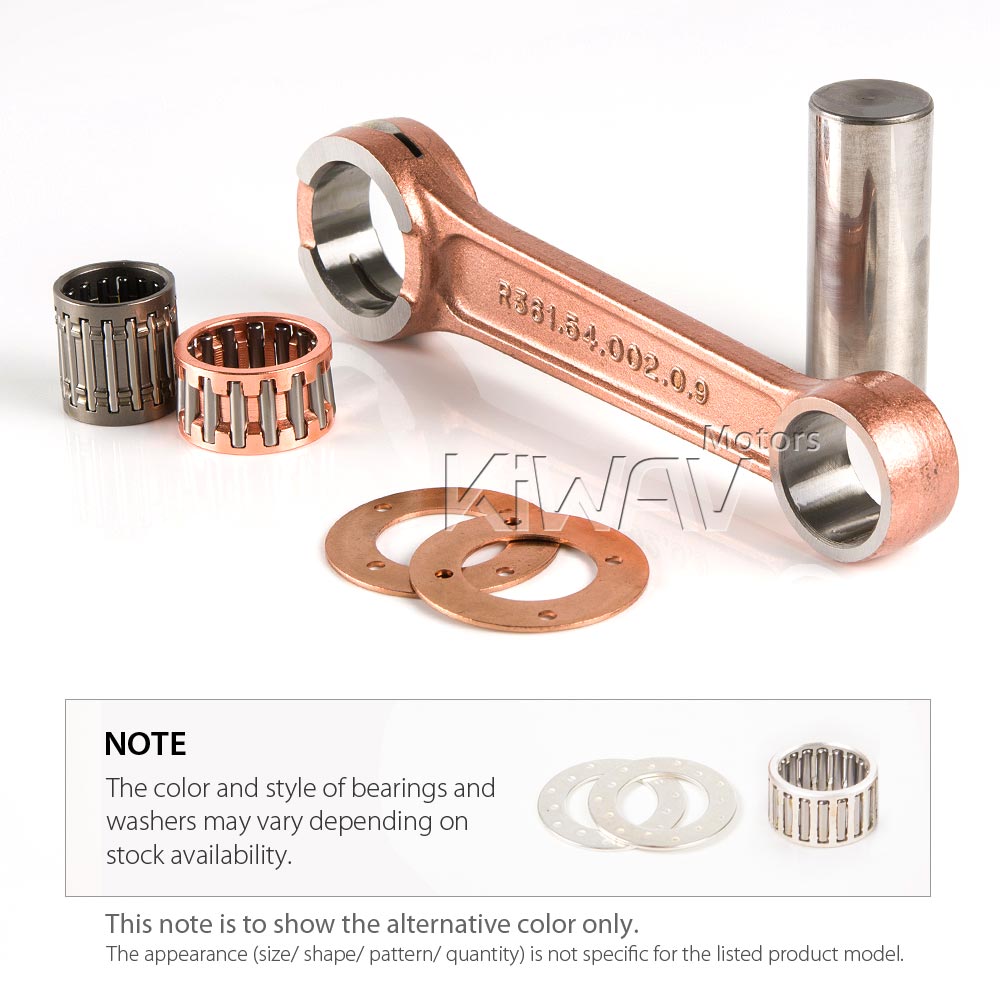

- Package: forged rod x 1,big end bearing x 1,small end bearingx 1,crank pin x 1,thrust washer x 2
- Weight: Net Weight:460g,total weight:520g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RO-8208 | MAICO250 ('83~current) |
28 | 22 | 125 | 16 | 16 | PIN: Ø22*58.5 WASHER: Ø22.1*Ø38.6*1.3 |
BIG END BEARING: 22*28*15.8 | |||||||
SMALL END BEARING: 18*22*23.5 |
