Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100
Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100
Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100
Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100
Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100

Royal Rods RS-3012 connecting rod compatible with Suzuki RM125 81-83 AX-100

0 Rating
$44.80
In Stock
SKU: RL-AX100
Connecting rod for Suzuki RM125 1981`1983 AX-100, high-quality, superior, exact OEM specification, sold as a set.

Description

ROYAL RODS gives you the best riding performance without sacrificing the stability. One of the best brands in the market one can find. Win your race without your opponents knowing why.
  • OEM Part Number: 12161-23400, 12161-14110

    • Click to see:Dedicated Rod List

    Compatible Motorcycle Models

    (Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)

    Suzuki

    • AX100 AX100 (2015-2021)
    • RM125 RM125 (1981-1983)

    Video

    SPEC

    • OEM Part Number: 12161-23400, 12161-14110
    • Compatibility: Compatible for AX-100/AX-100D all year, RM125 1981-1983
    • Material: Double forged heavy duty AISA or SCM420H case harden chromoly

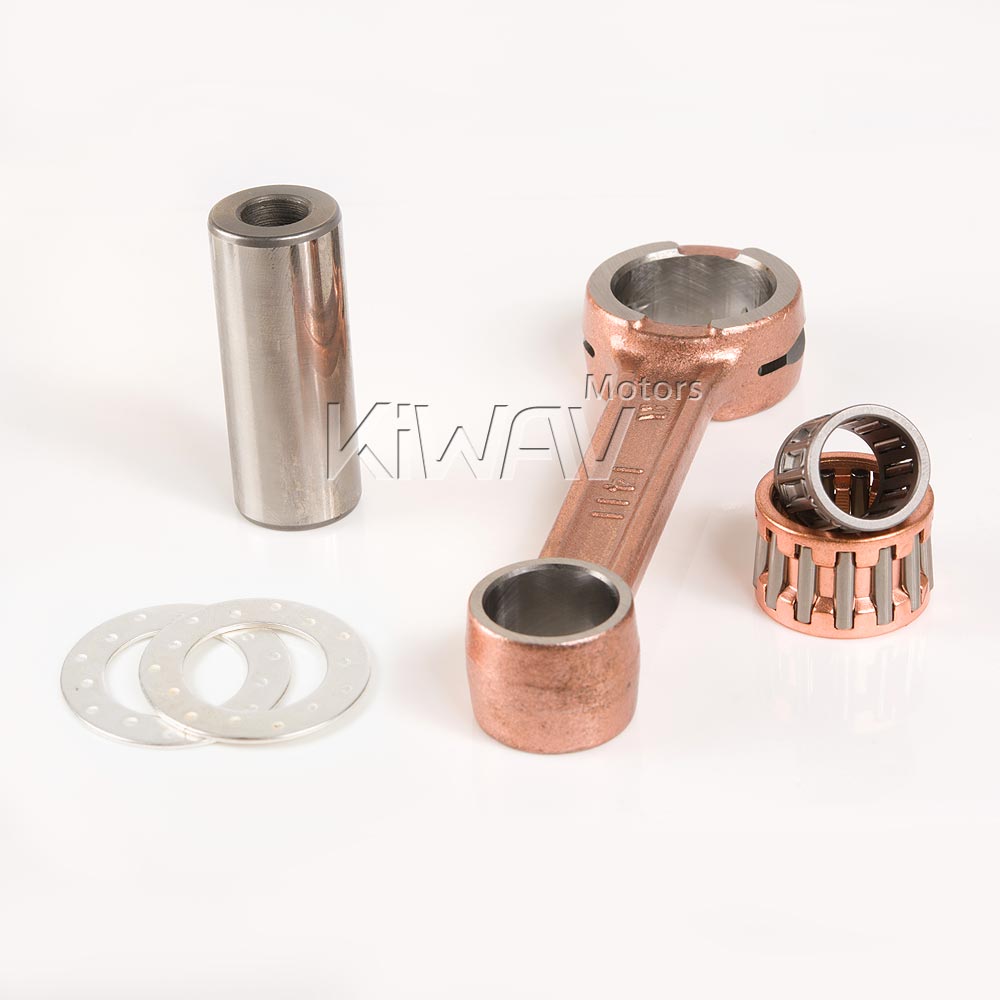

    • Package: Forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
    • Net Weight: 270g
    • Total Weight: 295g (total package,included packing)

      • ITEM NO. A B C D E unit: mm
      RS-3012 26 18 100 17 18 PIN: Ø20*50
      WASHER: Ø33*Ø20.2*1
      BIG END BEARING: 20*26*16.8
      SMALL END BEARING: 14*18*19.8
