Royal Rods RY-2201 connecting rod compatible with Yamaha YZ85(02-18) YZ80(93-01)

0 Rating
$65.90
Out of Stock
SKU: RL-YZ80-02-07
Notify Me
Ask a question
Back to: connecting rods
ROYAL RODS gives you the best riding performance without sacrificing the stability. One of the best brands in the market one can find. Win your race without your opponents knowing why.
Click to see:Dedicated Rod List

Compatibility List
(Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)

Yamaha YZ80 (1993-2001)
Yamaha YZ85 (2002-2018)
Yamaha YZ85 Team Yamaha (2011-2014)
  • Part Number: RY-2201
  • OEM Part Number: 4ES-11651-10-00
  • Compatibility: Compatible for YAMAHA YZ85 2002-2018, YZ80 1993-2001
  • Material: Double forged heavy duty AISA or SCM420H case harden chromoly

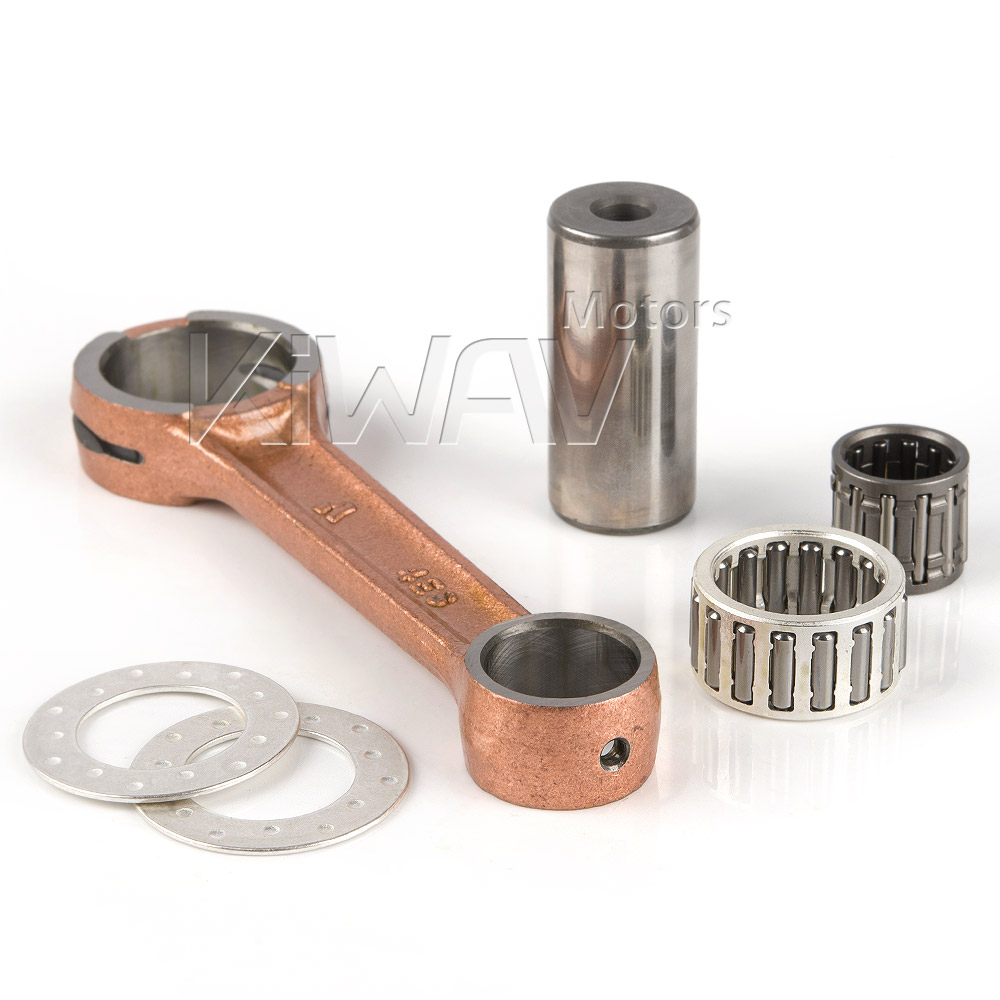

  • Package: Forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
  • Net Weight: 235g
  • Total Weight: 260g (total package,included packing)

    • ITEM NO. A B C D E unit: mm
    RY-2201 26 18 96 14 14 PIN: Ø20*43
    WAHSER: Ø33*Ø20.2*1
    BIG END BEARING: 20*26*13.8
    SMALL END BEARING: 14*18*16.2
