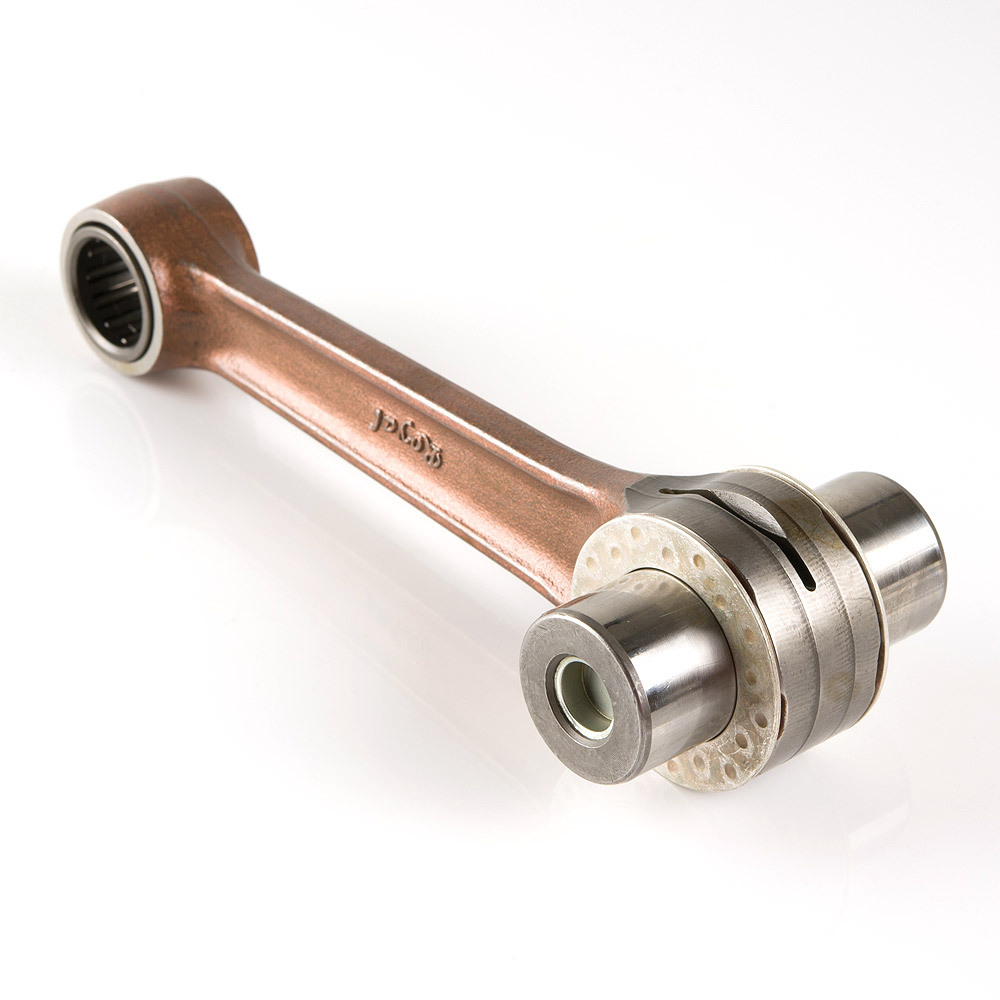

Royal Rods RY-2206 connecting rod compatible with Yamaha YZ250 (83-89)
by Royal RodsEAN: 0799418222615
Click to see:Dedicated Rod List





- Part Number: RY-2206
- Brand Model: Compatible with Yamaha YZ250 (83-89)
- Material: double forged heavy duty AISA or SCM420H case harden chromoly

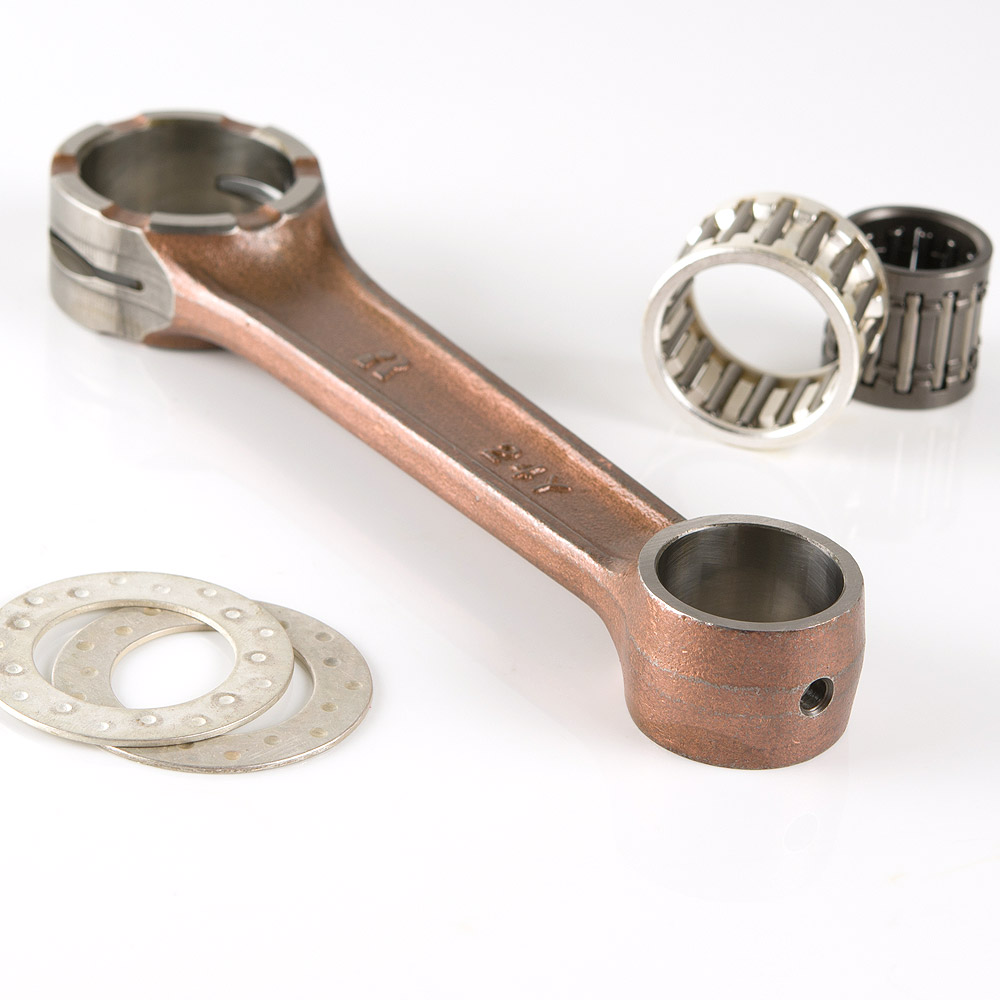

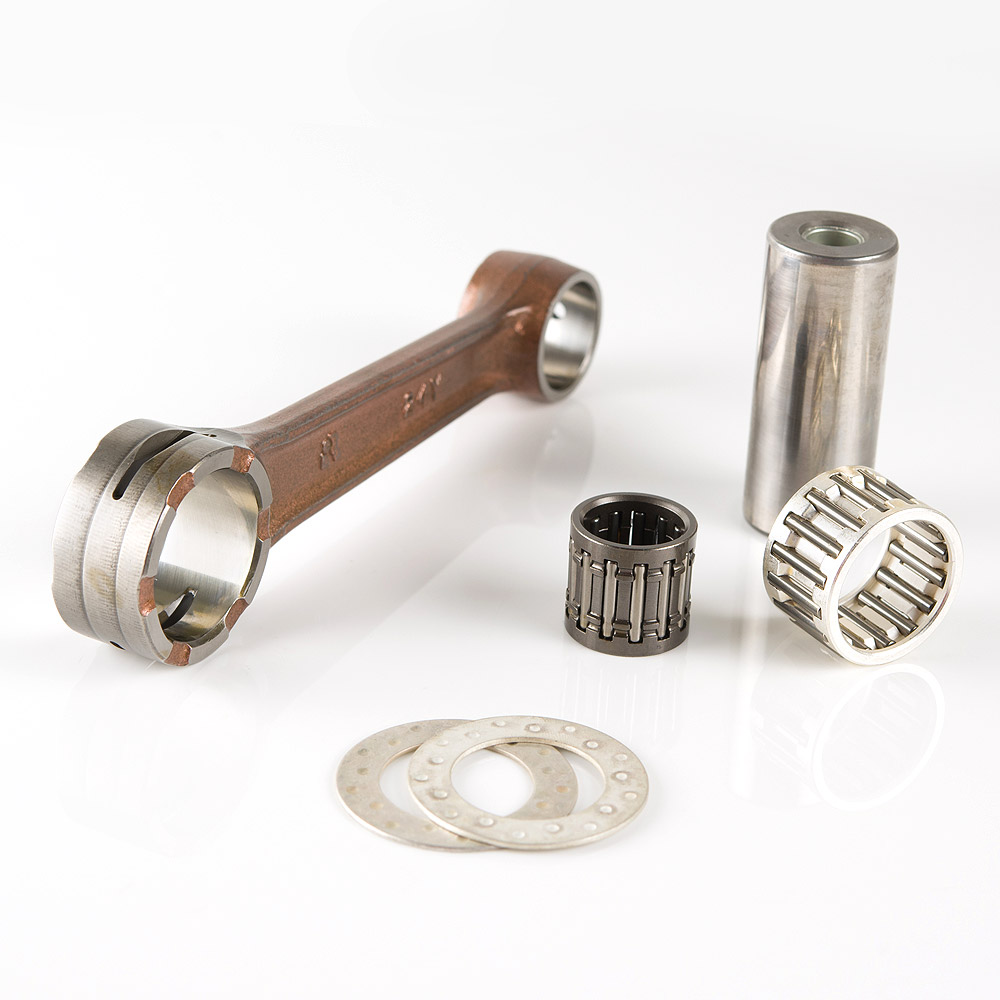

- Package: forged rod x 1,big end bearing x 1,small end bearing x 1,crank pin x 1,thrust washer x 2
- Weight: Net Weight:450g,Total weight:600g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RY-2206 | Compatible with Yamaha YZ250 (83-89) | 31 | 23 | 130 | 20 | 20 | PIN: Ø25*60 WASHER: Ø25.2*Ø40*1 |
BIG END BEARING: 25*31*19.8 | |||||||
SMALL END BEARING: 18*23*21.8 |
