Royal Rods RY-2209 connecting rod compatible with Yamaha YZ250 99-22 YZ250X 16-22
Click to see:Dedicated Rod List
Compatibility List
(Compatibility doesn't ensure suitability. Please verify the mirror measurements.) (Contact us with newest models not listed.)
Yamaha YZ250 Monster Energy Yamaha Racing Edition (2022)
Yamaha YZ250X (2016-2022)
- Part Number: RY-2209
- Compatibility: Compatible for Yamaha YZ250 1999-2022, YZ250X 2016-2022
- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

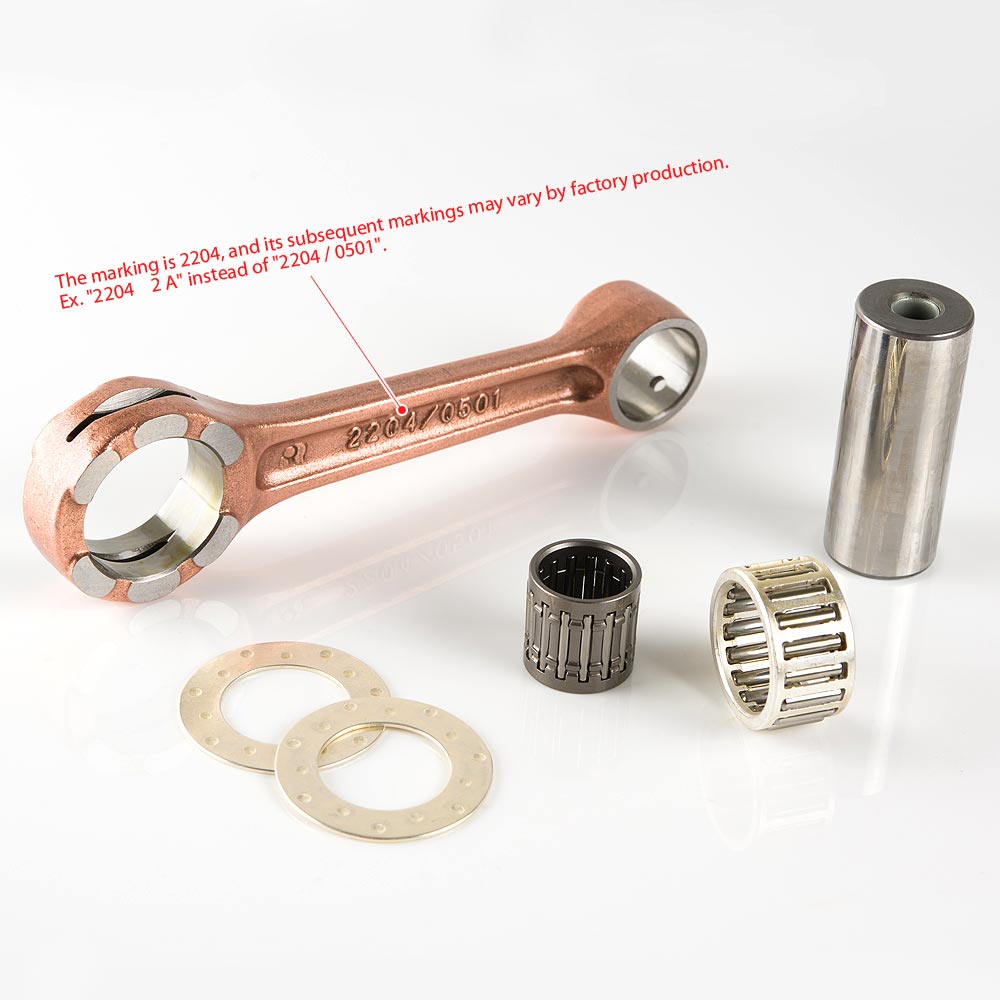

- Package: Forged rod x 1,big end bearing x 1,small end bearing x 1,crank pin x 1,thrust washer x 2
- Net Weight: 500g
- Total Weight: 560g (total package,included packing)
ITEM NO. | A | B | C | D | E | unit: mm |
RY-2209 | 31 | 22 | 125 | 16.8 | 20 | PIN: Ø24*58.7 WASHER: Ø24.2*Ø40*1 |
BIG END BEARING: 24*31*16.8 | ||||||
SMALL END BEARING: 18*22*21.8 |
