Royal Rods RY-2231 connecting rod for Yamaha YZ125 2022~
Click to see:Dedicated Rod List
- Part Number: RY-2231
- OEM Part Number: B4X-11681-00-00, fits crankshaft part# B4X-11400-00-00
- Compatibility: Compatible for Yamaha YZ125 2022~, YZ125 Monster 2022~, YZ125X 2023~
- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

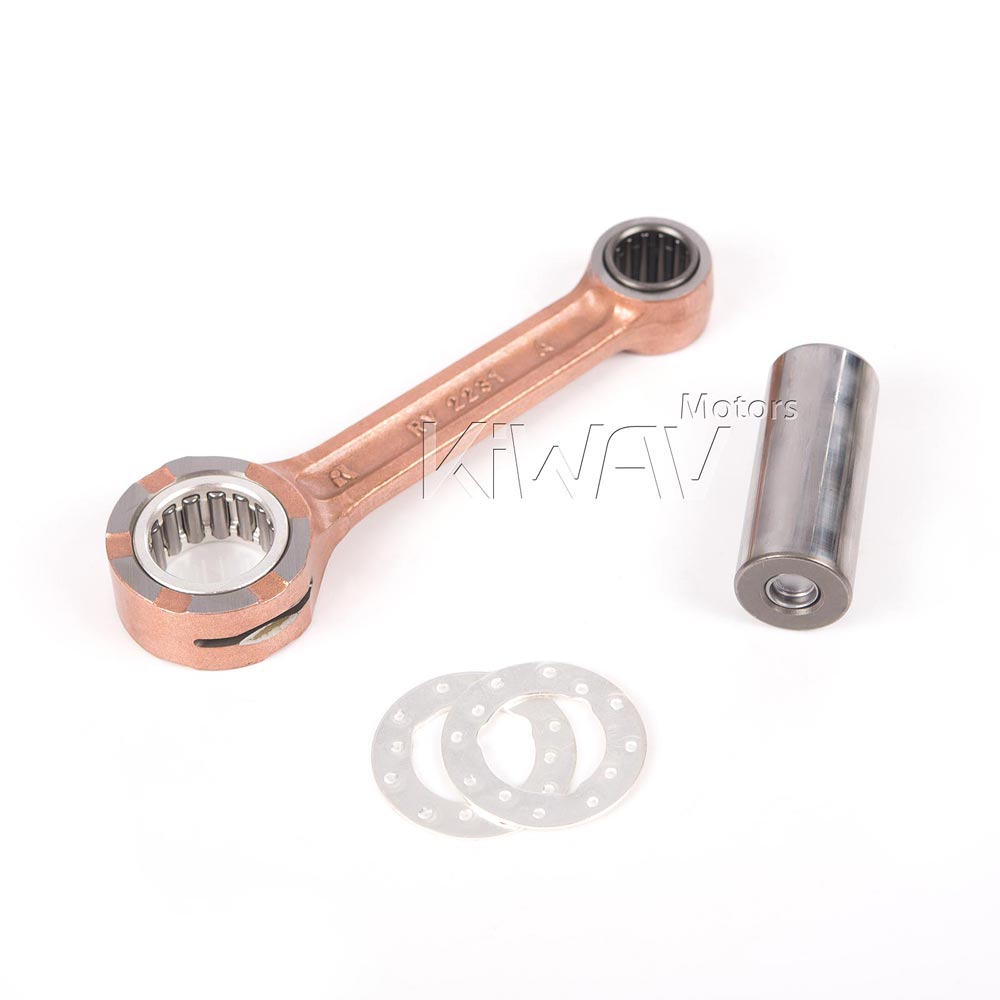

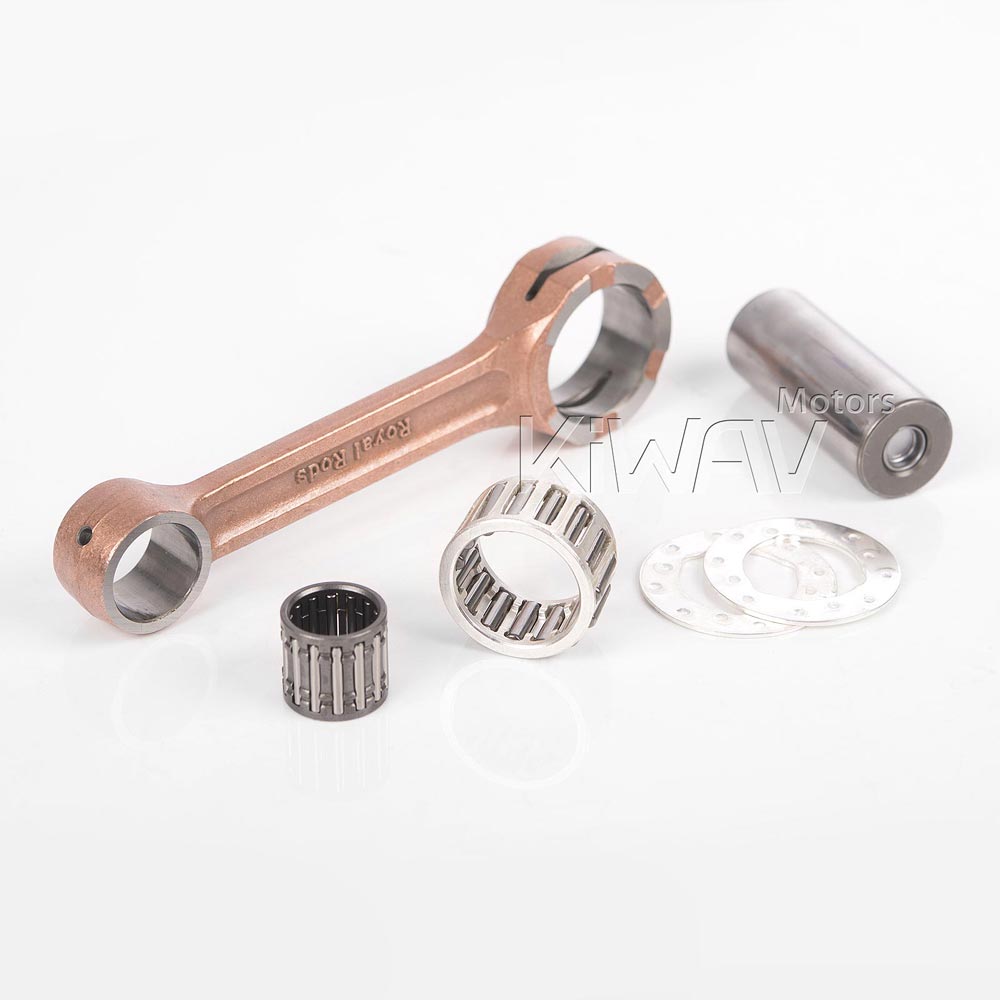

- Package: Forged connecting rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, washer x 2
- Net Weight: 335g
- Total Weight: 360g (total package,included packing)
ITEM NO. | A | B | C | D | E | unit: mm |
RY-2231 | 29 | 19 | 110 | 17 | 16 | PIN: Ø22*54.5 WASHER: Ø22×Ø37*1.0 |
BIG END BEARING: 22*29*16.8 | ||||||
SMALL END BEARING: 15*19*17.3 |
