Royal Rods RM-6216 connecting rod compatible with KTM360/380(95-02)
by Royal RodsEAN: 0680577050877
Click to see:Dedicated Rod List







- Reference OEM Number: 54630218200
- Brand Model: compatible with KTM360/380(95-02)

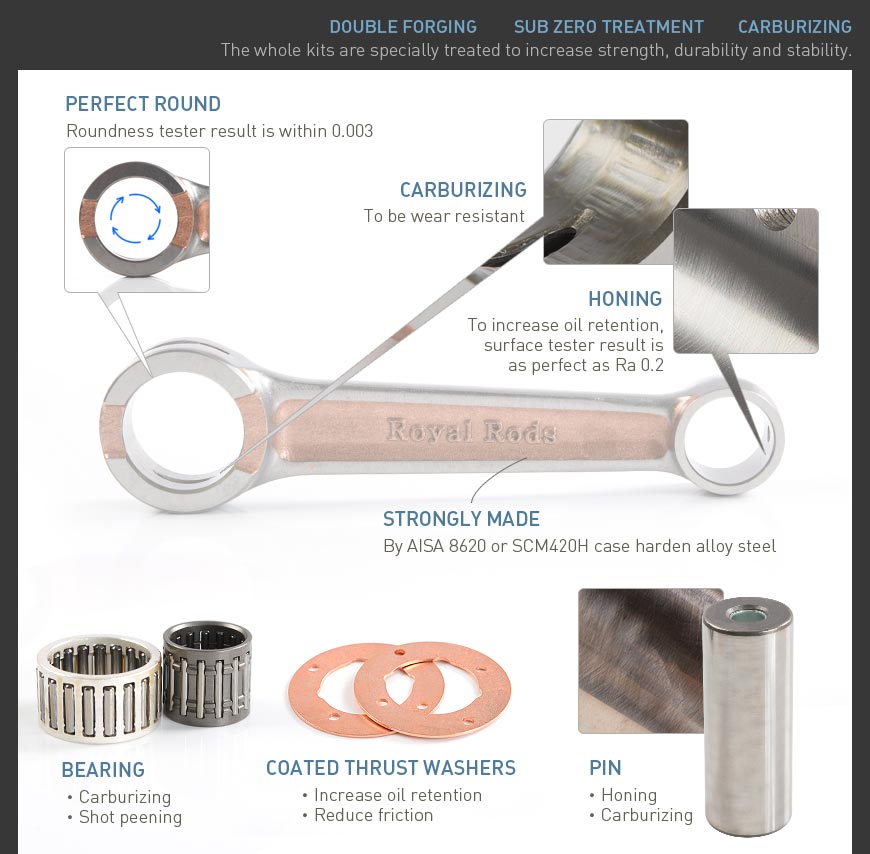

- Material: double forged heavy duty AISA or SCM420H case harden chromoly

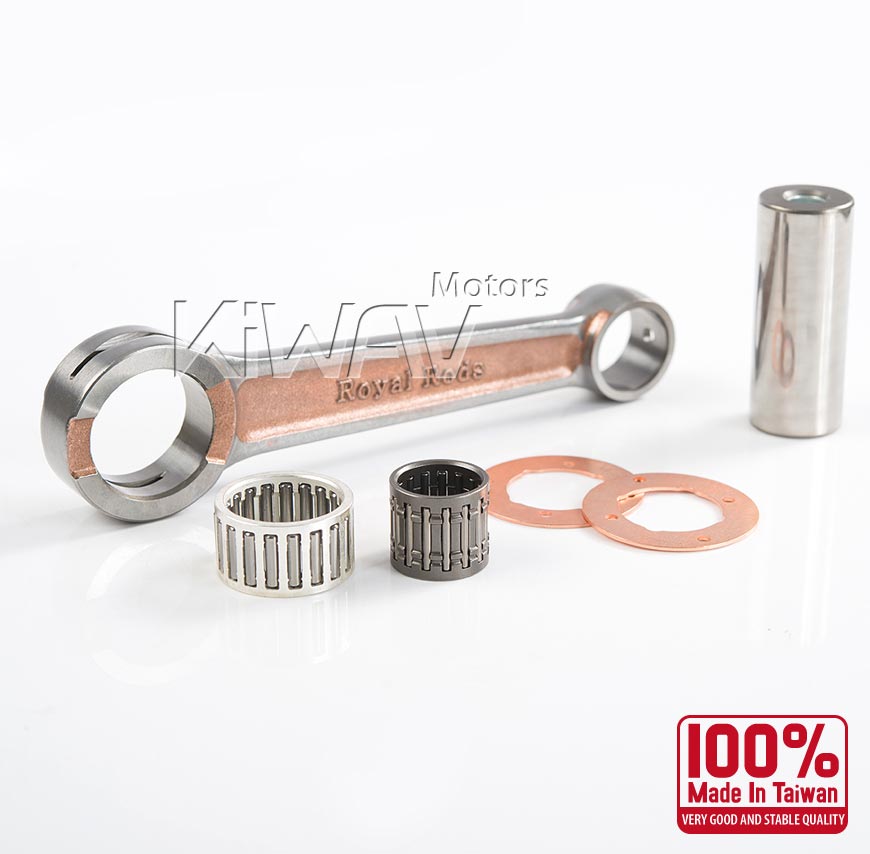

- Package: Forged connecting rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, washer x 2
- Net Weight: 460g, total weight:500g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RM-6216 | compatible with KTM360/380(95-02) | 30 | 22 | 135 | 17 | 17 | PIN: Ø24*60 WASHER: Ø24.1*Ø41*1.0 |
BIG END BEARING: 24*30*16.7 | |||||||
SMALL END BEARING:18*22*19.8 |
