バーエンドミラー クラシック クロム 一部のハーレー用

0 Rating
$94.50
在庫あり
商品番号: 100105818268804
適用範囲 単位
Visualize it right away
Printable 1:1 actual size. Print and compare before purchase.
特色:
1.改良した取付部品でミラーをもっとしっかりに固定している
2.上向きも下向きも取付可能
3.CNCアルミ製でかなり丈夫
4.カフェレーサーやストリートファイターにぴったり


材料:アルミニュム
ガラス:青い防眩コンベクスレンズ
色:クロム
重量:n.w.: 849 g/ 1.87 lbs. (一対), g.w.: 954 g/ 2.1 lbs. (包装含まれ)
パッケージ:
ミラー 一対(右側と左側)
14、17、20mm取付部品(中空側) 2個
14、17、20mm取付部品(ネジ穴側) 2個
M6ボルト 2本
スペーサー 2個
ワシャー 2個


取付可能車種:
外径7/8インチ、1インチや1-1/4インチの中空式ハンドル付きモデル
14mm取付部品は内径14.5mm-15.7mmm対応
17mm取付部品は内径17.5mm-20.4mmm対応
20mm取付部品は内径20.5mm-24.9mmm対応


純正やアクセサリハンドルバー付きのハーレーモデルに取付可能
2015以降の XG
2002-2017の VRSC
1996以降の XL と XR
1996-2017の Dyna ( FXDLSを除く)
1996-2015の Softail ( FLSTNSE、FXSBSE と FLSTSEを除く)
1996-2007の Touring
注意事項:
1.バーエンドミラーを装着できるように、グリップは切られる、或は両側のエンド部が開けられるのを確認してください。
例:純正ゴム製グリップ、ハーレーのアクセサリダイアモンドブラックハンドグリップ(品番:56100199 (1")、56100202 (7/8"))等。 2.電子制御式スロットル(ETC)付きモデルには取り付けできません。


註:
1.電子制御式スロットル(ETC)付きモデルには取り付けできません。
2.バーエンドミラーを装着為に、グリップは切られる、或は両側のエンド部が開けられるのを確認してください。 例:純正ゴム製グリップ、ハーレーのアクセサリダイアモンドブラックハンドグリップ(品番:56100199 (1")、56100202 (7/8"))等。 3.詰まっているハンドルは孔をあけ必要があります。改造必要の可能性があります。
4.グリップの接触を避けるために、座金を用意して、スペーサーとして使うのは勧めます。(スペーサーは含まれていません。)
5.ミラーは寸法が小さいので、この商品はレーシングまたは展示以外に適ません。
Because of the small dimensions of the mirror glass, this product must only be fitted for racing or show purposes.
  • Features
    1. The improved expansion components provides a better way to secure bar end mirrors inside the handlebar.

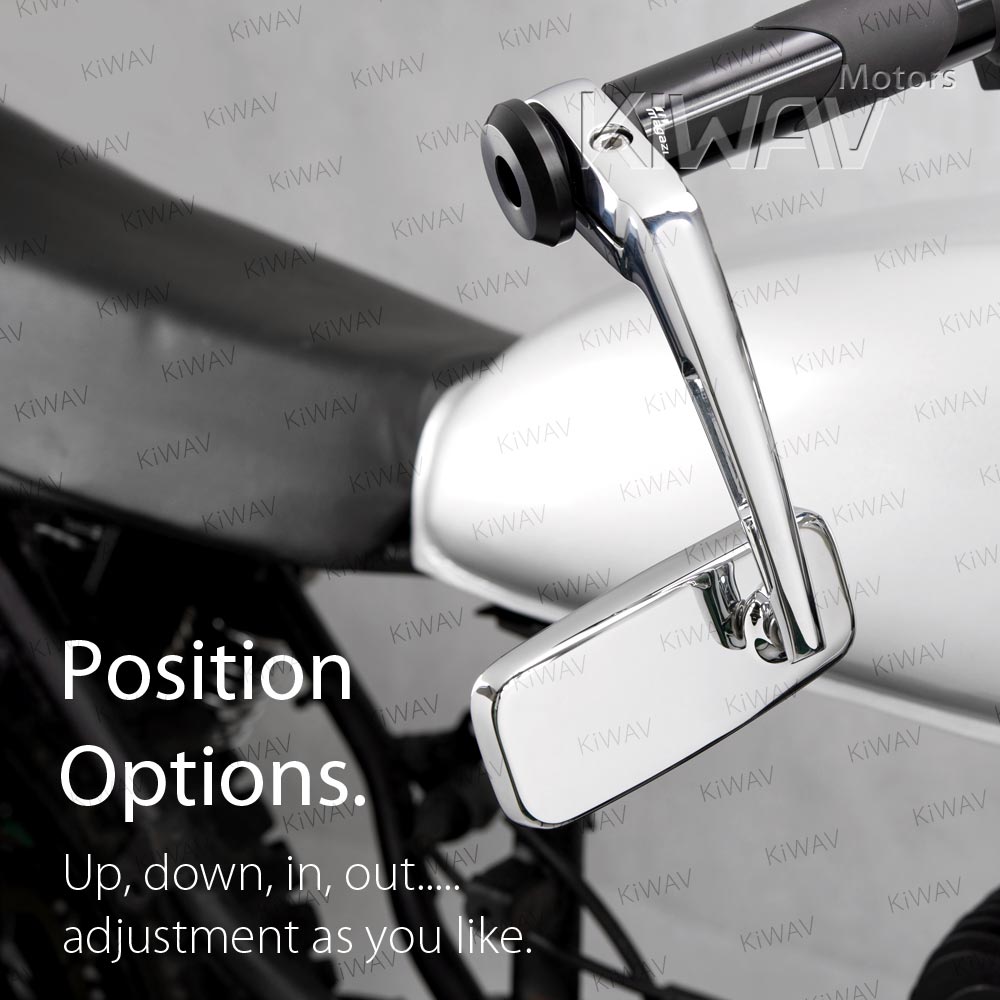

    2. It can be mounted in 2 ways, standing upright or flipping down.
    3. Sturdy and durable with CNC 6061 aluminum mirror stem and mirror plate.
    4. Ideal for cafe racer and streetfighter.
  • Material
    Mirror Housing: CNC aluminum
    Mirror Stem: CNC milled aluminum
  • Shape
    Square

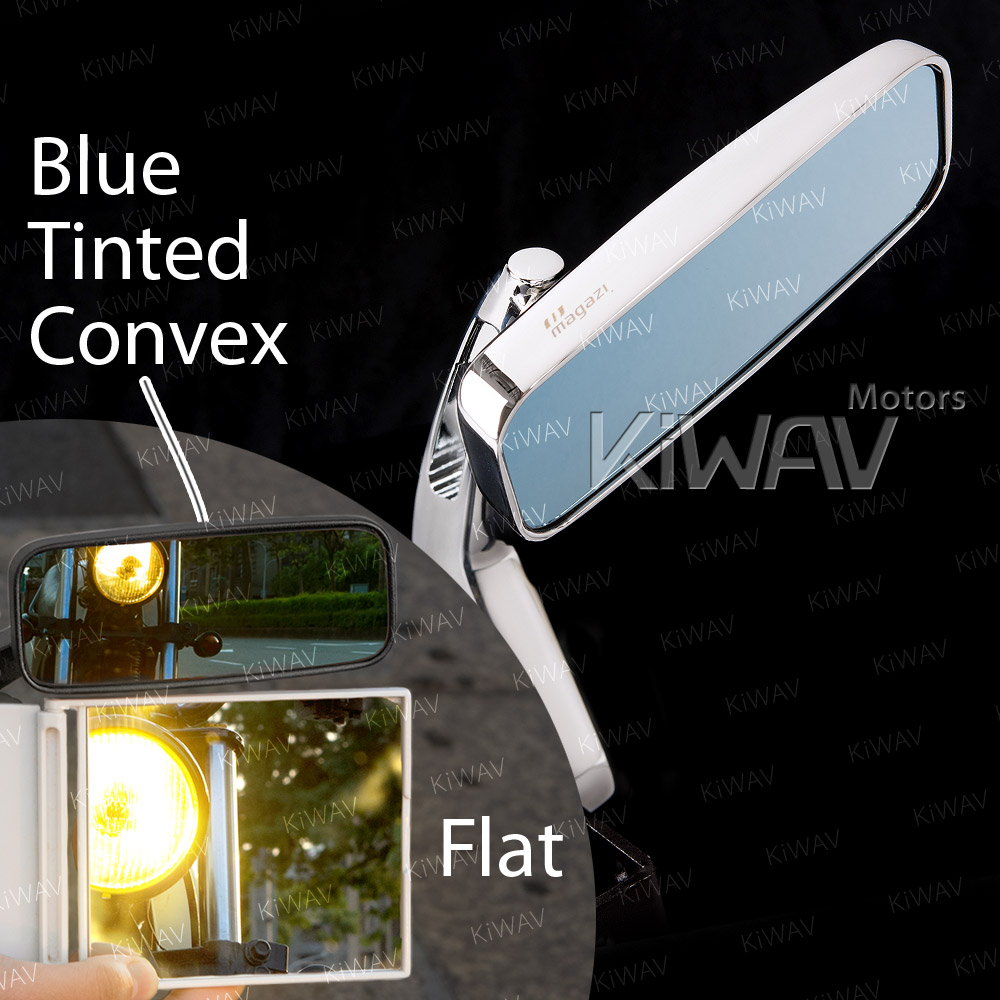

  • Glass
    Blue tinted convex lens
  • Weight
    n.w.: 849 g./ 1.87 lbs. (pair),
    g.w.: 954 g./ 2.1 lbs. (total package, packing inclusive)
  • Color
    Chrome
  • Adjustment
    Fairly adjustable

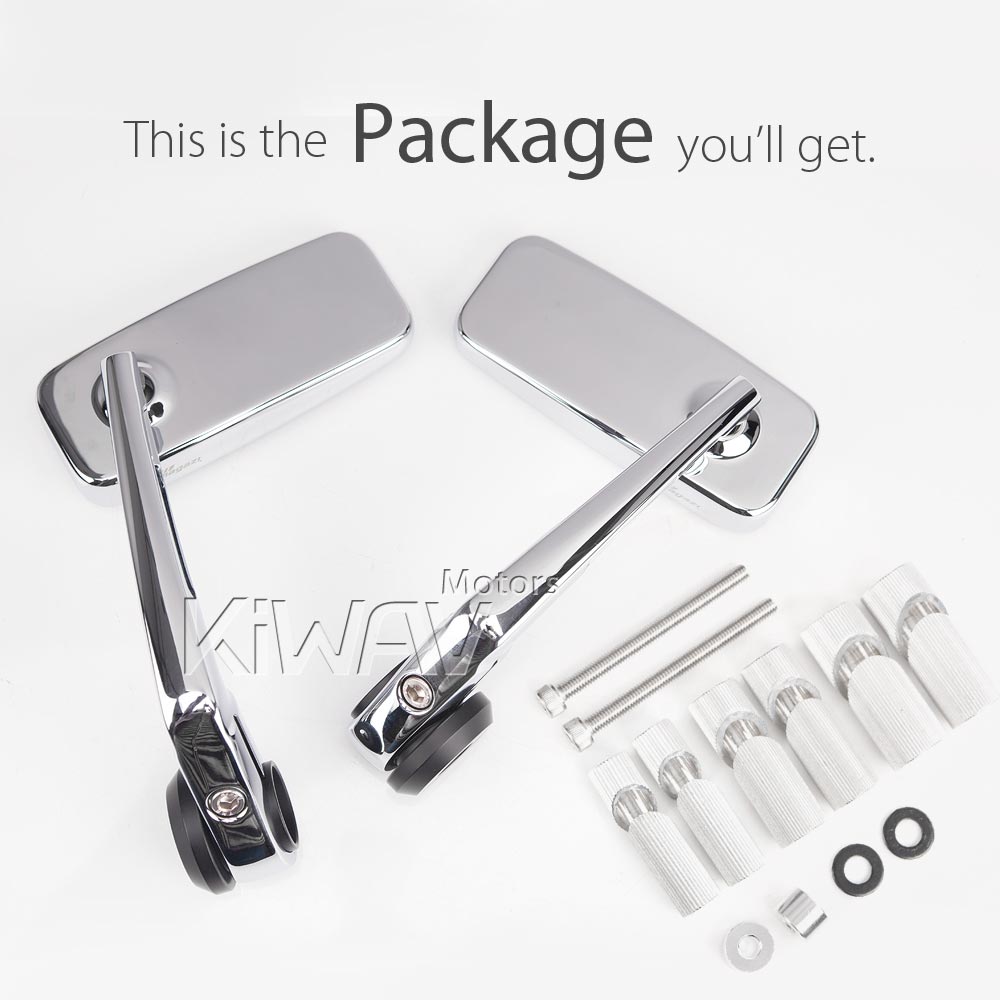

  • Package
    A pair of mirrors (left hand / right hand),
    14, 17, 20mm expansion components-hollow side x 2,
    14, 17, 20mm expansion components-threaded side x 2,
    M6 bolt x 2, spacer x 2, washer x 2
  • Compatibility

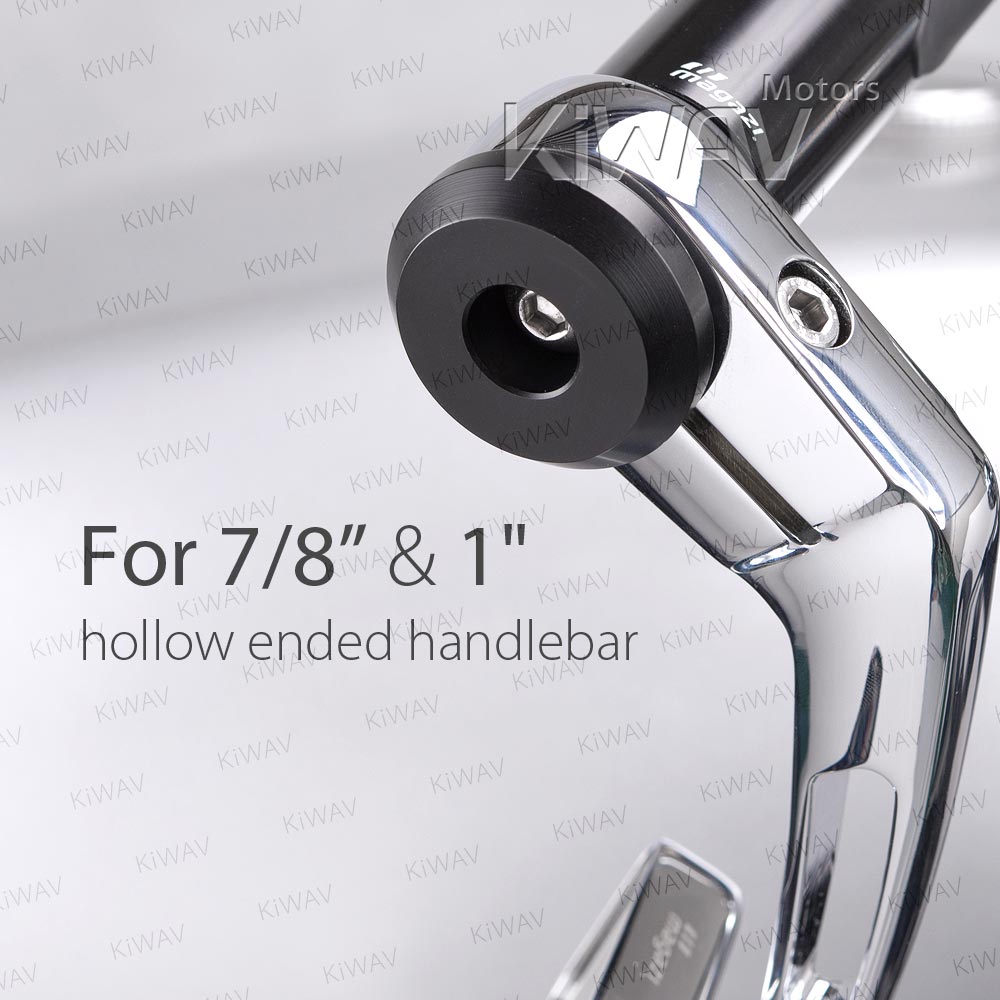

    It will work on 7/8" to 1-1/4" outer diameter hollow ended handlebars with internal diameter from 14mm to 24mm (9/16" to 15/16").
    Compatible for stock or accessory handlebars on
    '15-later XG
    '02-'17 VRSC
    '96-later XL & XR
    '96-'17 Dyna (except FXDLS)
    '96-'15 Softail (except FLSTNSE, FXSBSE and FLSTSE)
    '96-'07 Touring
    * Please make sure your grips are allowed to be cut or opened to install our mirrors. e,g., stock rubber grips, H-D accessory Diamond-Black Hand Grip P/N 56100199 (1") or 56100202 (7/8"), etc.
    * Can not be installed on any motorcycles having electronic throttle control (ETC).
1. Can not be installed on vehicles having electronic throttle control (ETC).
2. Please make sure your grips are allowed to be cut or opened to install our mirrors. e,g., stock rubber grips, H-D accessory Diamond-Black Hand Grip P/N 56100199 (1") or 56100202 (7/8"), etc.
3. Some bikes with solid bar need to drill and tap. Modification might be needed.
4. Because of the small dimensions of the mirror glass, this product must only be fitted for racing or show purposes.
KiWAV, kiwavMirror, kiwavmotor, motorcycle, ClassicHB, Classic, barend, bar end, chromecolor

*Please allow ±3% measuring deviation due to manual measurement.

Measurement of KiWAV Classic motorcycle bar end mirrors compatible for Harley Sportster Dyna Softail XG street
