バーエンドミラー バイパーII オレンジ 5mm & 6mmネジ式  トライアンフ空冷式モデル用

0 Rating
$117.00
在庫あり
商品番号: 100146219050010
適用範囲 単位
Visualize it right away
Printable 1:1 actual size. Print and compare before purchase.
特色:
1.上向きも下向きも取付可能
2.目立つなCNCアルミ製飾り付き
3.コンベクスレンスでより広い視野が見えて、ヨーロッパ基準のEマークにも認証される
4.カスタムバイクに最適のスタイリッシュな外見


材料 ―
ハウジング:CNCアルミとABSプラスチック
柄:CNCアルミ
色:黒い鏡盤とオレンジのバイパー形アルミ
ガラス:クロムコンベクスレンズ
重量: n.w.: 572 g./1.26 lbs. (一対), g.w.: 757 g/ 1.67 lbs.(全体な重量、包装を含まれ)
パッケージ:
ミラー 一対(右側と左側)
M6ボルト(長さ45mm) 2本
M6ボルト(長さ60mm) 2本
M5ボルト 2本
M5ボルト用ワシャー 2個


取付可能車種:
Triumph トライアンフ
M5ネジ式:Bonneville T100 (空冷式)、America、Daytona 955i/600/650/675/675R、Scrambler (carb & EFI)(空冷式)、Speed Triple ('11-'15)、Speed Triple R('11-'15)、Street Triple ('08-'12)、Street Triple R ('08-'12)、Thruxton 900 Carb、Thunderbird ('04以前)…など
M6ネジ式:Thunderbird 1600、Tiger 800、Street Triple ('13-'18)、Street Triple R ('13-'18)
M6ネジ式(長め):Rocket III classic/roadster/touring、Thruxton 900 (carb & EFI)(空冷式) ('04-'15)
*中空式ハンドルや、他のネジ式ハンドルの場合、
サイズで適合うセットを選んでください。
(元のバーエンドプラグを取り外すと、ハンドルの種類の確認ができます。)


註:
1.中空式ハンドルや、他のネジ式ハンドルの場合、
サイズで適合うセットを選んでください。
(元のバーエンドプラグを取り外すと、ハンドルの種類の確認ができます。)
2.詰まっているハンドルは孔をあけ必要があります。
3.改造必要の可能性があります。
4.グリップに接触を避けために、座金を用意て、スペーサーとして使う可能性があります。(スペーサーは含まれていません。)
5.トライアンフの水冷式モデル用のは別途お買い求めください。
  • Features

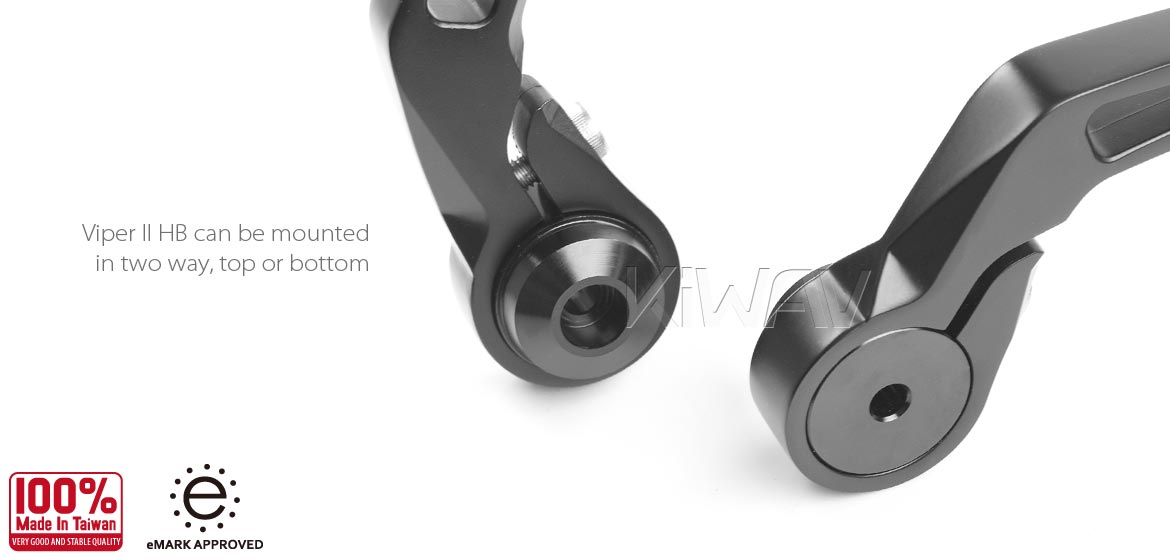

    1. Bar end mirrors can be installed upward or downward. Depending on the mirrors and the motorcycles, downward might hit the tank while upward would not have this issue.
    2. Pair of nicely CNC crafted eye catching diamond shape aluminum mirrors.

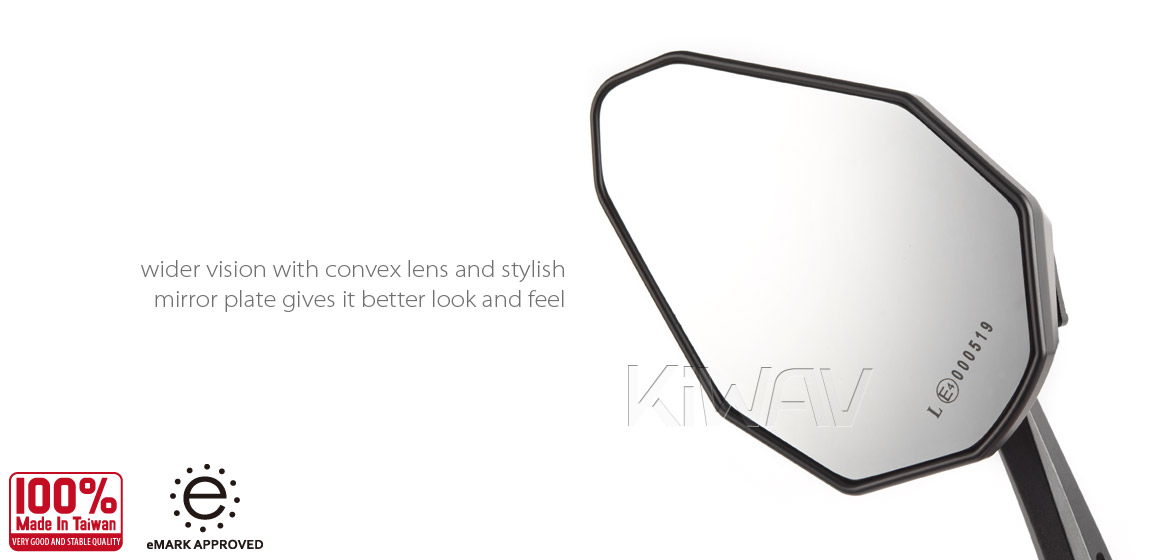

    3. Wider vision with convex lens and E-mark approved.
    4. Stylish designs for your custom applications.
  • Material
    Mirror Housing: CNC aluminum & ABS plastic
    Mirror Stem: CNC milled aluminum
  • Shape
    Diamond / Other
  • Glass
    Chrome convex lens
  • Weight
    n.w.: 572 g./ 1.26 lbs. (pair),
    g.w.: 757 g./ 1.67 lbs. (total package, packing inclusive)
  • Color
    Black mirror plate & orange viper shape aluminum
  • Adjustment
    Fairly adjustable

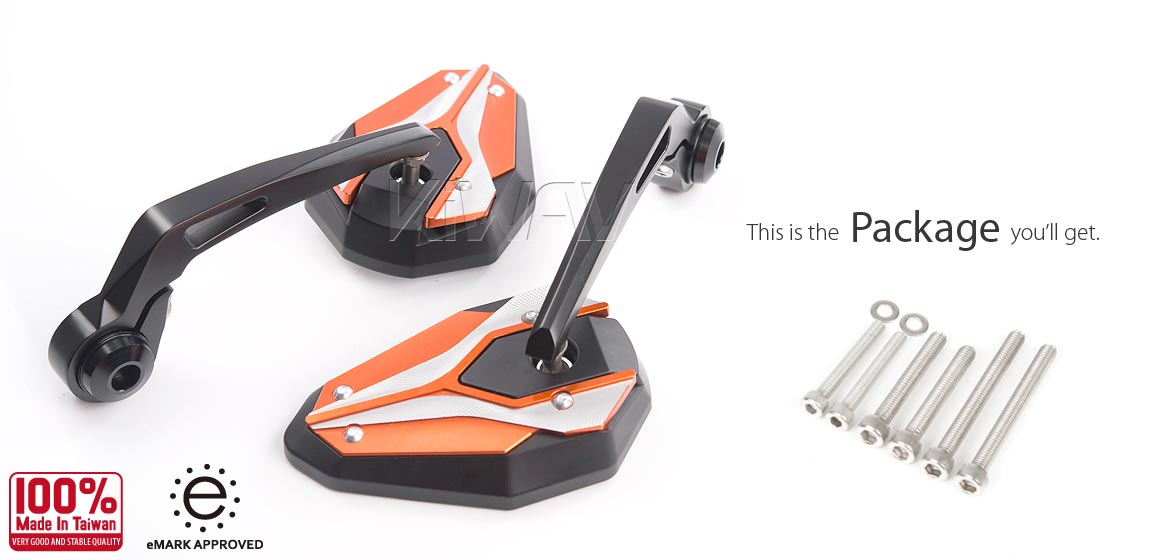

  • Package
    A pair of mirrors (left hand/ right hand ),
    M6 bolt 45mm x 2, M6 bolt 60mm x 2,
    M5 bolt x 2, M5 washer x 2
  • Compatibility
    [OEM handlebar]
    Bonneville T100 (carb & EFI)(air-cooled), America, Daytona 955i/600/650/675/675R, Scrambler (carb & EFI)(air-cooled), Speed Triple ('11-'15), Speed Triple R('11-'15), Street Triple ('08-'12), Street Triple R ('08-'12), Thruxton 900 Carb, Thunderbird (-'04)...mounts with a 5mm bolt
    Thunderbird 1600, Tiger 800, Street Triple ('13-'18), Street Triple R ('13-'18)...mounts with a 6mm bolt
    Rocket III classic/roadster/touring, Thruxton 900 (carb & EFI)(air-cooled)('04-'15)...mounts with a longer 6mm bolt

    *For some handlebar having a hollow opening end or other threaded sizes inside the bar end, please find the suitable set in our store.
1. For some handlebar having a hollow opening end or other threaded sizes inside the bar end, please find the suitable set in our store, or leave the model and year of the motorcycle as notes before finish your order.
2. Modification might be needed.
KiWAV, kiwavMirror, kiwavmotor, motorcycle, ViperIIHB, bonvespa, orange, barend

*Please allow measuring deviation due to manual measurement.

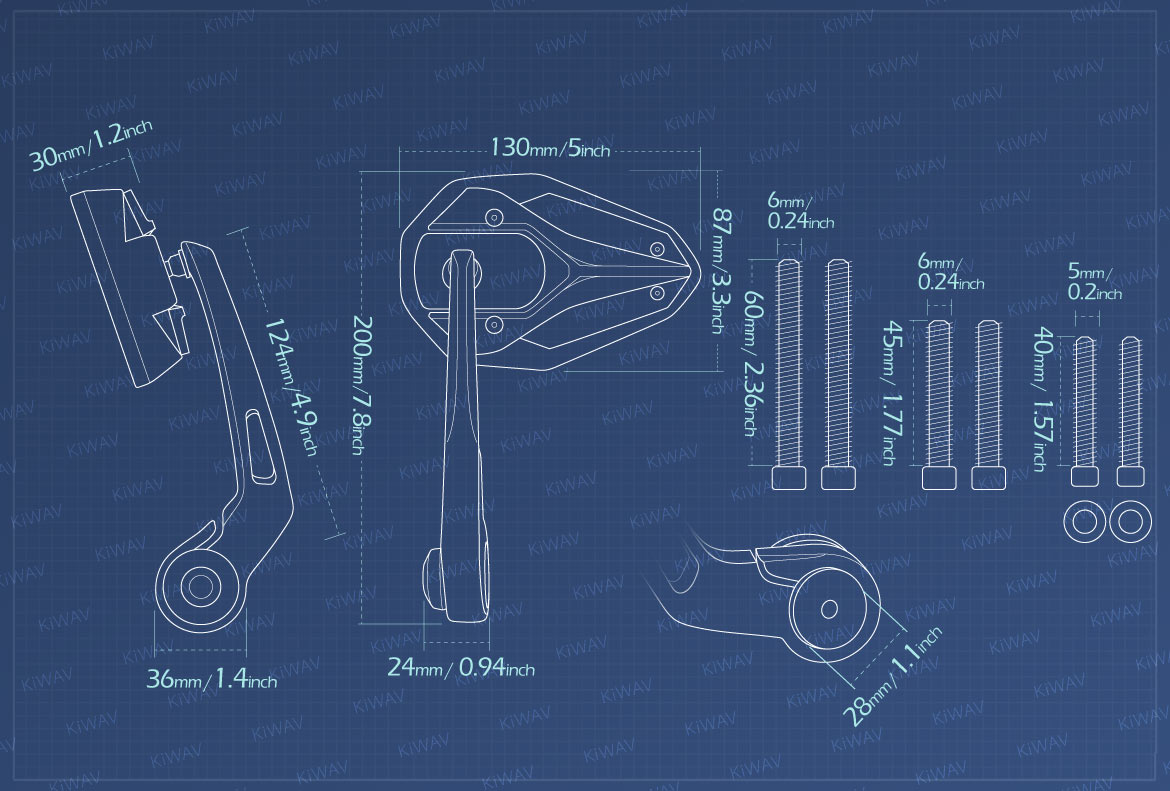

Measurement graph of KiWAV Viper2 bar end mirror for Triumph air-cooled models with OEM handlebars
