二色LED付きカウルミラー ルシファー 黒 フェアリング取付 ドゥカティ パニガーレシリーズに適用
1.二色の高輝度LEDライトはドライヴィングやウインカーとして使えます。
2.IP67認証、防塵と防水の密封LEDモジュール 。
3.ヨーロッパのE-mark認証取っておりのミラーとLEDライト。
4.スタイリッシュ外見、カスタムバイクに似合います。
5.簡単で取り付けができます。
ハウジングの材料：ABSプラスチック
柄の材料：アルミニュム
ハウジングの色：黒
LED：白：二個 (12V / 0.9W)；琥珀色：七個 (12V / 0.9W)
ガラス：クロム凸レンズ
電線：620mm /24inch
調整範囲：かなり調整できます（三つの調整用のジョイント）
重量：n.w.: 700g./1.54 lbs.(一対)、 g.w.: 1100g/2.42 lbs. （全体な重量、包装を含まれ）

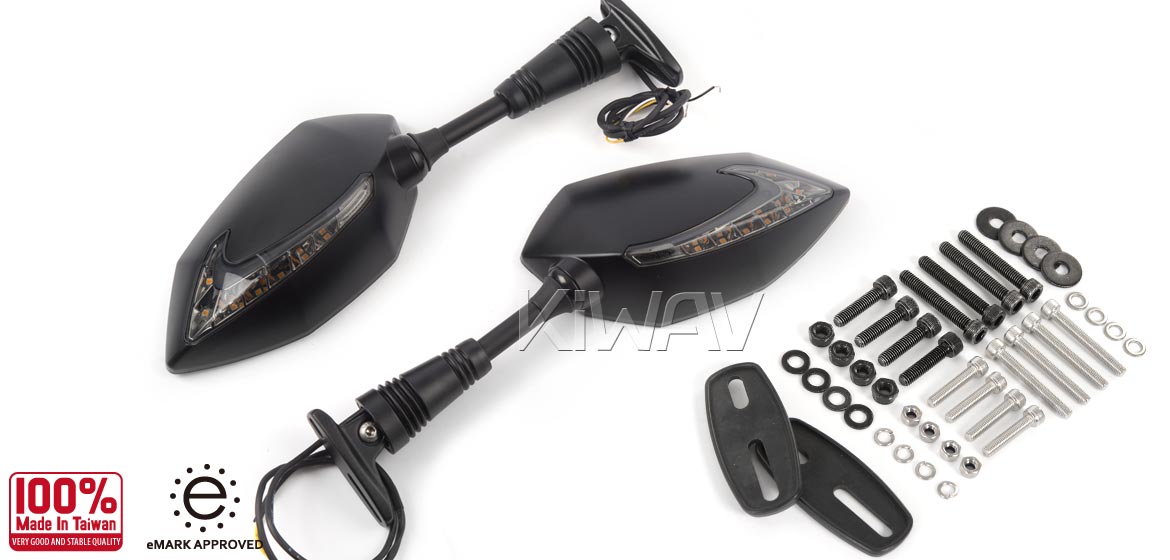

パッケージ：
一対(右側と左側)
調整用のジョイント付きアダプターｘ2
ゴムの取付ガスケットｘ2
M6ボルト（長さ25mmｘ4、長さ40mm長ｘ4）
M5ボルト（長さ25mmｘ4、長さ40mm長ｘ4）
M6ナットｘ4
M5ナットｘ4
M6ボルト用ワッシャー（大きいｘ4、小さいｘ4）
M5ボルト用ワッシャー（大きいｘ4、小さいｘ4）
取付可能車種：
ドゥカティ パニガーレ Ducati Panigale シリーズ
Ducati 899 Panigale 2014-2015
Ducati 899 Panigale ABS 2014
Ducati 959 Panigale 2016
Ducati 959 Panigale ABS 2016
Ducati 1199 Panigale 2012-2014
Ducati 1199 Panigale ABS 2013-2014
Ducati 1199 Panigale R 2013-2016
Ducati 1199 Panigale S 2014
Ducati 1199 Panigale S ABS 2013-2014
Ducati 1199 Panigale S Tricolore 2012-2013
Ducati 1199 Panigale S ABS Tricolore 2012-2013
Ducati 1299 Panigale 2016
Ducati 1299 Panigale ABS 2016
Ducati 1299 Panigale S 2015-2016
Ducati 1299 Panigale S ABS 2016
註： 1.部分改造や、加工は必要の可能性があります。
2.純正ウインカーを取り外して、本製品を単独で使用した場合、車検への適合は保証できませんのでご了承ください。
Sealed LED module with IP67 dust & waterproof compliant.
→ What does IP67 waterproof rating mean?
IP6x is the highest dust resistance rating, so this product is fully protected against dust.
IPx7, the second-highest water resistance rating, means this product can withstand immersion in water up to one meter (3.3 feet) for 30 minutes, tested in laboratory conditions.
| Code | Effective against | Description |
|---|---|---|
| 6 | Dust tight | No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| Code | Protection against | Test duration | Description |
|---|---|---|---|
| 7 | Immersion, up to 1 m depth | 30 mins | Protected from immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30 mins |
Sealed LED module with IP67 dust & waterproof compliant.
→ What does IP67 waterproof rating mean?
IP6x is the highest dust resistance rating, so this product is fully protected against dust.
IPx7, the second-highest water resistance rating, means this product can withstand immersion in water up to one meter (3.3 feet) for 30 minutes, tested in laboratory conditions.
| Code | Effective against | Description |
|---|---|---|
| 6 | Dust tight | No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| Code | Protection against | Test duration | Description |
|---|---|---|---|
| 7 | Immersion, up to 1 m depth | 30 mins | Protected from immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30 mins |
- Features
- Two-tone color LED lights, various combinations of driving and indicator lights set up.
- Sealed LED module with IP67 dust & waterproof compliant.
- Stylish designs for your custom applications.
- Wider vision with convex lens and E-mark approved.
- Easy installation.
- Material
Mirror Housing: ABS plastic
Mirror Stem: Aluminum
- Shape
Diamond / Other - Glass
Chrome Convex Lens - Weight
n.w.: 700 g./ 1.54 lbs. (pair),
g.w.: 1100 g/ 2.42 lbs. (total package, packing inclusive)
- Color
Mirror plate: matt black LED: White: 2 PCS (12V / 0.9W), Amber: 7 PCS (12V / 0.9W) - Adjustment
Highly adjustable (three adjusting joints) - Wire Length
620mm / 24inch - Package
A pair of mirror ( Left hand / Right hand ),
adapter with toothed adjustment joint x 2 PCS,
rubber mounting gasket x 2 PCS,
M6 bolt 25 mm long x 4 PCS, M6 bolt 40 mm long x 4 PCS,
M6 nut x 4 PCS, big washer x 4 PCS, small washer x 4 PCS,
M5 bolt 25 mm long x 4 PCS, M5 bolt 40 mm long x 4 PCS,
M5 nut x 4 PCS, big washer x 4 PCS, small washer x 4 PCS
- Compatibility
Suitable for Ducati Panigale whose mounting surface is flat.
(For example, the mounting surface of Model 899 or 1199 is not flat. It requires some modification for installation. Please check the measurement for more details.) Installation
1. Please refer to your service manual to remove the original mirror.
2. Temporarily fix the mirror to the bolt fixing position of the vehicle, using the base rubber, bolts (those with matching length or genuine one), washers and nuts. (See the figure below)
3. Once temporarily fixed to the left and right, please adjust the whole position using hexagon wrench at the two bolts at the bottom of the mirror.
4. Tightening each part after the position is finally fixed.
Connect to the Turn Signal
♦ There is no need to replace the relay when using this product with exisiting blinkers.
♦ Relay is needed when using this product as the only turn signal.
♦ Minor modification might be required depending on motorcycles.
Check the wiring of the vehicle on the manufacturer service manual, refer to the wiring table below, and connect the turn signal wiring with the attached electro tap.
Also, please wire the position line (white) of this product to the accessory power supply of each vehicle.A table of this product and main manufacturer blinker wiring colors:
Running Light (-) Right Turn Signal (+) Left Turn Signal (+) Lucifer black yellow yellow Honda green light blue orange Yamaha black deep green brown Suzuki black / white light green black Kawasaki black / yellow grey green Each manufacturer wiring color in the table is for reference only, it depends on the vehicle year and specifications, please be sure to confirm with the service manual issued by the manufacturer and connect it.
- In order to use this product safely please understand and work on the followings:
- This is only suitable for skilled users, others please find the nearest dealers.
- For removal / installation of genuine parts and tightening of bolts / nuts, please be sure to perform based on the manufacturer's issued service manual.
- Please stop using it immediately if any faults happen.
- We are making every effort to manufacture and making sure its quality, but please do not install if there is any incompleteness in the item if any.
- Warranty is voided if any of the above are not followed.
*Please allow measuring deviation due to manual measurement.
