バイクのカウルミラー交換に困っているのでしょうか?
それならで取付の動画見てみましょう!
カウルミラー レトロ クロム フェアリング取付 クロムのアダプター ドゥカティ パニガーレシリーズに適用
説明
1.定番な丸型鏡盤 ― カスタムバイクに最適
2.コンベクスレンスでより広い視野が見えて、ヨーロッパ基準のEマークにも認証される
3.ギザギザ加工で高速でもかなり安定
4.キレイなクロムメッキ仕上げ
5.独特なボールジョイントでミラーを簡単で調整できる
材料:CNCアルミニュム
色 ―
ミラー:クロムメッキ
ベース:クロムメッキ
ガラス:クロムコンベックスレンズ
調整範囲:三つの調整ジョイント
重量:n.w.: 950 g./ 2.09 lbs. (一対), g.w.: 1190 g./ 2.62 lbs. (包装含まれ)
パッケージ:
ミラー一対(左側と右側)
アダプター 2個
ゴム製取付ガスケット2個
M6ボルト(長さ25mmの4本、長さ40mmの4本)
M6ナット 4個
M6用ワッシャー(大きめ4個、小さめ4個)
M5ボルト(長さ25mmの4本、長さ40mmの4本)
M5ナット 4個
M5用ワッシャー(大きめ4個、小さめ4個)
取り付け可能車種:
ドゥカティ パニガーレに取付可能
取付け条件:
1.純正ミラーが M5 / M6ボルト2本で固定されているバイク。
2.取付ボルトの固定ピッチ範囲が26mm-55mmのバイク。
3.取付け面が平面のバイク。
註:部分改造や、加工は必要の可能性があります。
編集者のおすすめ:安定性の向上
当店で取り扱っているミラーはすべて、安定性とクリアな後方視界を最優先事項として設計されていますが、このミラーモデルは特に様々なライダーから、振動幅大きいバイクに走行でも、かなり安定で、ブレない視野を持つと、いい評価された製品です。
これらは、当社の経験と様々なライダー様からの評価により、調整と取付構造が安定性と後方視界を向上できる選択肢ですが、バイクの振動は、エンジン特性、ハンドル共振、取付状況などに影響されていて、これらの選択肢が振動問題を完全に解決することを保証しませんので、予めご了承ください。
取付可能車種
(本リストの車種は取付規格適用のみなので、どうぞご注文前に、寸法を再確認の程、よろしくお願いいたします。) (また、最新モデルはすぐに追加されない場合があるので、ご不明な点がございましたら、お気軽にお問い合わせください。)Ducati
- 1199 Panigale (2012-2014)
- 1199 Panigale ABS (2012-2013)
- 1199 Panigale R (2013-2014)
- 1199 Panigale S (2014)
- 1199 Panigale S ABS (2012-2013)
- 1199 Panigale S Tricolore (2012-2013)
- 1299 Panigale (2016)
- 1299 Panigale S (2015-2016)
- 899 Panigale (2014)
- 959 Panigale (2016)

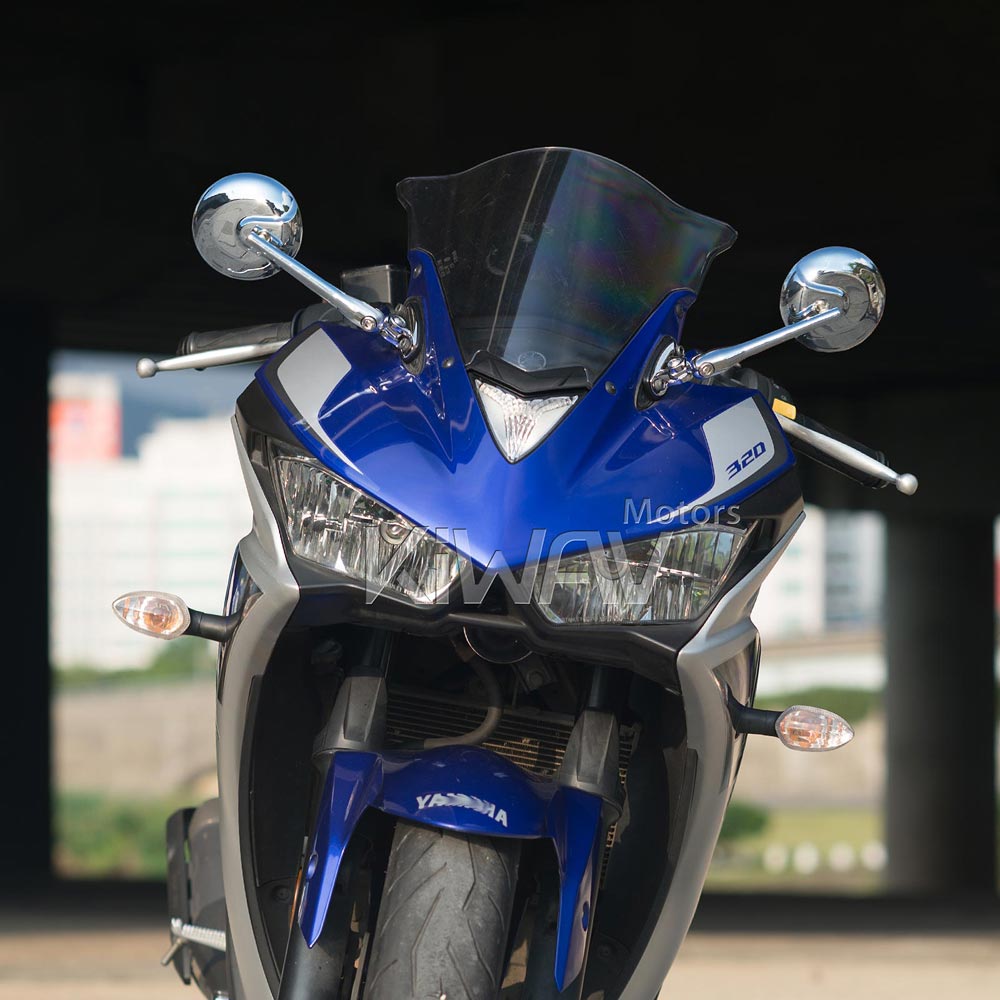

お客様の写真
世界中のお客様からいただいた、実際の取付写真をご紹介します。
(※掲載車両は改造されている場合がありますので、ご注文前はお客様の車両に応じて、適用範囲から適合の選択肢をお選びください。)
SPEC
- Features
- Anti-Vibration See what's behind you at highway speeds.
- This stylish mirror shape design suitable for your motorcycles.

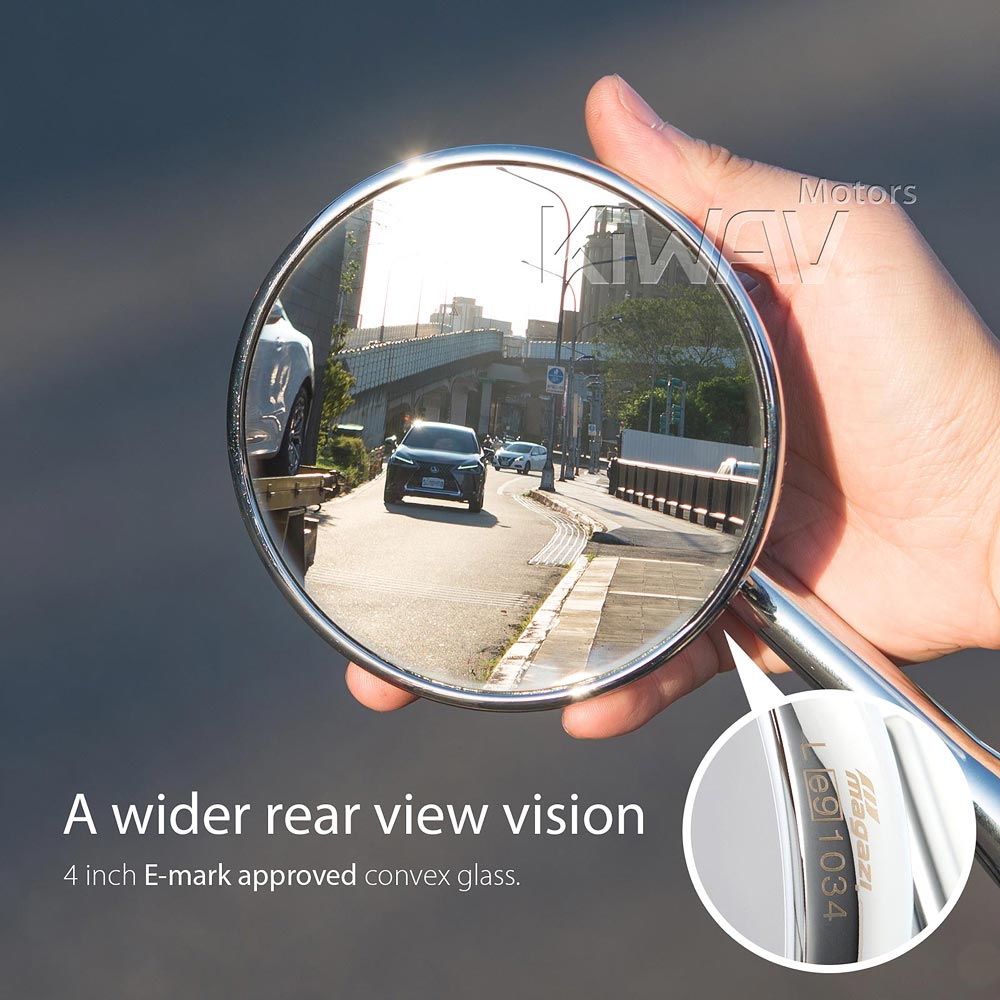

- The Emark approved mirror glass provides a wide field of view.

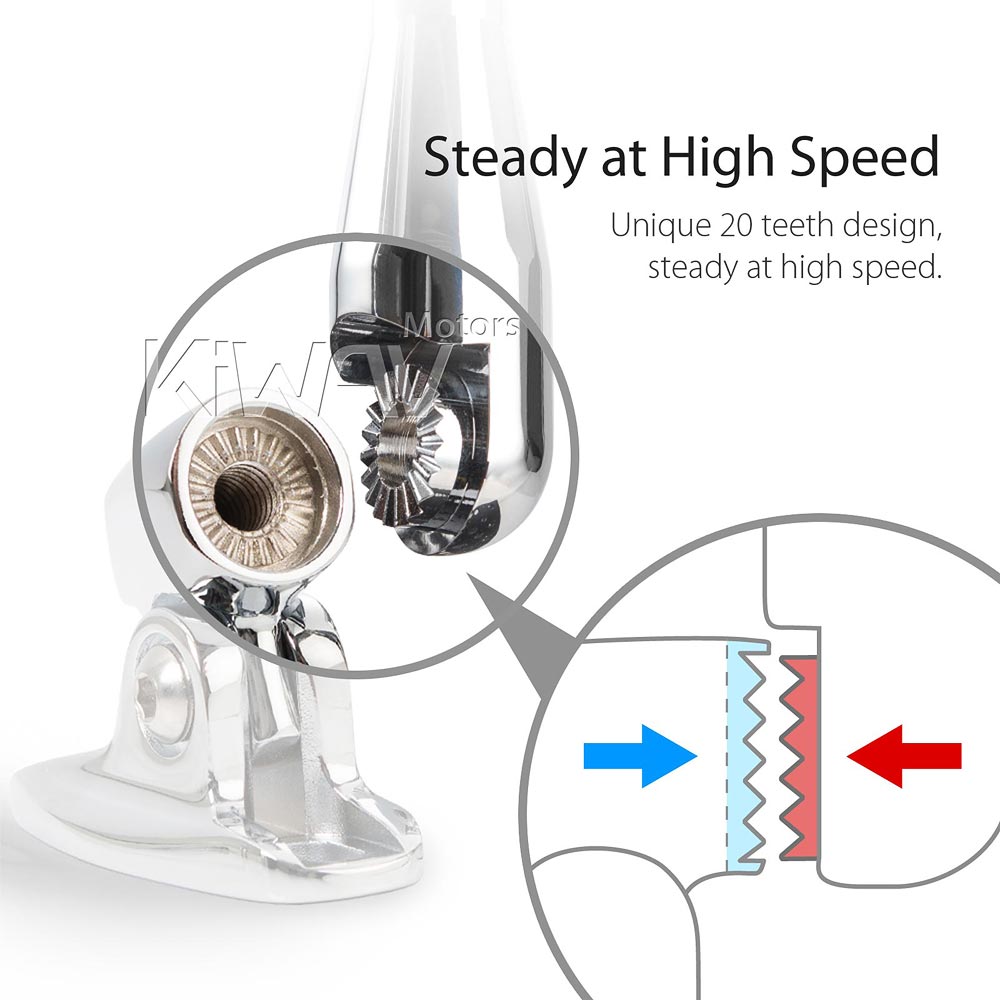

- Ride steady at high speed with the 20 teeth design joint.
- Perfect chrome finish.

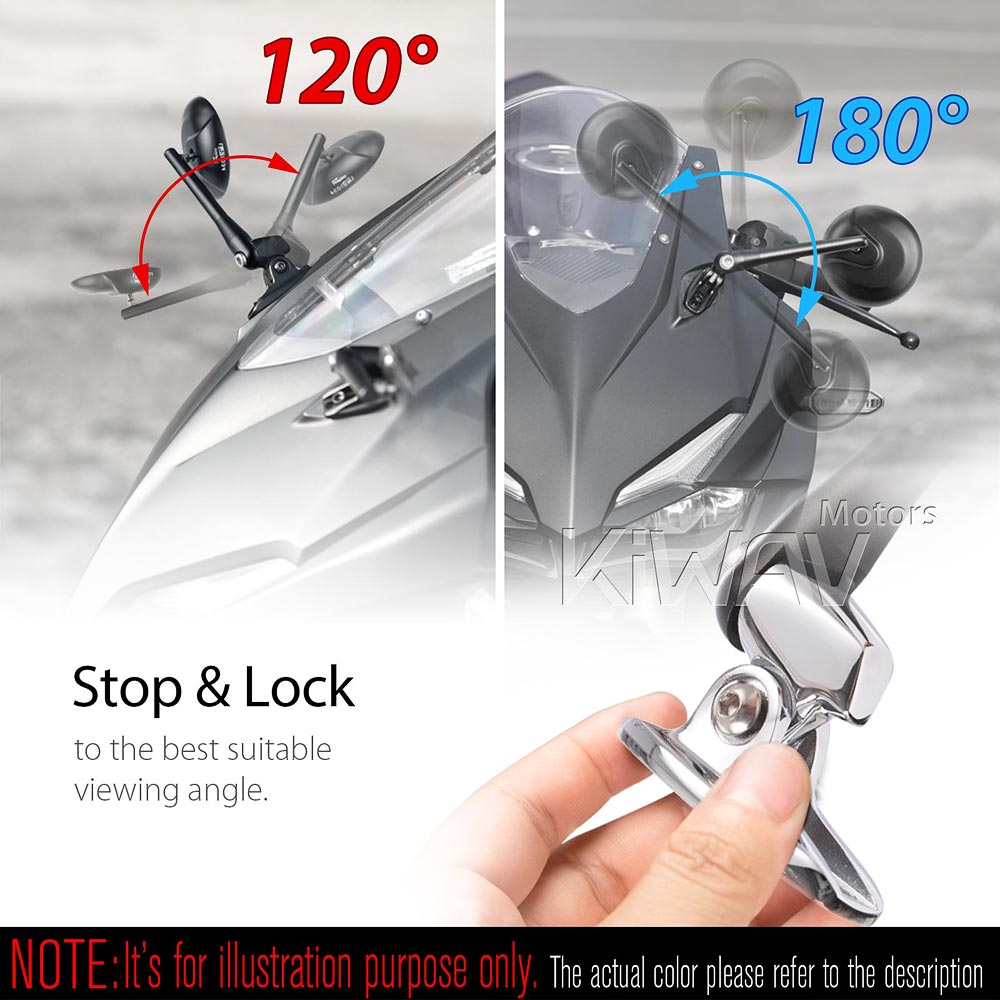

- Unique ball joint, easily adjust the mirror plate.
- Easy installation.

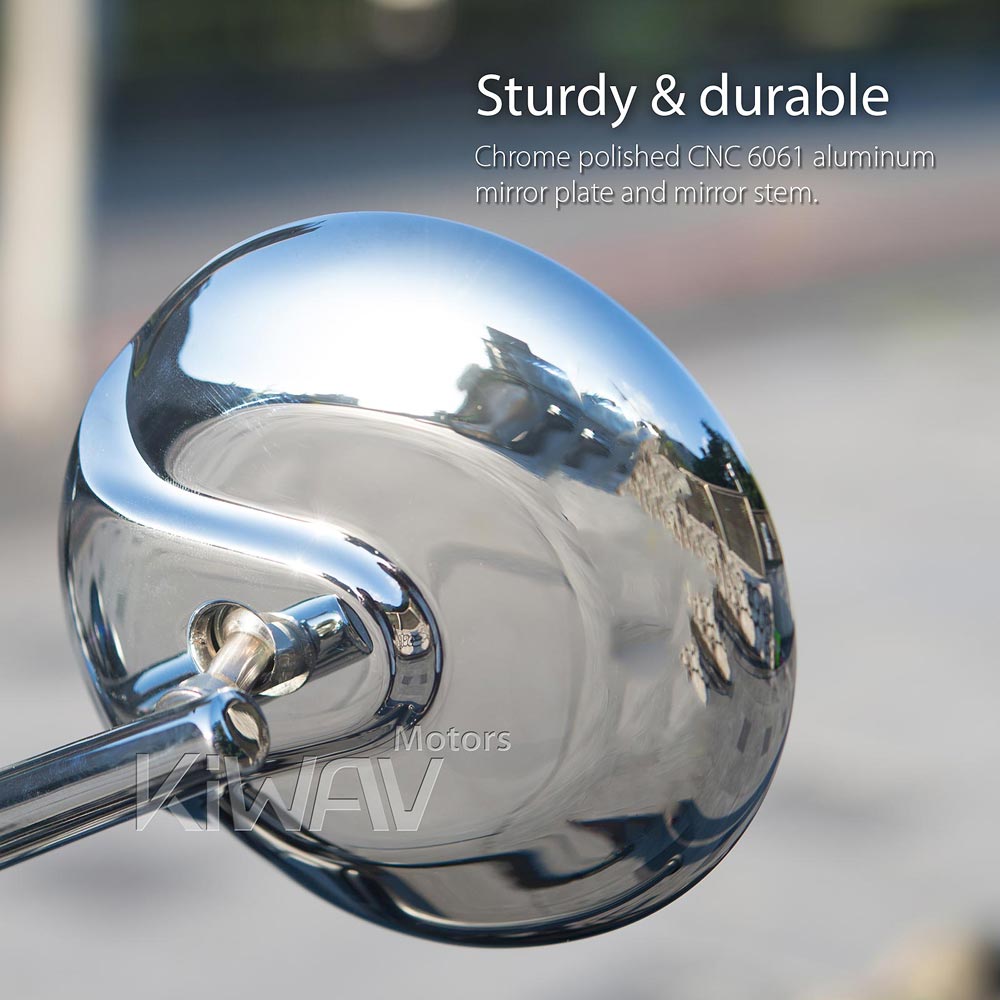

- Material
CNC machined aluminum - Shape
Round - Glass
Chrome convex lens - Weight
n.w.: 950 g./ 2.09 lbs. (pair),
g.w.: 1190 g./ 2.62 lbs. (total package, packing inclusive)
- Color
Mirror: chrome
Adapter: chrome - Adjustment

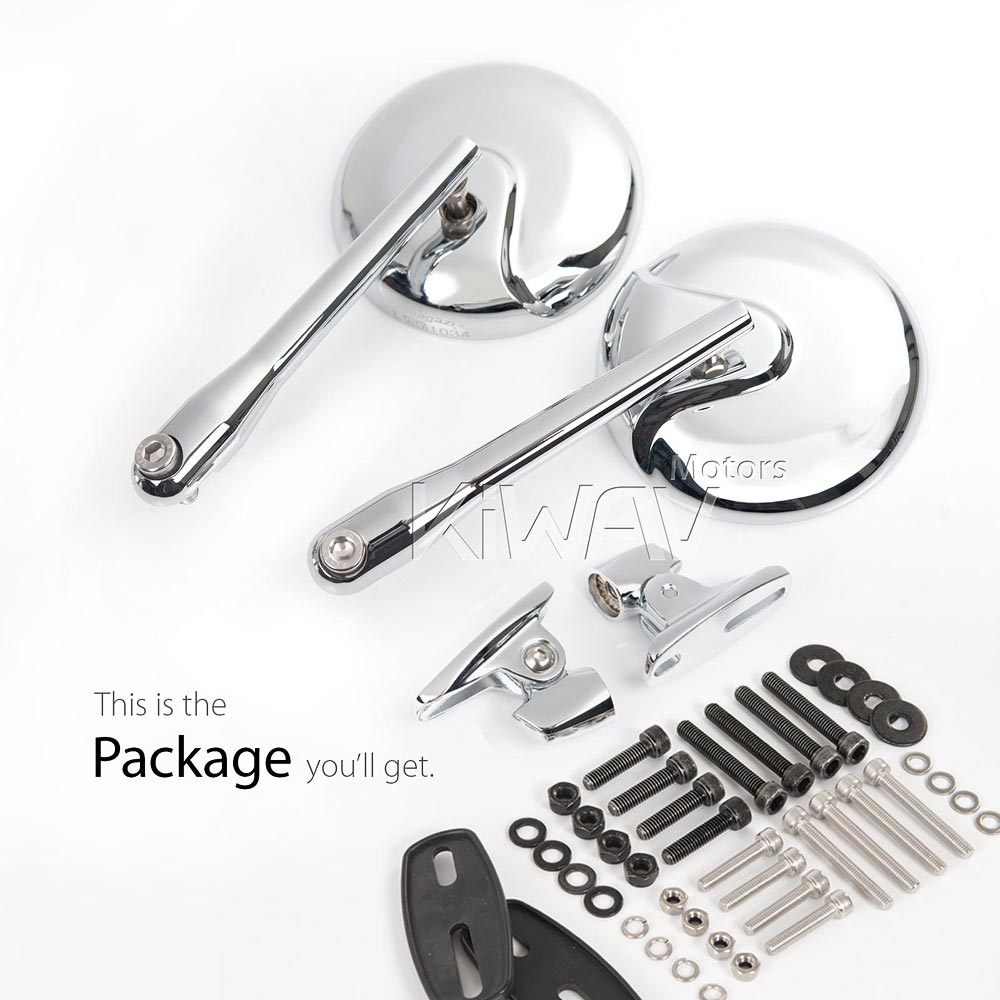

Highly adjustable (3 adjusting joints) - Package
A pair of mirrors (left hand / right hand),
adapter with toothed adjustment joint x 2 PCS,
rubber mounting gasket x 2 PCS,
M5 bolt 25 mm long x 4 PCS, M5 bolt 40 mm long x 4 PCS,
M5 nut x 4 PCS, big washer x 4 PCS, small washer x 4 PCS,
M6 bolt 25 mm long x 4 PCS, M6 bolt 40 mm long x 4 PCS,
M6 nut x 4 PCS, big washer x 4 PCS, small washer x 4 PCS
- Compatibility
Compatible for Ducati Panigale
Suitable for hole spacings C2C on the fairing from 26 mm to 55 mm mount with M5 bolts.
Instruction
How to install the mirrors?

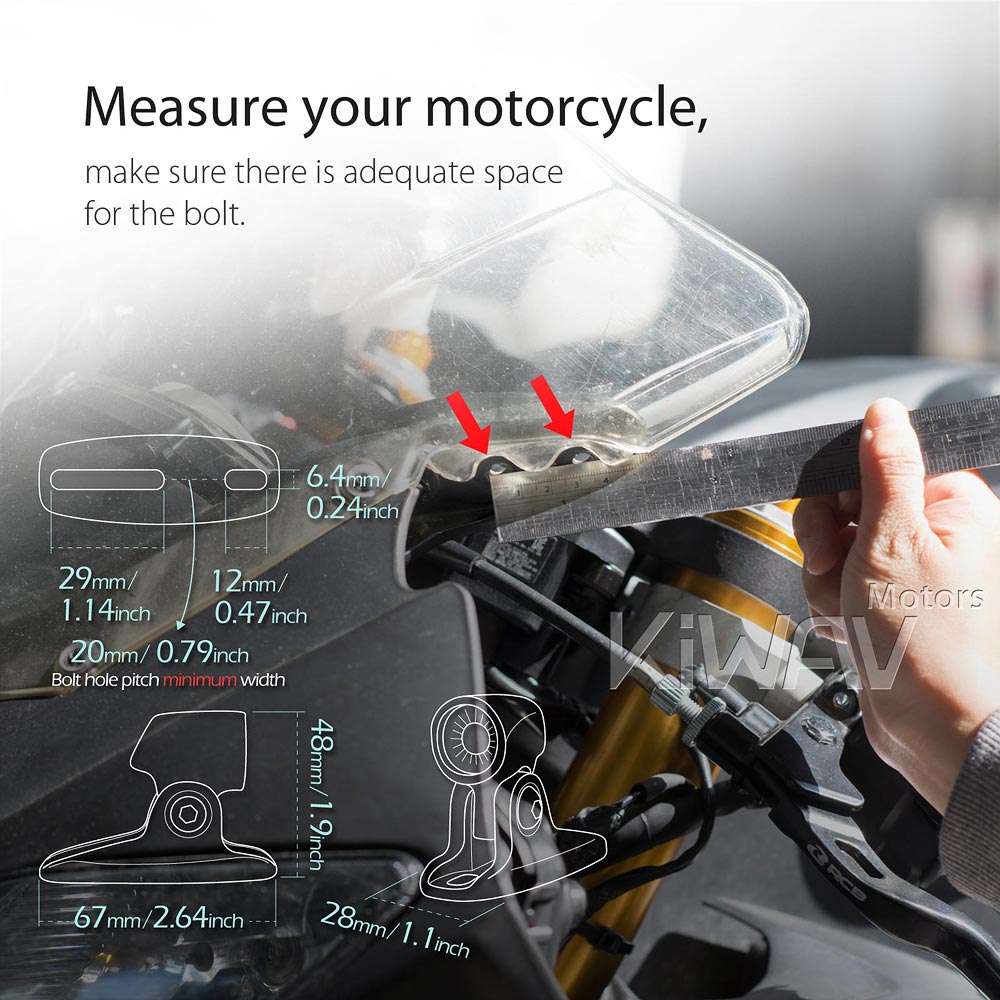

Measurement
*Please allow ±3% measuring deviation due to manual measurement.
