BSDII blind spot detection system with LED indicators for M8/M10 mirror bolts
Installation guide
- Features

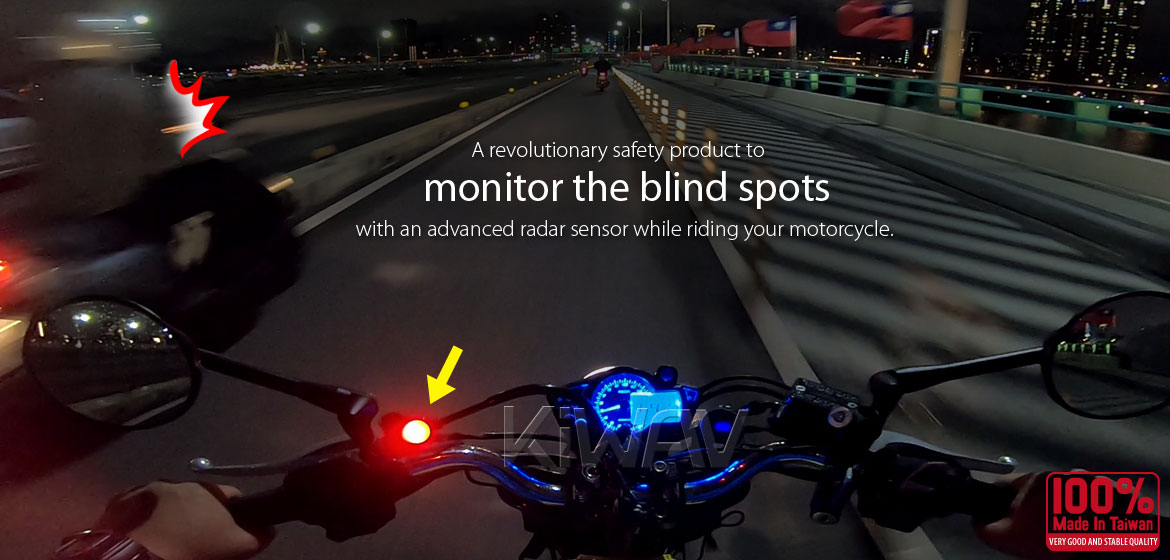

- A revolutionary safety product to monitor the blind spots with an advanced radar sensor while riding your motorcycle. Modern cars now have this technology and it only makes sense that your motorcycle does too.

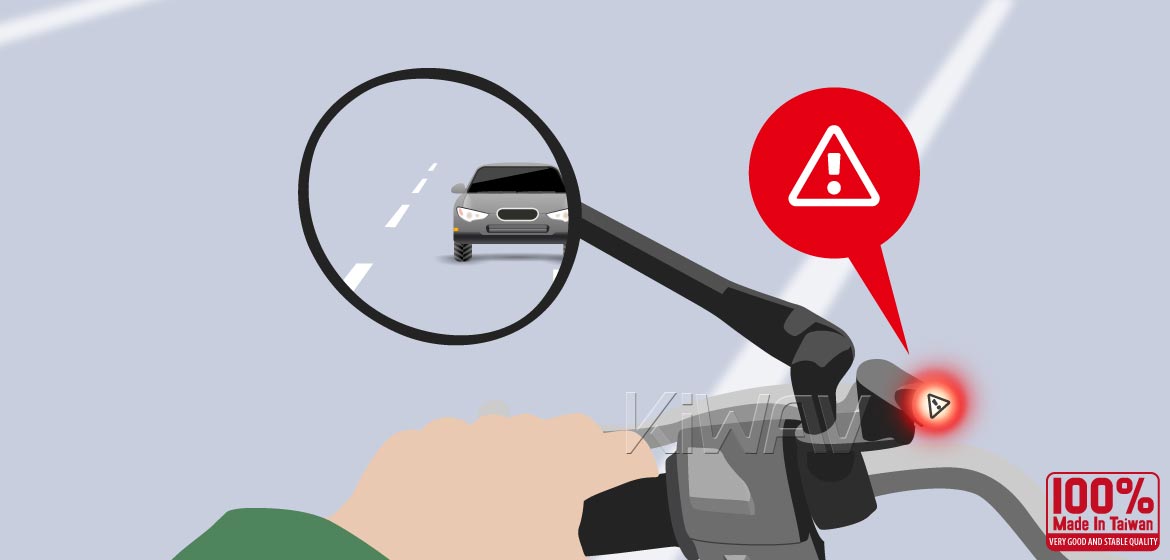

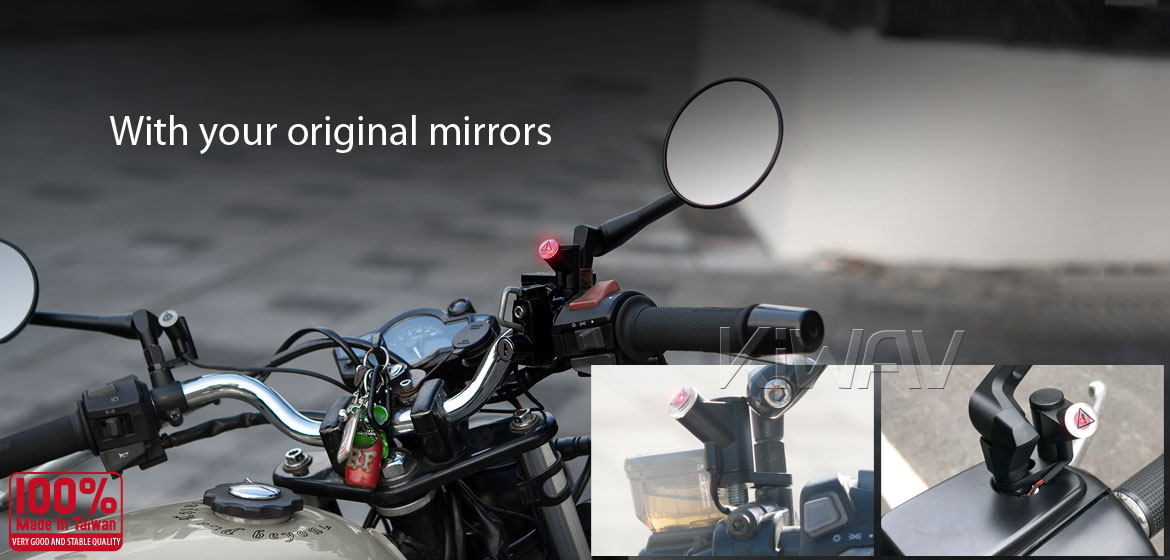

- LED indicator designed to attach to the both sides of the mirror frame in two ways, direct bolt-on or extend a mounting point with an extended bracket. It signals you when there is traffic coming into your blind spots. This will increase rider awareness to surrounding traffic conditions.
- With the Magazi BSD system 79 GHz short-range radar, you can ride with more confidence and safety. The warning zone of the system covers left and right adjacent lanes with up to 25m(82ft) range.
- The BSD system is automatically activated when the motorcycle is started.
- Easy installation - most motorcycles can be equipped in under an hour, with one radar sensor mounted to the license plate frame. Power for the system is from the bike's 12V acc power source. Then, indicators that light up are placed near the bike's mirrors.
- Material
BSD radar body: Hi-impact plastic housing
BSD radar bracket: Aluminum
BSD indicator: Aluminum
BSD indicator bracket: Steel - BSD SPEC
Operating frequency: 79 GHz

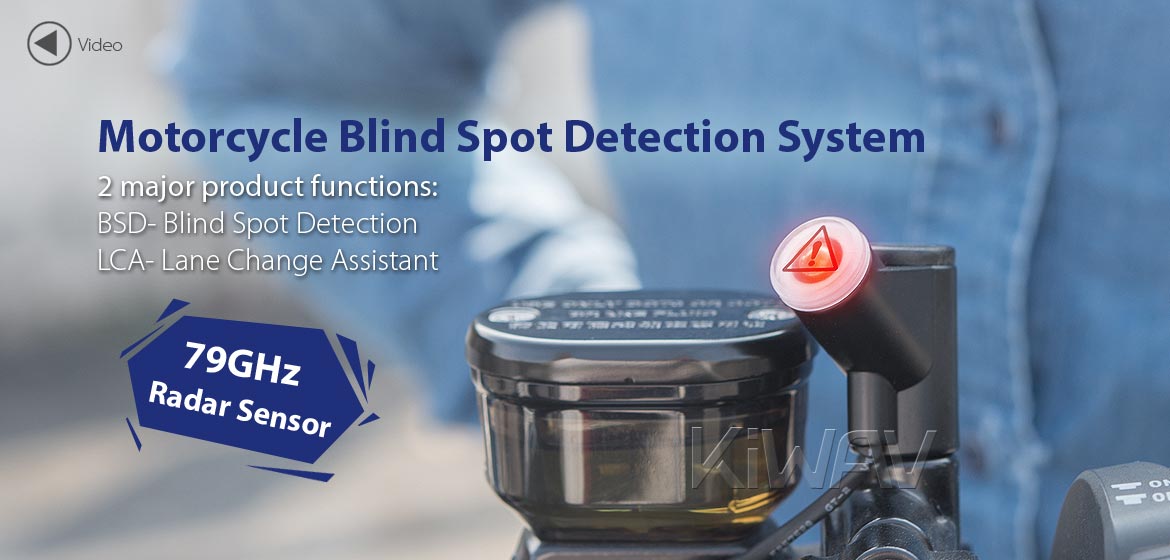

Multifunctional: BSD and LCA
Storage temperature: -40°C ~ +90°C
Operating temperature: -40°C ~ +85°C
Input voltage: 12V
Distance measurement: RCW 25m
Speed measurement: 5~+70 kph
Current consumption: 126mA @12V
Dust & waterproof compliant: IP67
Specifications: ISO 16750
Radiation regulations: FCC/NCC
- Weight
n.w.: 652 g./ 1.43 lbs. (pair),

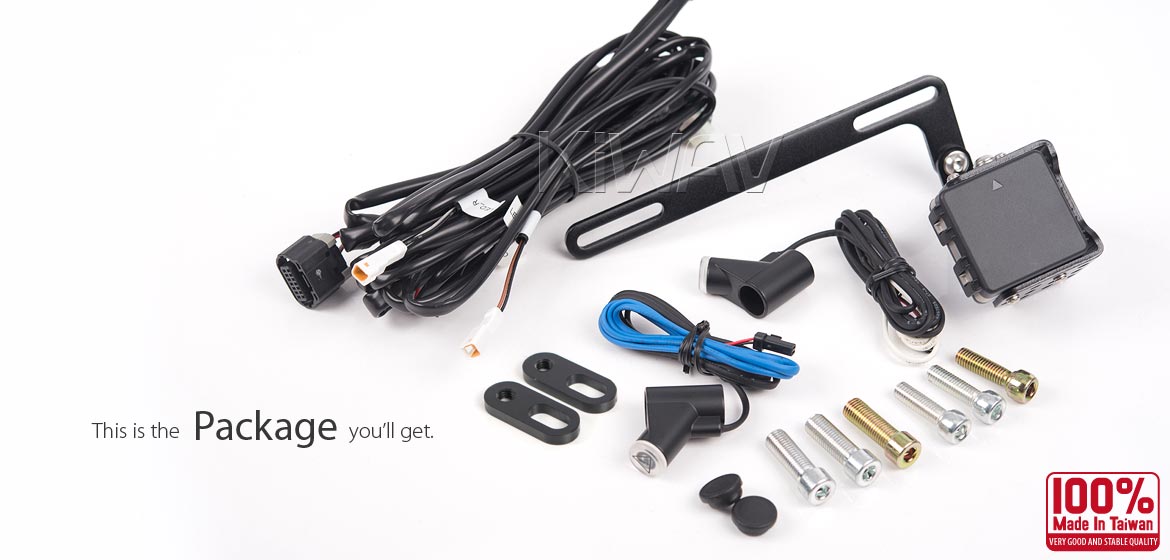

g.w.: 1000 g./ 2.2 lbs. (total package, packing inclusive) - Package
LED indicator x 2, bracket for indicator x 2,
10mm standard thread bolt x2, 10mm reverse thread bolt x1,
8mm standard thread bolt x2, 8mm reverse thread bolt x1, bolt cap x2,
BSD radar x 1, bracket for radar (L type) x 1, bracket for license plate x 1,
wire harness set x 1
- Compatibility
Direct bolt-on on mirror perch:
10mm(1.25 pitch): Universal fit for M10 mirror bolt motorcycles
8mm(1.25 pitch): Universal fit for M8 mirror bolt motorcycles and scooters
*Please check NOTES below.

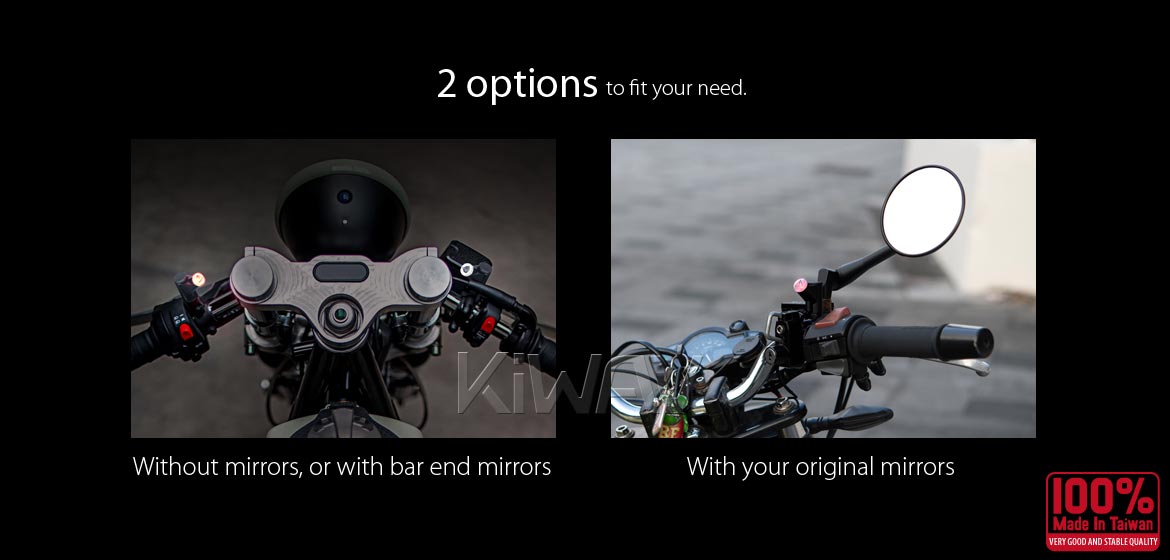

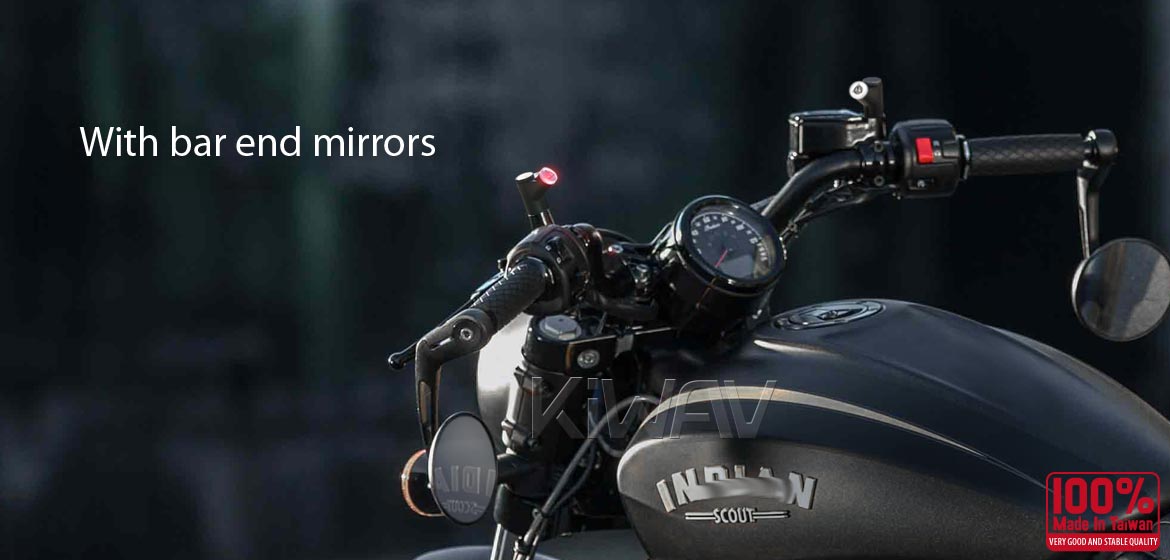

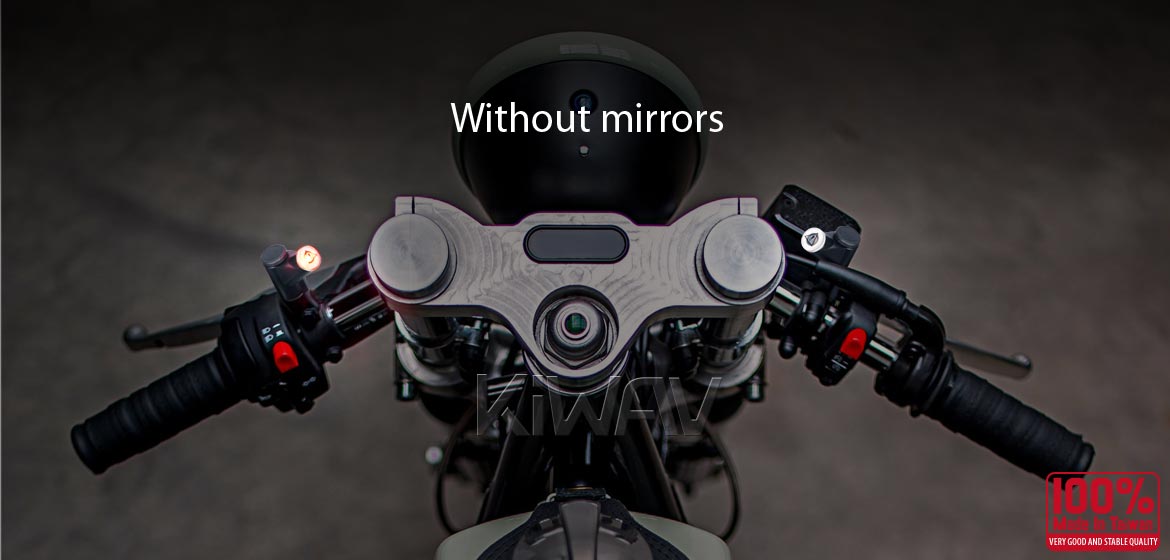

Apply the indicators under your mirrors with the extension brackets:
For any mirror bolt stud under 10mm.
*Please check NOTES below.
1. The exhaust placed too close to the license plate, the heat from exhaust gases will damage the radar sensor.
2. The license plate is not located directly behind the motorcycle.
3. The distance from the ground to the license plate is lower than 60 cm (23.62 inch) or higher than 80 cm (31.5 inch). (Adjust as needed based on your vehicle's specific situation.)
4. There is no space for the radar sensor on the both sides of the license plate. (you can download the template to measure and find out.)
The on road recording[layout]

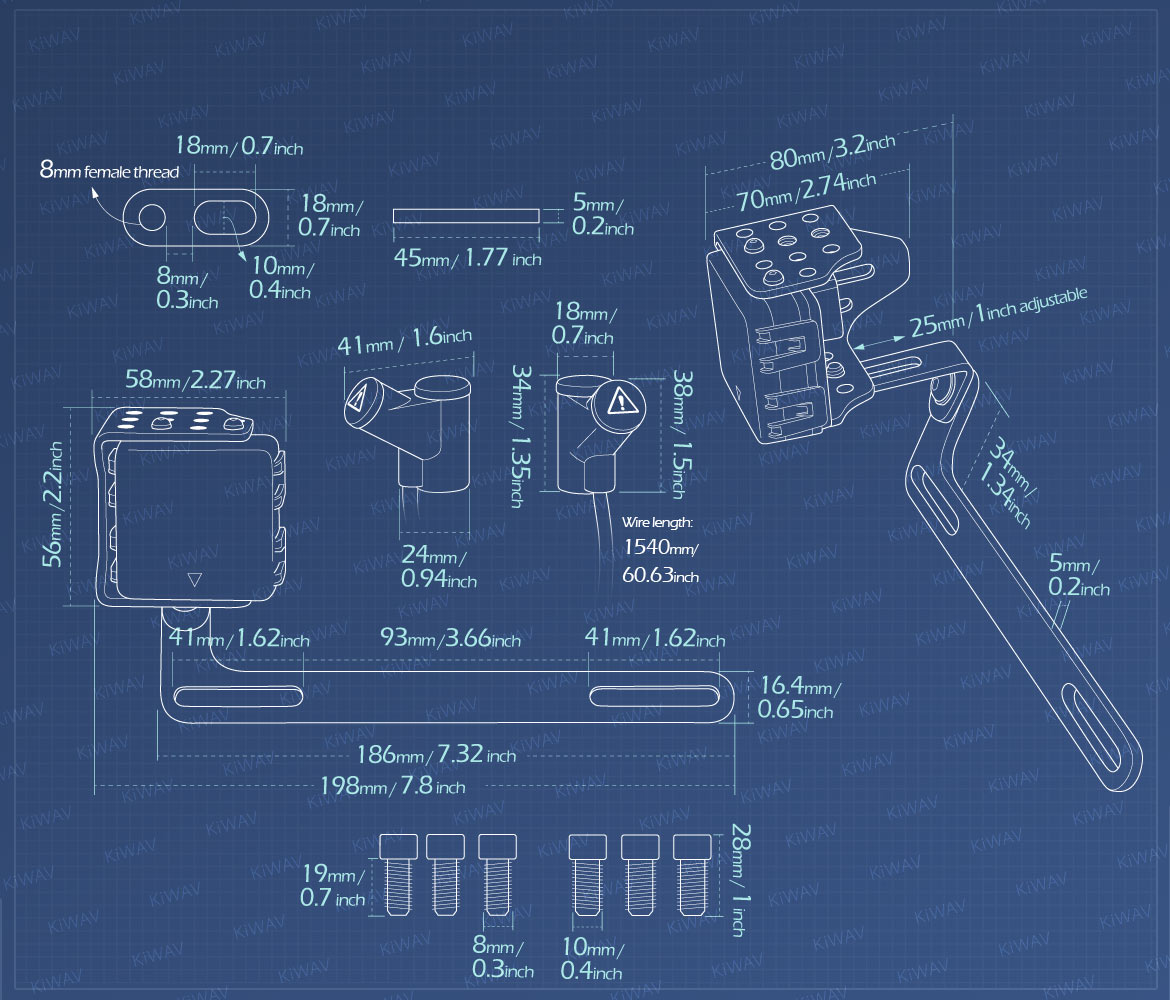

*Please allow ±3% measuring deviation due to manual measurement.
