Royal Rods RO-8202 connecting rod compatible with MAICO 400/440/490 79-82
Click to see:Dedicated Rod List
- Part Number: RO-8202
- Compatibility: Compatible for MAICO 400/440/490 1979~1982

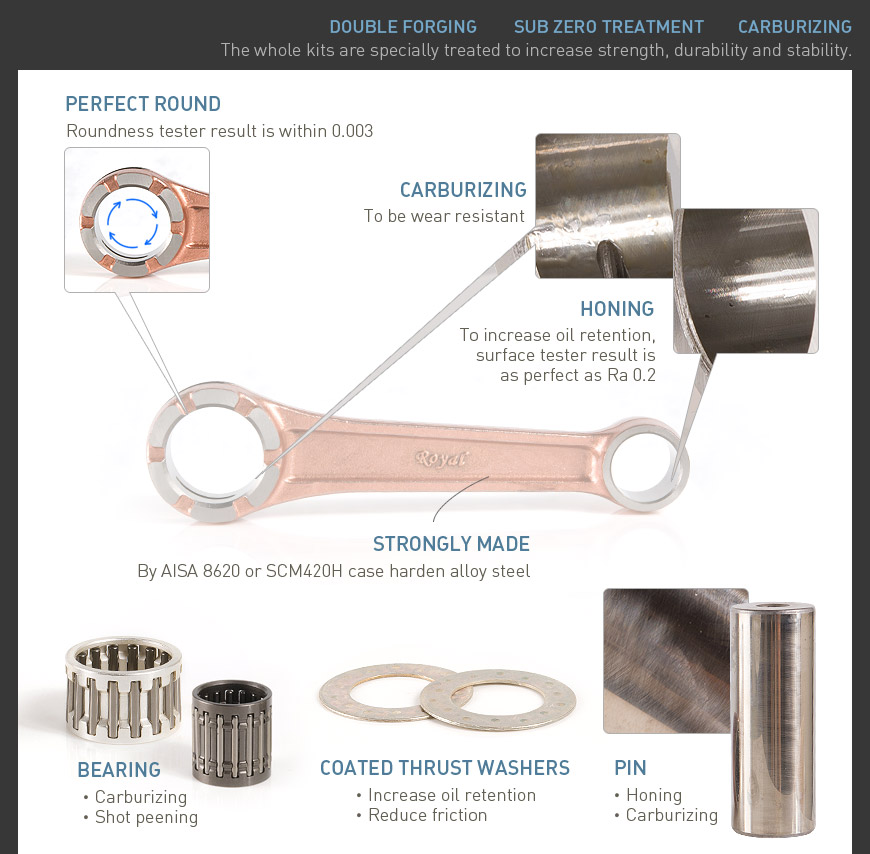

- Material: Double forged heavy duty AISA or SCM420H case harden chromoly

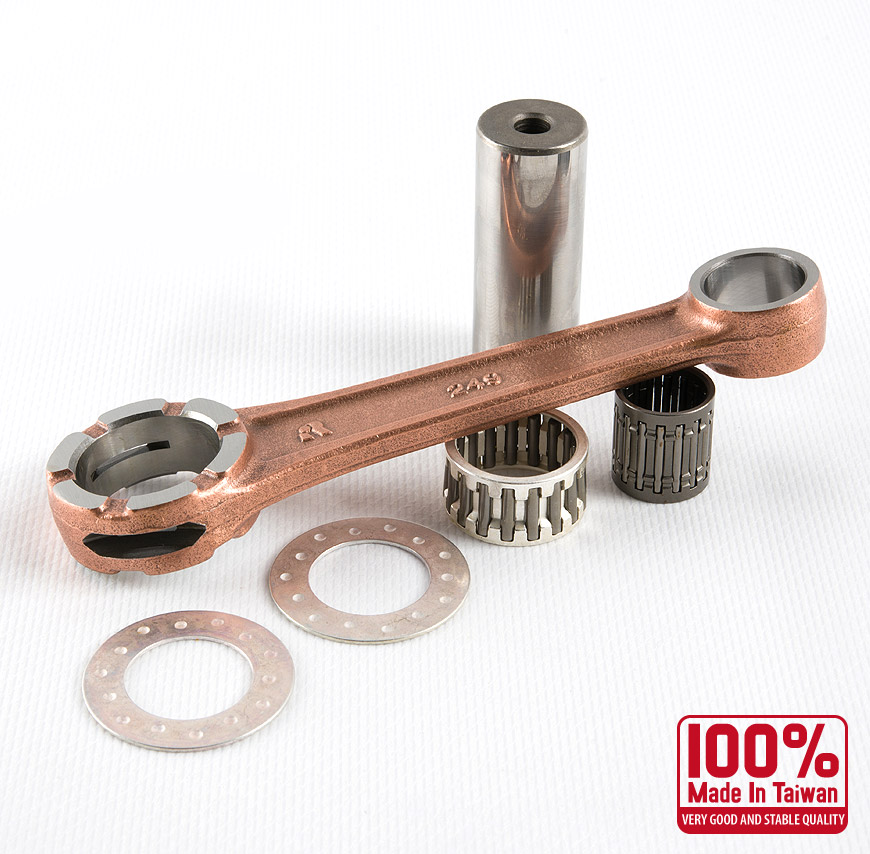

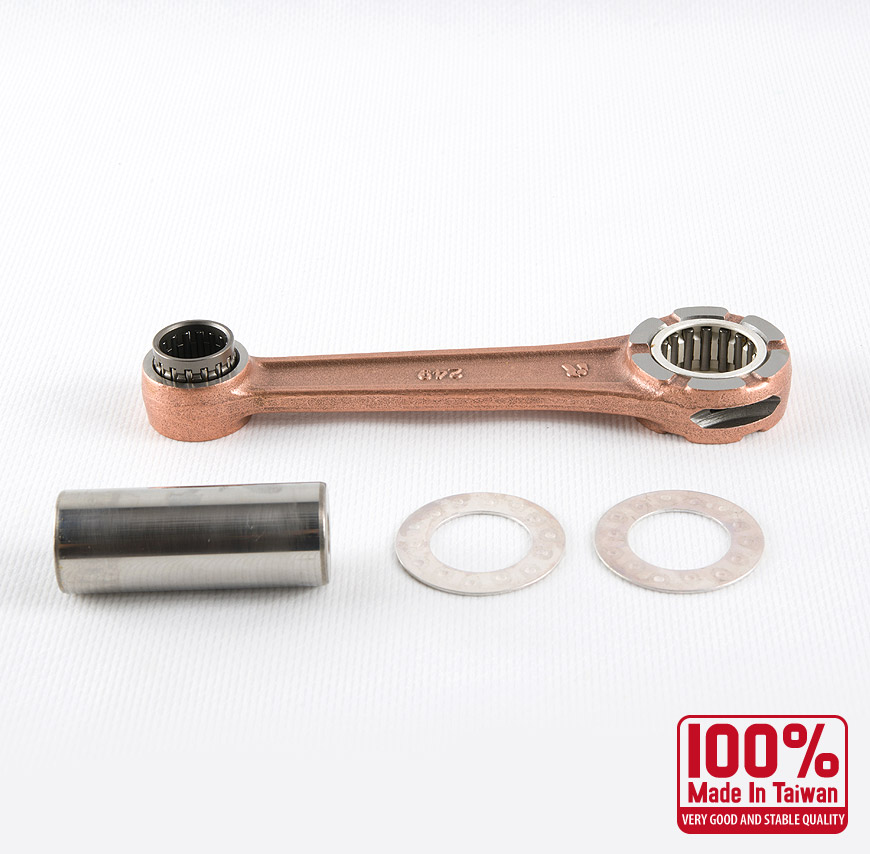

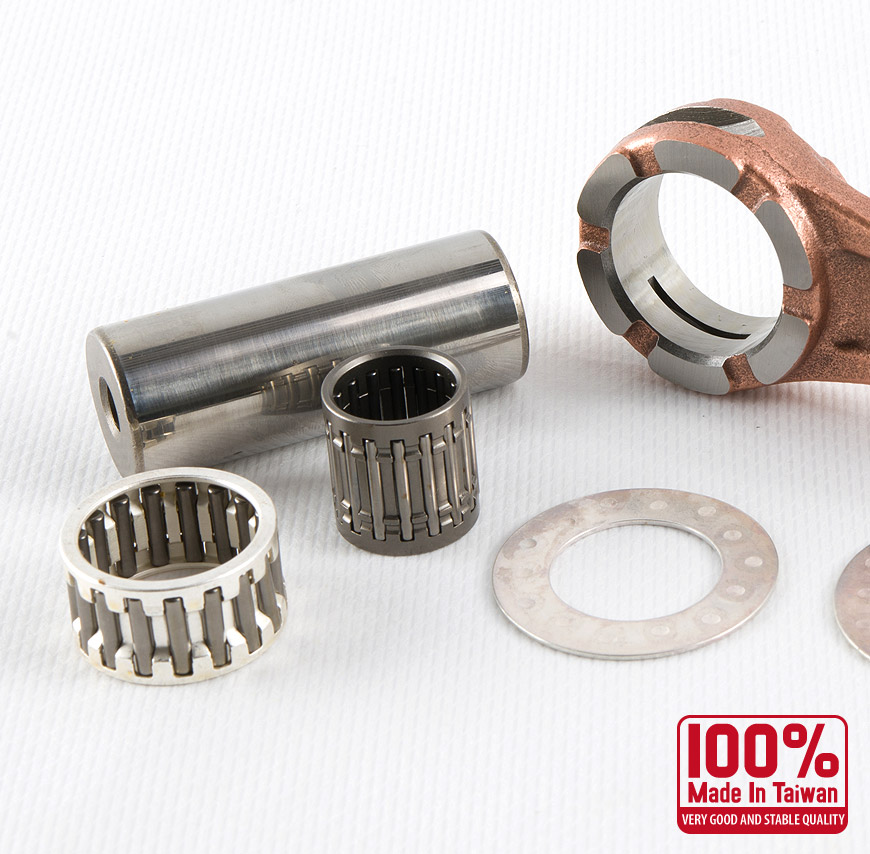

- Package: Forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
- Net Weight: 505g
- Total Weight: 550g (total package,included packing)
ITEM NO. | A | B | C | D | E | unit: mm |
RO-8202 | 31 | 22 | 137 | 17 | 17 | PIN: Ø25*64 WASHER: Ø25.2*Ø42*1 |
BIG END BEARING: 25*31*16.8 | ||||||
SMALL END BEARING: 18*22*23.6 |
