Motorcycle Mirrors Installation Guide

How to install a mirror on your bike? Not sure which bolt should you choose?

Here is a Video Tutorial for you!

How to install Classic bar end mirrors on your motorcycle

How to install a Magazi Classic bar end mirrors on your motorcycle?

1. Remove the handlebar end-caps from your handlebars. Locate the handlebar weights. These weights must be partially or completely removed to install the bar-end mirror.
2. Insert the mirror mounting-system in the ends of the handlebars.

Here is a Video Tutorial for you!


How to install 65N bar end mirrors on Harley

How to install a Magazi bar end mirrors on your Harley? Does it fit 1 inch handlebar?

Here is a Video Tutorial for you!

How to install 65N bar end mirrors on your motorcycle

How to install a Magazi bar end mirrors on your bike?

Here is a Video Tutorial for you!


How to install Magazi fog light mounting brackets on your motorcycle

How to install Magazi fog light mounting brackets on your motorcycle?

Here is a Video Tutorial for you!


How to install grips on your motorcycle /bike handlebar

How to install a grip on your handlebar?

here is a Video Tutorial for you!

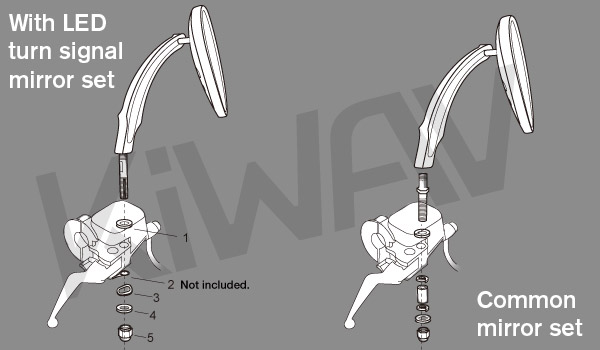

How to install mirrors on Harley

  1. Remove the old mirror and nut Retain the original internal tooth lock-washer.
  2. Install new mirror stem through hand control assembly.
  3. Install flat washer (1) on top of hand control assembly to stabilize mirror stem.
  4. Slide mirror power led wire (gray) through ground wire ring terminal (2) then install ring terminal on mirror stem.
  5. Slide mirror power lead wire (gray) through wire guard (3), then install wire guard on mirror stem.
  6. Install flat washer (4) from kit on mirror stem.
  7. Install acorn nut (5) on mirror stem.
  8. Tighten to 8-12 ftlbs (10.8-16.3 Nm). Do not over-tighten.
  9. Check mirror adjustment and reposition if necessary.
NOTE:
Be sure wire exiting mirror stem is positioned in wire guard so it does not get crushed by hardware.



KiWAV FLASH LED turn signal mirrors chrome for Harley Davidson     KiWAV Axe led turn signal black motorcycle mirrors for Harley Davidson     Chrome rear view mirrors Palm 5/16 inch EMARK for Harley davidson

More mirrors for Harley Davidson   More mirrors for Harley Davidson >>

How to install Axe series mirrors on Harley

  1. Remove the old mirror and nut.
  2. Retain the original internal tooth lock-washer.
  3. Install new mirror stem through hand control assembly.
  4. Install flat washer on top and bottom of hand control assembly to stabilize mirror stem.
  5. Tighten to 8-12 ftlbs (10.8-16.3 Nm). Do not over-tighten. Check mirror adjustment and reposition if necessary.
NOTE:
Be sure wire exiting mirror stem is positioned in wire guard so it does not get crushed by hardware.



KiWAV Axe LED turn signal black motorcycle mirrors for Harley Davidson



KiWAV Axe led turn signal black motorcycle mirrors for Harley Davidson     KiWAV Axe led turn signal chrome motorcycle mirrors for Harley Davidson
